Foster FD2-10 - Technical Data and Wiring; Wiring Diagram for Defrost Synchronization; Accessing Configuration Parameters

6

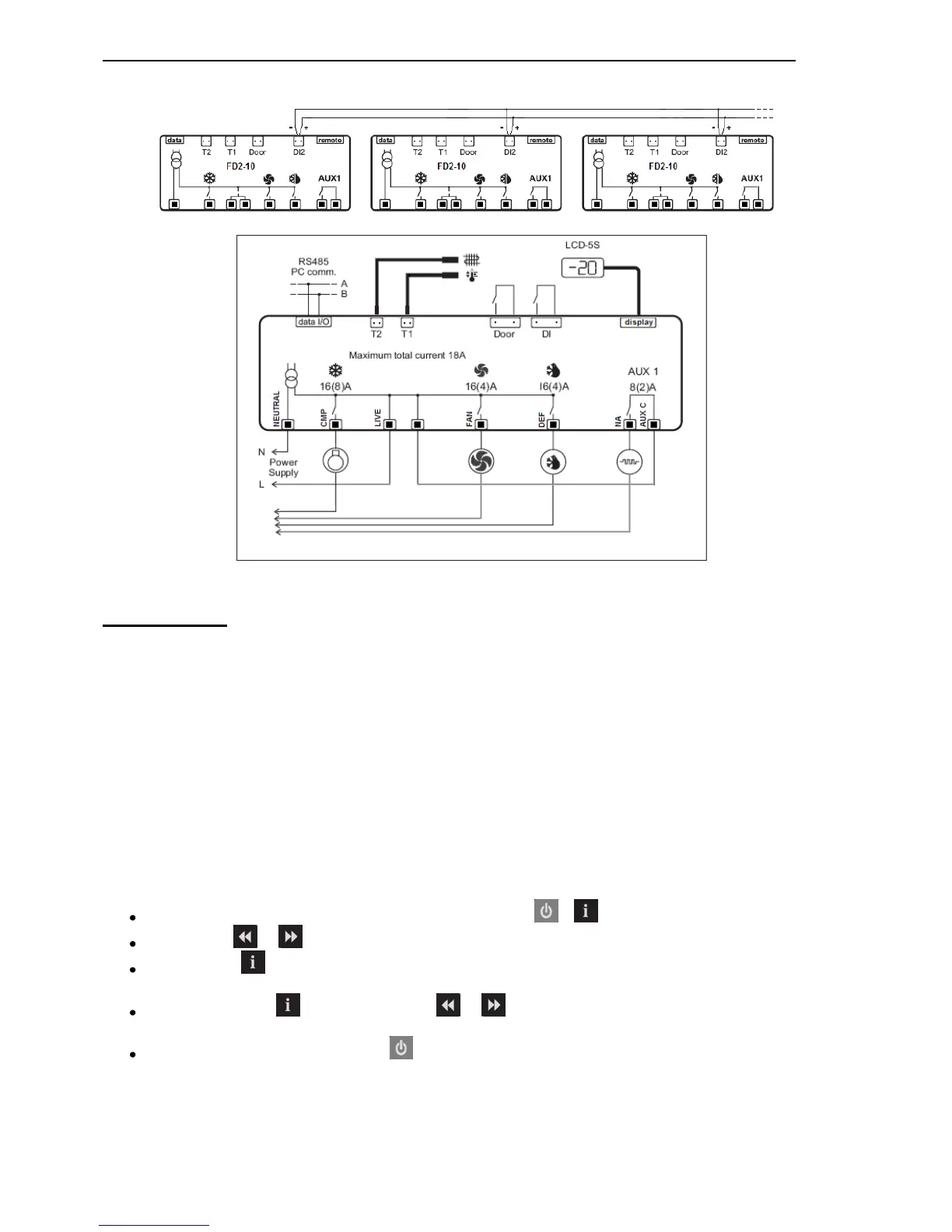

Parameter Setting Wiring Diagram for Synchronising Defrost Start and Termination
Technical Data
Power Supply
FD2-10 230Vac±10%, 50/60Hz, 3W
Relay Output
Compressor 16(8) A 240Vac
Defrost 16(4) A 240Vac
Evap. Fan 16(4) A 240Vac
Auxiliary Loads 1 8(2) A 240Vac
Input
NTC 10KΩ@25°C
Measurement Range
-50…120°C, -55…240°F
-50 / -9.9…19.9 / 80°C (NTC 10K Only)
Measurement Accuracy
<0.5°C within the measurement range
CE (Reference norms)
EN60730-1; EN60730-2-9
EN55022 (Class B)
EN50082-1
Configuration Parameters
To get access to the parameter configuration menu, press + for 5 seconds
With button or select the parameter to be modified.
Press button and hold briefly to display the value. On releasing the button the controller will then
show the next parameter.
By keeping button pressed, use button or to set the desired value. On releasing the button
the controller will store the amended value and then show the next parameter.
To exit from the setup, press button or wait for 30 seconds.
