Foster HR 410 - Electrical Connections

6
Electrical Connections

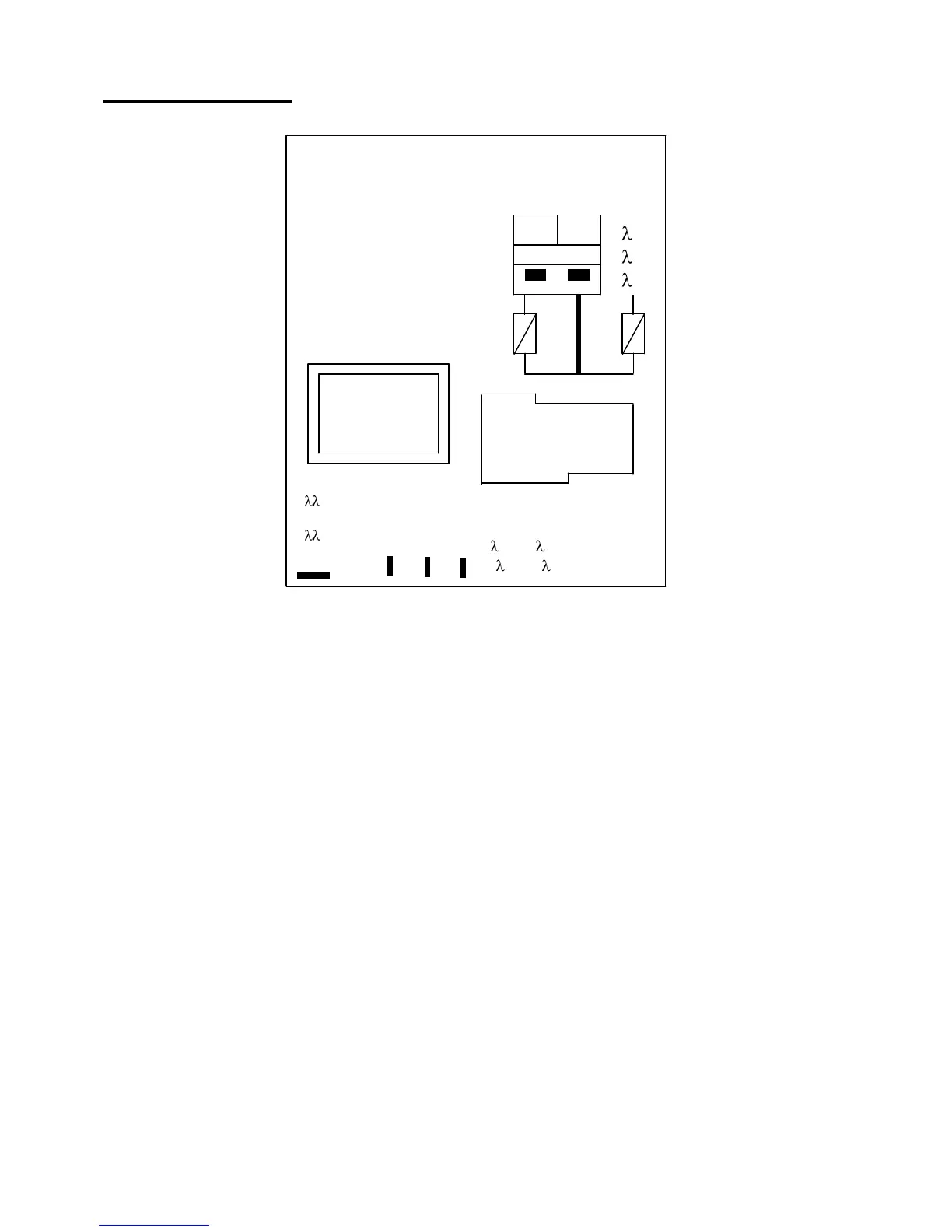

BIT 20 B11E Controller. (Foster part No. 00-554860)
Power Supply N = Neutral
Power Supply L = Live
L = Power in plus evaporator fan and light (if fitted)
live feed.
N = Neutral in.
L1 = Compressor feed.
L2 and L3 not used.
N1= Compressor, evaporator fan and light (if fitted) neutral.
N2 and N3 not used.

N3
N2
N1
POWER
N L L L L
1 2 3


