Fostex 280 - Safety Precautions; General Safety Guidelines

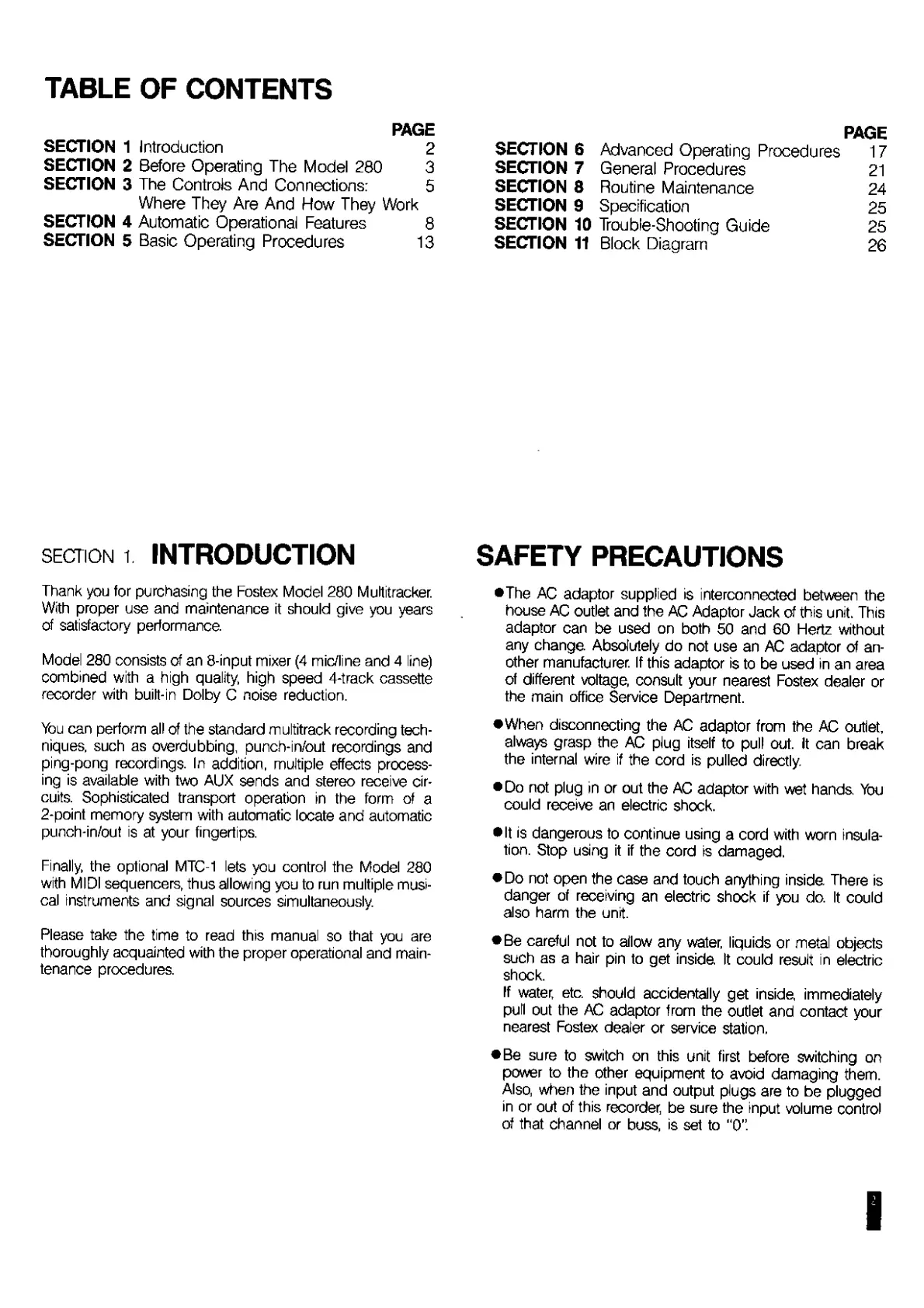

TABLE OF CONTENTS
mGE
SECTION 1 Introduction 2
SECTION 2 Before Operating The Model 280 3
SECTION 3 The Controls And Connections: 5
Where They Are And How They Work
SECTION 4 Automatic Operational Features 8
SECTION 5 Basic Operating Procedures 13
PAGE
SECTION 6
Advanced Operating Procedures
17
SECTION 7
General Procedures
21
SECTION 8
Routine Maintenance
24
SECTION 9
Specification
25
SECTION 10 Trouble-Shooting Guide
25
SECTION 11
Block Diagram
26
SECTION 1 . INTRODUCTION
Thank you for purchasing the Fostex Model 280 Multitracker.
With proper use and maintenance it should give you years
of satisfactory performance.
Model 280 consists of an 8-input mixer (4 mic/line and 4 line)
combined with a high quality, high speed 4-track cassette
recorder with built-in Dolby C noise reduction.
You can perform all of the standard multitrack recording tech¬
niques, such as overdubbing, punch-in/out recordings and
ping-pong recordings. In addition, multiple effects process¬
ing is available with two AUX sends and stereo receive cir¬
cuits. Sophisticated transport operation in the form of a
2-point memory system with automatic locate and automatic
punch-in/out is at your fingertips.
Finally, the optional MTC-1 lets you control the Model 280
with MIDI sequencers, thus allowing you to run multiple musi¬
cal instruments and signal sources simultaneously.
Please take the time to read this manual so that you are
thoroughly acquainted with the proper operational and main¬
tenance procedures.
SAFETY PRECAUTIONS
•The AC adaptor supplied is interconnected between the
house AC outlet and the AC Adaptor Jack of this unit. This
adaptor can be used on both 50 and 60 Hertz without
any change Absolutely do not use an AC adaptor of an¬
other manufacturer. If this adaptor is to be used in an area
of different voltage, consult your nearest Fostex dealer or
the main office Service Department.
•When disconnecting the AC adaptor from the AC outlet,
always grasp the AC plug itself to pull out. It can break
the internal wire if the cord is pulled directly.
•Do not plug in or out the AC adaptor with wet hands You
could receive an electric shock.
•It is dangerous to continue using a cord with worn insula¬
tion. Stop using it if the cord is damaged.
•Do not open the case and touch anything inside There is
danger of receiving an electric shock if you do. It could
also harm the unit.
•Be careful not to allow any water, liquids or metal objects
such as a hair pin to get inside It could result in electric
shock.
If water, etc. should accidentally get inside immediately
pull out the AC adaptor from the outlet and contact your
nearest Fostex dealer or service station.
•Be sure to switch on this unit first before switching on
power to the other equipment to avoid damaging them.
Also, when the input and output plugs are to be plugged
in or out of this recorder, be sure the input volume control
of that channel or buss, is set to "0".
