Fostex XR-7 User Manual

The words in square brackets [ ] refer to the printing on the front and rear panel.

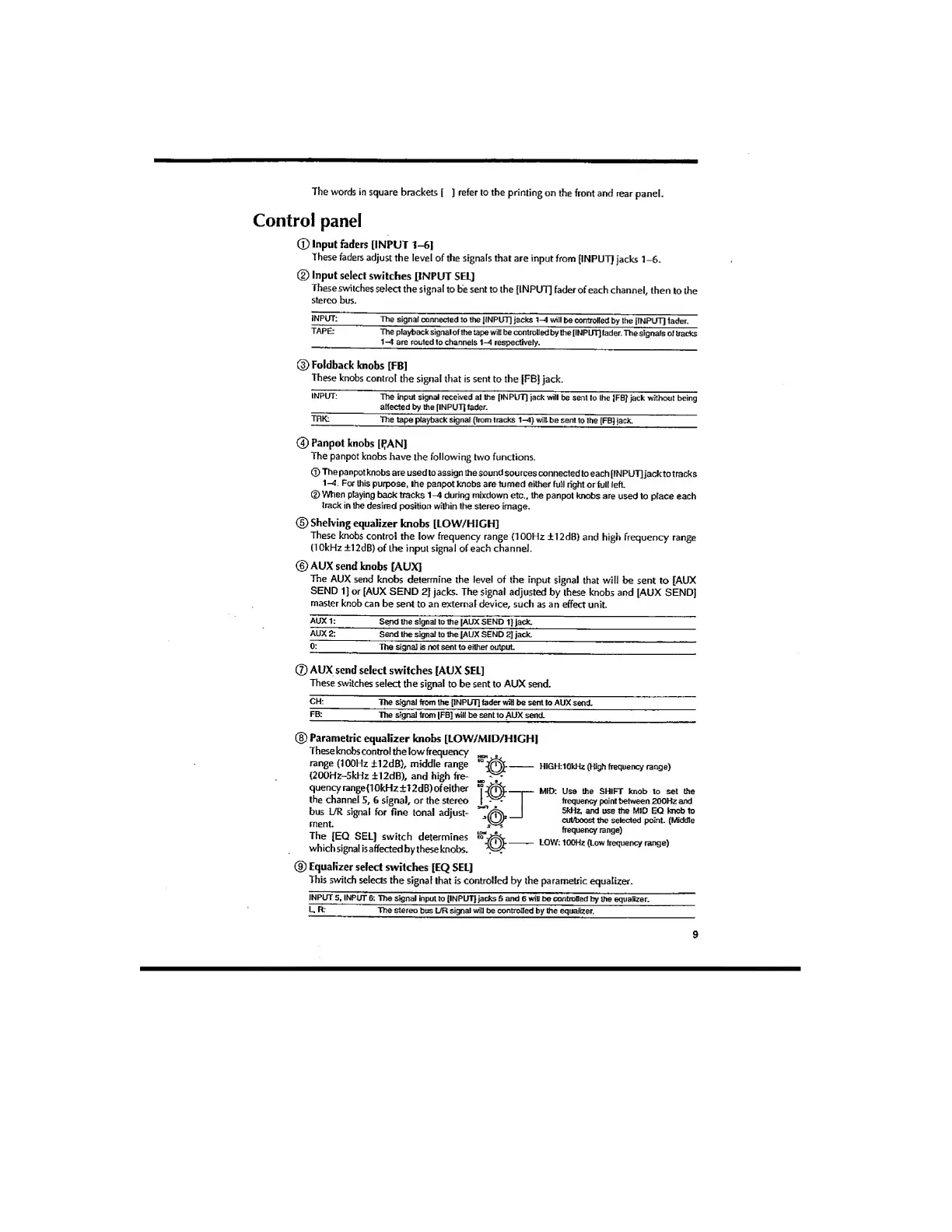

Control panel
© Input feders [INPUT 1-6]
These faders adjust the level of the signals that are input from (INPUT) jacks 1-6.
® Input select switches [INPUT SEL]
These switches select the signal to be sent to the [INPUT] fader of each channel, then to the
stereo bus.
INPUT: _ The signal connected to Ihe 1INPUT| jacks 1-4 w ill be controlled by the [INPUT] lader.
TAPE: The playback signal of the tape will be controlled by the [INPUT] tader. The signals of tracks
__ 1-4 are routed to channels respectivety. _
© Foldback knobs [FB]
These knobs control the signal that is sent to the [FB] jack.
INPUT: The input signal received al the [INPUT] jack will be sent to the [FB] jack without being
_ altected by the [INPUT] tader. _
TFIK: _ The tape playback signal (from tracks 1-4) will be s ent to Ihe [FB] jack.
© Panpot knobs [IfAN]
The panpot knobs have the following two functions.
©The panpot knobs are used to assign the sound sources connected to each [INPUT] jack to tracks
1-4. For this purpose, Ihe panpot knobs are turned either full right orfull left
CD When playing back tracks 1-4 during mixdovvn etc., the panpot knobs are used to place each
track in the desired position within the stereo image.
© Shelving equalizer knobs [LOW/FllCH]
These knobs control the low frequency range (100Hz +12dB) and high frequency range
(10kHz ±12dB) of the input signal of each channel.
© AUX send knobs [AUX]
The AUX send knobs determine the level of the input signal that will be sent to [AUX
SEND 1] or [AUX SEND 2] jacks. The signal adjusted by these knobs and [AUX SEND]
master knob can be sent to an external device, such as an effect unit.
AUX 1: Send the signal l^ttie [AUX SEND 1] jack.
AUX Z: Send the signal to the [AUX SEND Z] Jack.
0^_ The signal is not sent to either output. _
® AUX send select switches [AUX SEL]
These switches select the signal to be sent to AUX send.
CH: Tbe signal from the [INPUT] fader wiB be sent to AUX send.
FB:_The signal from |FB] will be sent to AUX send._
© Parametric equalizer knobs [LOW/MID/HIGH]
These knobs control the low frequency
range (IfXIHz ±12dB), middle range
(200Hz-5kHz ±12dB), and high fre¬
quency range (10kHz±12dB) of either
the channel S, 6 signal, or the stereo
bus LfR signal for fine tonal adjust¬
ment.
The [EQ SEL] switch determines
whichsignalisaffectedbytheseknobs.
HIGHilOkHz (High frequency range)
MID: Use the SHIFT knob to set the
frequency point between 200Kz and
5kHz, and use the MID EQ knob to
cut/boost the selected point. (Middle
frequency range)
LOW: 100Hz (Low frequency range)
® Equalizer select switches [EQ SEL]
This switch selects the signal that is controlled by the parametric equalizer.
INPUT 5, INPUT 6: The signal input to [INPUT] jacks 5 and 6 will be conlip lled by the equalizer.
U R:_The stereo bus L/R signal will be controlled by the equaTger.
9
