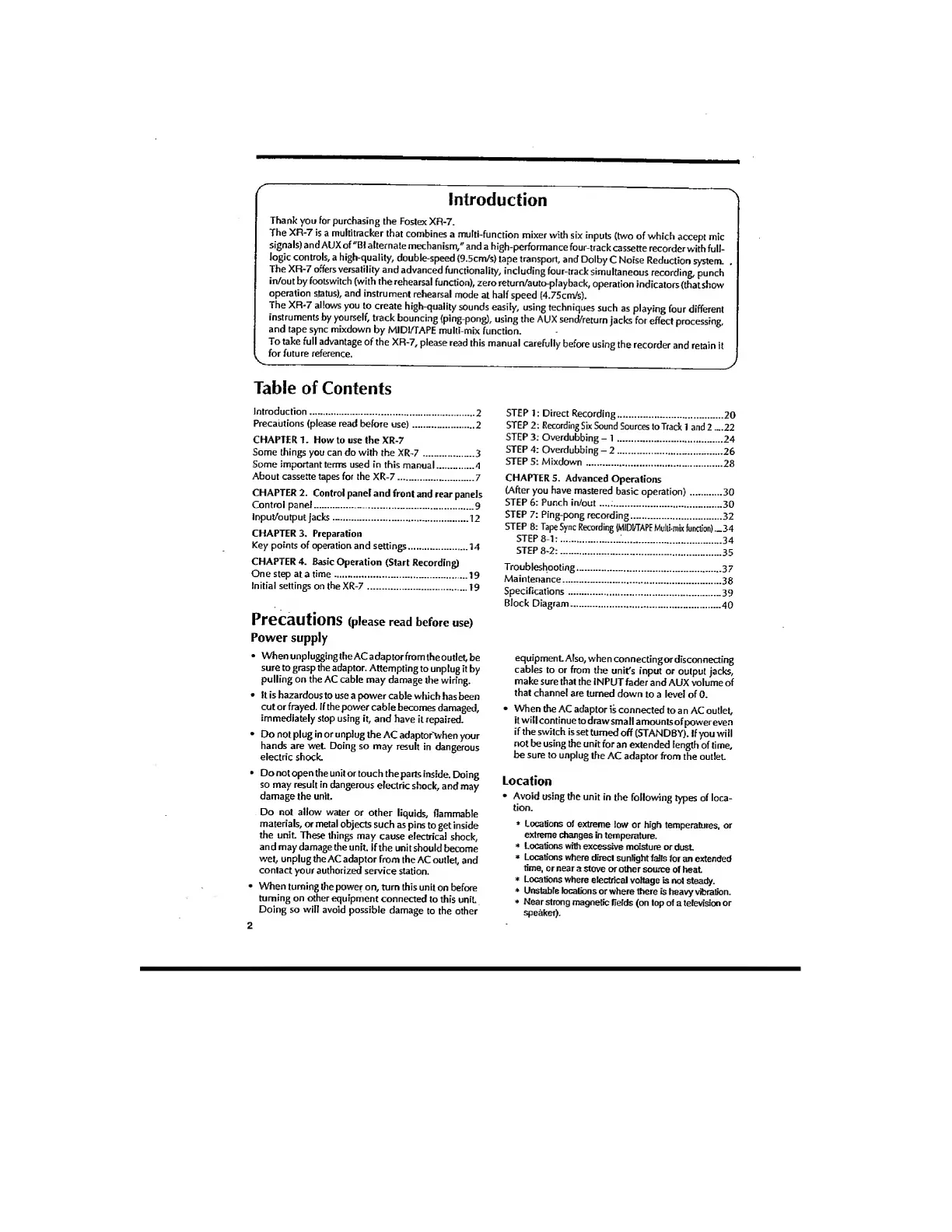

Introduction
Thank you for purchasing the Fostex XR-7.
The XR-7 is a muititracker that combines a multi-function mixer with six inputs (two of which accept mic
signals) and AUX of "B! alternate mechanism," and a high-performance four-track cassette recorder with full-
logic controls, a high-quality, double-speed (9.5cm/s} tape transport, and Dolby C Noise Reduction system.
The XR-7 offers versatility and advanced functionality, including four-track simultaneous recording, punch
in/out by footswitch (with the rehearsal function), zero return/auto-playback, operation indicators(thatshow
operation status), and instrument rehearsal mode at half speed [ 4 . 75 cm/s).
The XR-7 allows you to create high-quality sounds easily, using techniques such as playing four different
instruments by yourself, track bouncing (ping-pong), using the AUX sencVreturn jacks for effect processing,
and tape sync mixdown by MIDITTAPE multi-mix function.
To take full advantage of the XR-7, please read this manual carefully before using the recorder and retain it
for future reference.
Table of Contents
Introduction.2
Precautions (please read before use).2
CHAPTER 1. How to use the XR-7
Some things you can do with the XR-7. 3
Some important terms used in this manual.4
About cassette tapes for the XR-7. 7
CHAPTER 2. Control panel and front and rear panels
Control panel. 9
Input/output jacks. 1 2
CHAPTER 3, Preparation
Key points of operation and settings.14
CHAPTER 4. Basic Operation (Start Recording)
One step at a time.. 19
Initial settings on the XR-7.19
Pr6C3UtionS (please read before use)
Power supply
• when unplugging the AC adaptor from the outlet, be
sure to grasp the adaptor. Attempting to unplug it by
pulling on the AC cable may damage the wiring.
• It is hazardous to use a power cable which has been
cut or frayed. If the power cable becomes damaged,
immediately stop using it, and have it repaired.
• Do not plug in or unplug the AC adaptor'when your
hands are wet. Doing so may result in dangerous
electric shock.
• Do not open the unit or touch the parts inside. Doing
so may result in dangerous electric shock, and may
damage the unit.
Do not allow water or other liquids, flammable
materials, or metal objects such as pins to get inside
the unit. These things may cause electrical shock,
and may damage the unit. If the unit should become
wet, unplug the AC adaptor from the AC outlet, and
contact your authorized service station.
• When turning the power on, turn this unit on before
turning on other equipment connected to this unit.
Doing so will avoid possible damage to the other
STEP 1: Direct Recording.20
STEP 2: Recording Six Sound Sources lo Track 1 and 2 ....22
STEP 3; Overdubbing - 1 . 24
STEP 4; Overdubbtng - 2.26
STEP 5: Mixdown.28
CHAPTER 5. Advanced Operations
(After you have mastered basic operation).30
STEP 6 : Punch in/out....:.30
STEP 7: Ping-pong recording.32
STEP 8 : Tape Sync Recording (MIDI/TAPE Mulli-mix function) ....34
STEP 8-1;. 3 4
STEP 8-2:. 3 5
Troubleshooting. 3 7
Maintenance. 3 8
Specifications. 39
Block Diagram.40
equipment Also, when connectingor disconnecting
cables to or from the unit's input or output jacks,
make sure that the INPUT fader and AUX volume of
that channel are turned down to a level of 0 .
• When the AC adaptor is connected to an AC outlet,
it will continue todrawsmall amounts of power even
if the switch is set turned off (STANDBY). If you will
not be using the unit for an extended length of time,
be sure to unplug the AC adaptor from the outlet.
Location
• Avoid usitjg the unit in the following types of loca¬
tion.
* Locations of extreme low or high temperatures, or
extreme (Ganges in temperature.
* Locations with excessive moisture or dust
* Locations where direct sunlight falls for an extended
time, or near a stove or other source of heat
* Locations where electiical voltage is not steady.
» Unstable locations or where there is heavy vibration.
* Near strong magnetic fields (on Ic^j of a television or
speaker).
2
