Fostex XR-7 User Manual

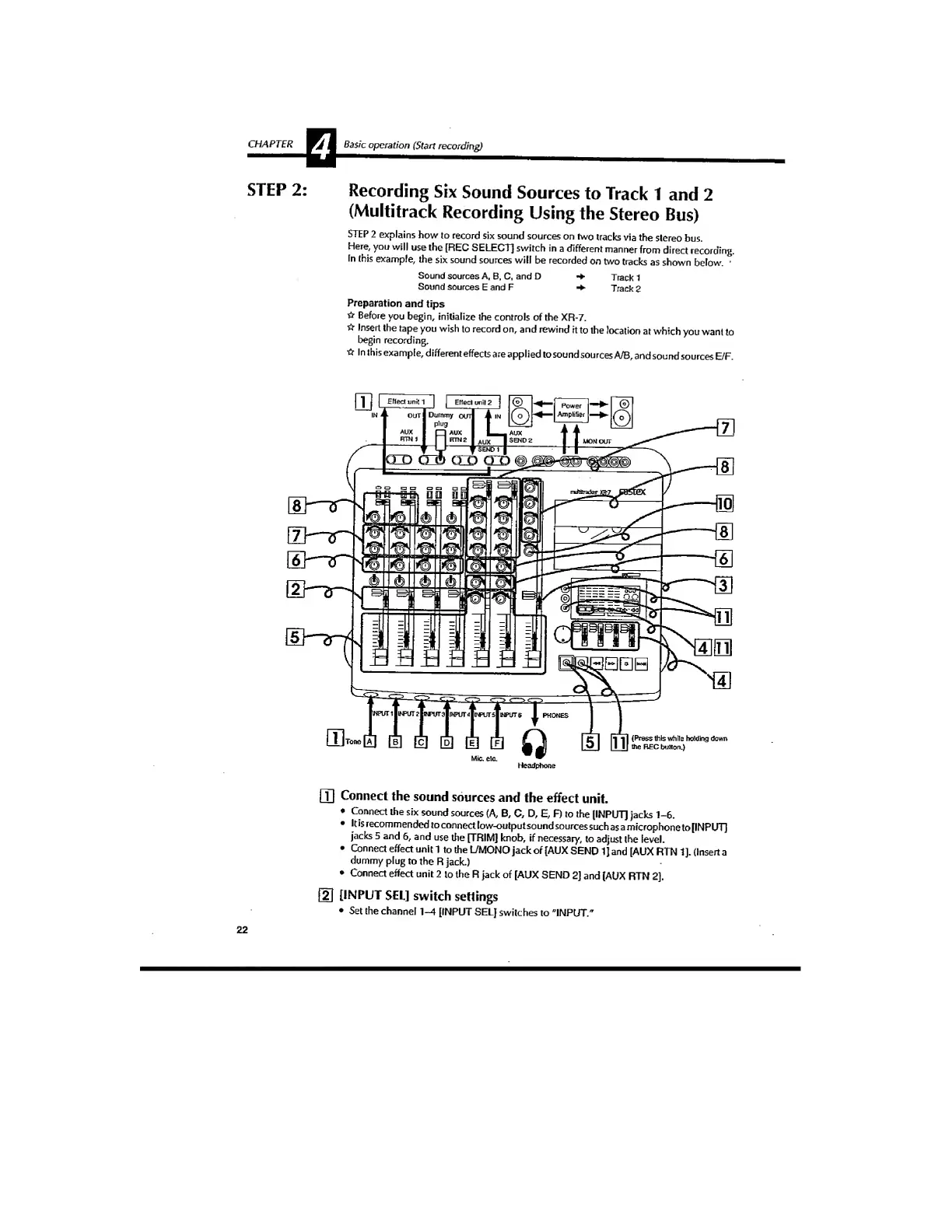

STEP 2: Recording Six Sound Sources to Track 1 and 2
(Multitrack Recording Using the Stereo Bus)
STEP 2 explains how to record six sound sources on two tracks via the stereo bus.
Here, you will use the [REC SELECT] switch in a different manner from direct recording.
In this example, the six sound sources will be recorded on two tracks as shown below. ■
Sound sources A, B. C, and D •+ ■ Track 1
Sound sources E and F Track 2
Preparation and tips
* Before you begin, initialize the controls of the XR-7.
☆ Insert the tape you wish to record on, and rewind it to the location at which you want to
begin recording,
☆ In this example, different effects are applied to sound sources A/B, and sound sources E/F.
Headphone
rn Connect the sound sources and the effect unit.
• Connect the six sound sources (A, B, C, D, E, R to the (INPUT) jacks 1-6.
• It is recommended to connect low-output sound sources such as a microphone to [INPUT]
jacks 5 and 6, and use the [TRIM] knob, if necessary, to adjust the level.
• Connect effect unit 1 to the LTMONO jack of [AUX SEND 1 ] and [AUX RTN 1 ]. (Insert a
dummy plug to the R jack.)
• Connect effect unit 2 to the R jack of [AUX SEND 2 ] and (AUX RTN 2].
[INPUT SEL] switch settings
• Set the channel 1-4 [INPUT SEL] switches to "INPUT."
22
