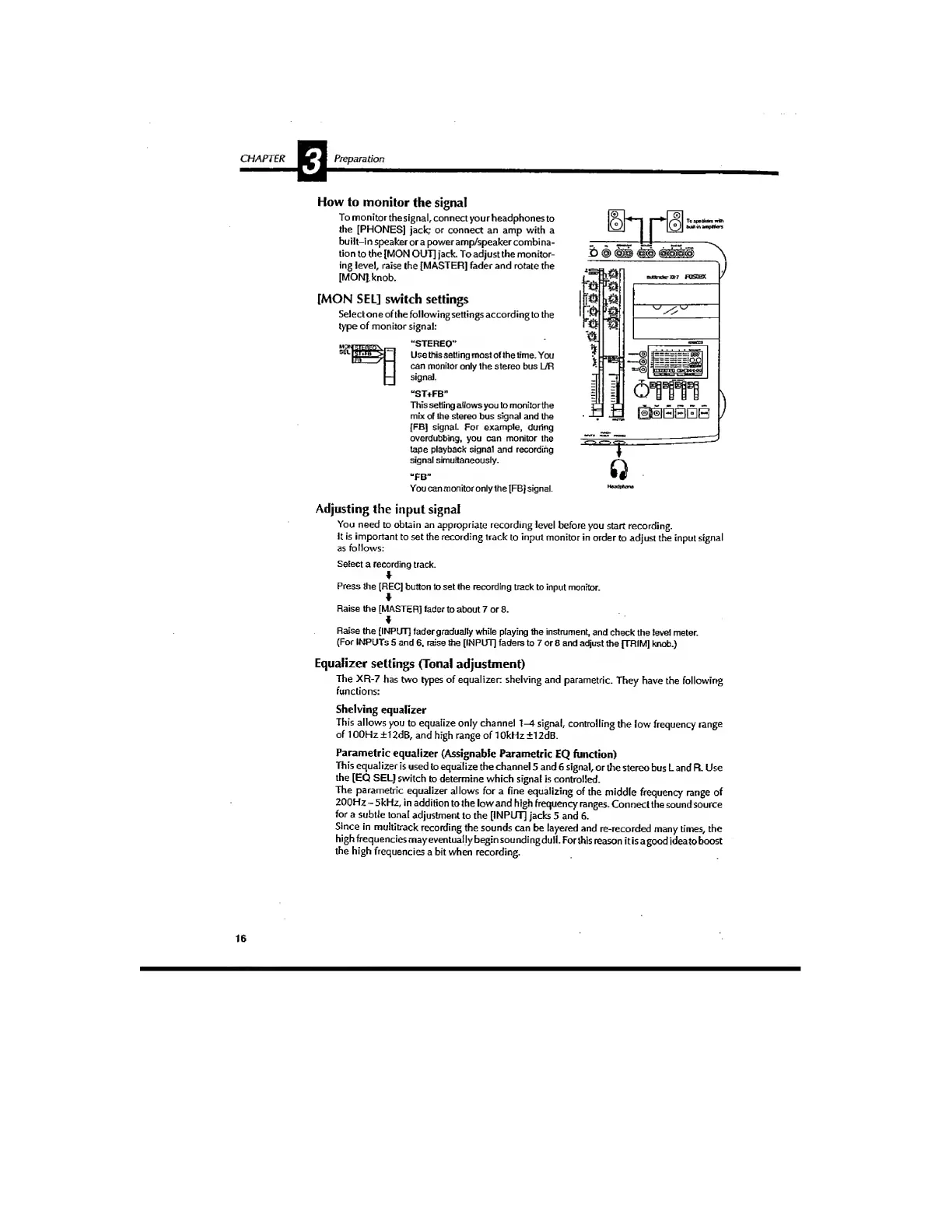

CHAPTER
Prepara^on
How
to
monitor
the
signal
To
monitor
the
signal,
connect
your
headphones
to
the
[PHONES]
jack;
or
connect
an
amp
with
a
builMn
speaker
or
a
power
amp/speaker
combina¬
tion
to
the
[MON
OUT]
jack.
To
adjust
the
monitor¬
ing
level,
raise
the
[MASTER]
fader
and
rotate
the
[MONj.knob.
[MON
SEL]
switch
settings
Select
one
ofthe
following
settings
according
to
the
type
of
monitor
signal:
“STEREO”
Use
this
setting
most
of
the
time.
You
can
monitor
only
the
stereo
bus
L7R
signal.
“ST+FB”
This
setting
allows
you
to
monitorthe
mix
of
the
stereo
bus
signal
and
the
[FB]
signal.
For
example,
during
overdubbing,
you
can
monitor
the
tape
playback
signal
and
recording
signal
simultaneously.
“FB"
You
can
monitor
only
the
[FB]
signal.
Adjusting
the
input
signal
You
need
to
obtain
an
appropriate
recording
level
before
you
start
recording.
it
is
important
to
set
the
recording
track
to
input
monitor
in
order
to
adjust
the
input
signal
as
follows:
Select
a
recording
track.
♦
Press
the
[REC]
button
to
set
the
recording
track
to
input
monitor.
4
Raise
the
[MASTER]
fader
to
about
7
or
8,
♦
Raise
the
[INPUT]
fader
gradually
while
playing
the
instalment,
and
check
the
level
meter.
(For
INPUTS
5
and
6,
raise
the
[INPUT]
faders
to
7
or
8
and
adjust
the
[TRIM]
knob.)
Equalizer
settings
(Tonal
adjustment)
The
XR-7
has
two
types
of
equalizer:
shelving
and
parametric.
They
have
the
following
functions:
Shelving
equalizer
This
allows
you
to
equalize
only
channel
1—4
signal,
controlling
the
low
frequency
range
of
100Hz
±12dB,
and
high
range
of
10kHz
±12dB.
Parametric
equalizer
(Assignable
Parametric
EQ
function)
This
equalizer
is
used
to
equalize
the
channel
5
and
6
signal,
or
the
stereo
bus
L
and
R.
Use
the
[EQ
SEL]
switch
to
determine
which
signal
is
controlled.
The
parametric
equalizer
allows
for
a
fine
equalizing
of
the
middle
frequency
range
of
200Hz
-
5kHz,
in
addition
to
the
low
and
high
frequency
ranges.
Connect
the
sound
source
for
a
subtle
tonal
adjustment
to
the
[INPUT]
jacks
5
and
6.
Since
in
multitrack
recording
the
sounds
can
be
layered
and
re-recorded
many
times,
the
high
frequencies
may
eventually
begin
soundingduli.
Forthis
reason
it
is
a
good
idea
to
boost
the
high
frequencies
a
bit
when
recording.
16
