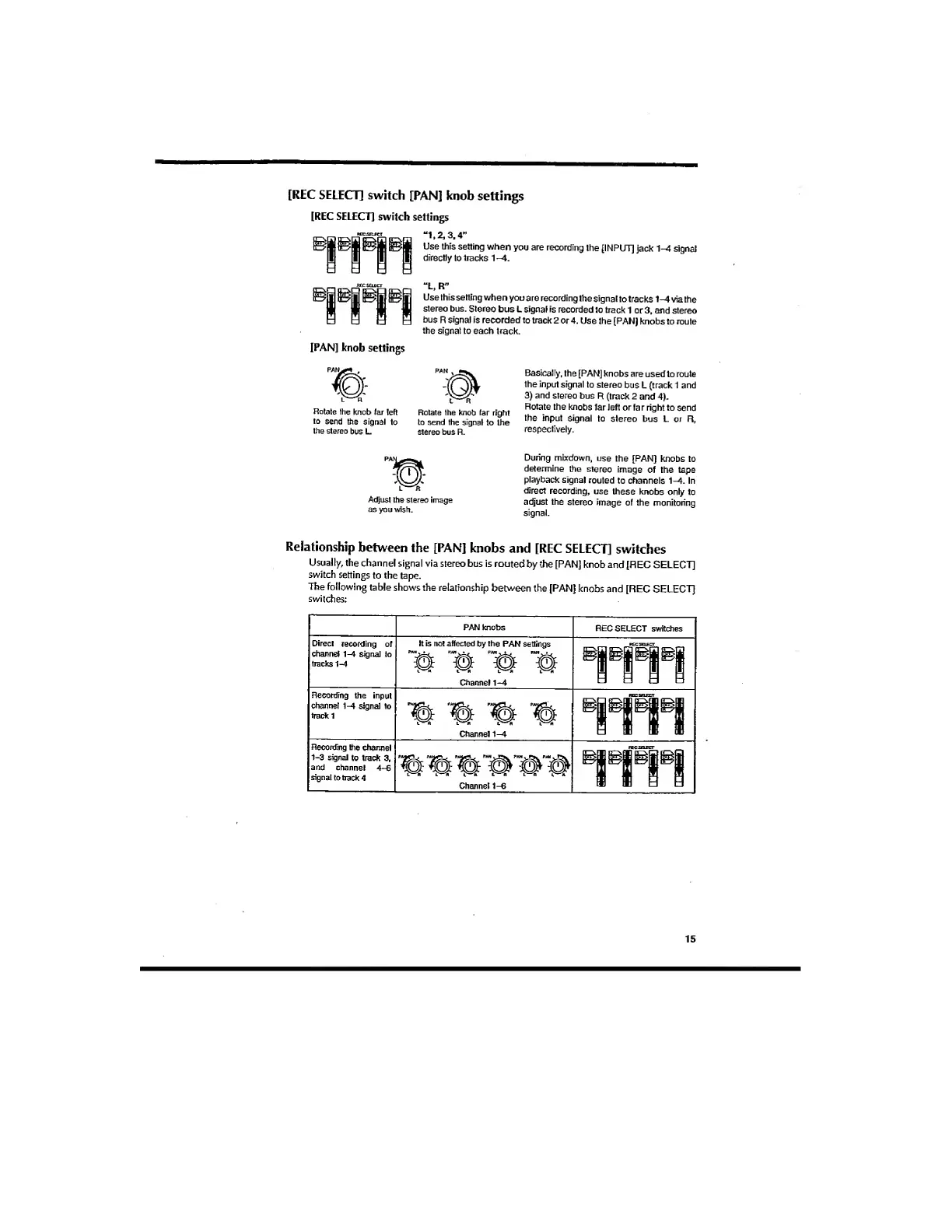

[REC SELECT] switch [PAN] knob settings
[REC SELECT] switch settings
“ 1 , 2 , 3 , 4 ”
Use this setting when you are recording the [INPUT] jack 1-4 signal
directly to tracks 1-4.
“L, R"
Use this setting when you are recording the signal to tracks 1-4 via the
stereo bus. Stereo bus L signal is recorded to track 1 or 3. and stereo
bus R signal is recorded to track 2 or 4. Use the [PAN) knobs to route
the signal to each track.
[PAN] knob settings
Rotate the knob far left Rotate the knob far right
to send the signal to to send the signal to the
the stereo bus L stereo bus R.
Basically, the [PAN] knobs are used to route
the input signal to stereo bus L (track 1 and
3) and stereo bus R (track 2 and 4).
Rotate the knobs far left or far right to send
the input signal to stereo bus L or R,
respectively.
Adjust the stereo image
as you wish.
During mixdown, use the [PAN] knobs to
determine the stereo image of the tape
playback signal routed to channels 1-4. In
direct recording, use these knobs only to
adjust the stereo image of the monitoring
signal.
Relationship between the [PAN] knobs and [REC SELECT] switches
Usually, the channel signal via stereo bus is routed by the [PAN] knob and [REC SELECT]
switch settings to the tape.
The following table shows the relationship between the [PAN] knobs and [REC SELECT]
switches:
PAN knobs
REC SELECT swKdies
Direct recording ol
channel 1-4 signal to
tracks 1-4
1
■ ilS^
1
■ i
S^^bS
J
Recording the input
channel 1-4 signal to
track 1
Ijjs!
M
g
1
j^Hi
J
Recording the channel
1-3 signal to track 3,
and channel 4-6
signal to back 4
■ ji|>
1
1
15
