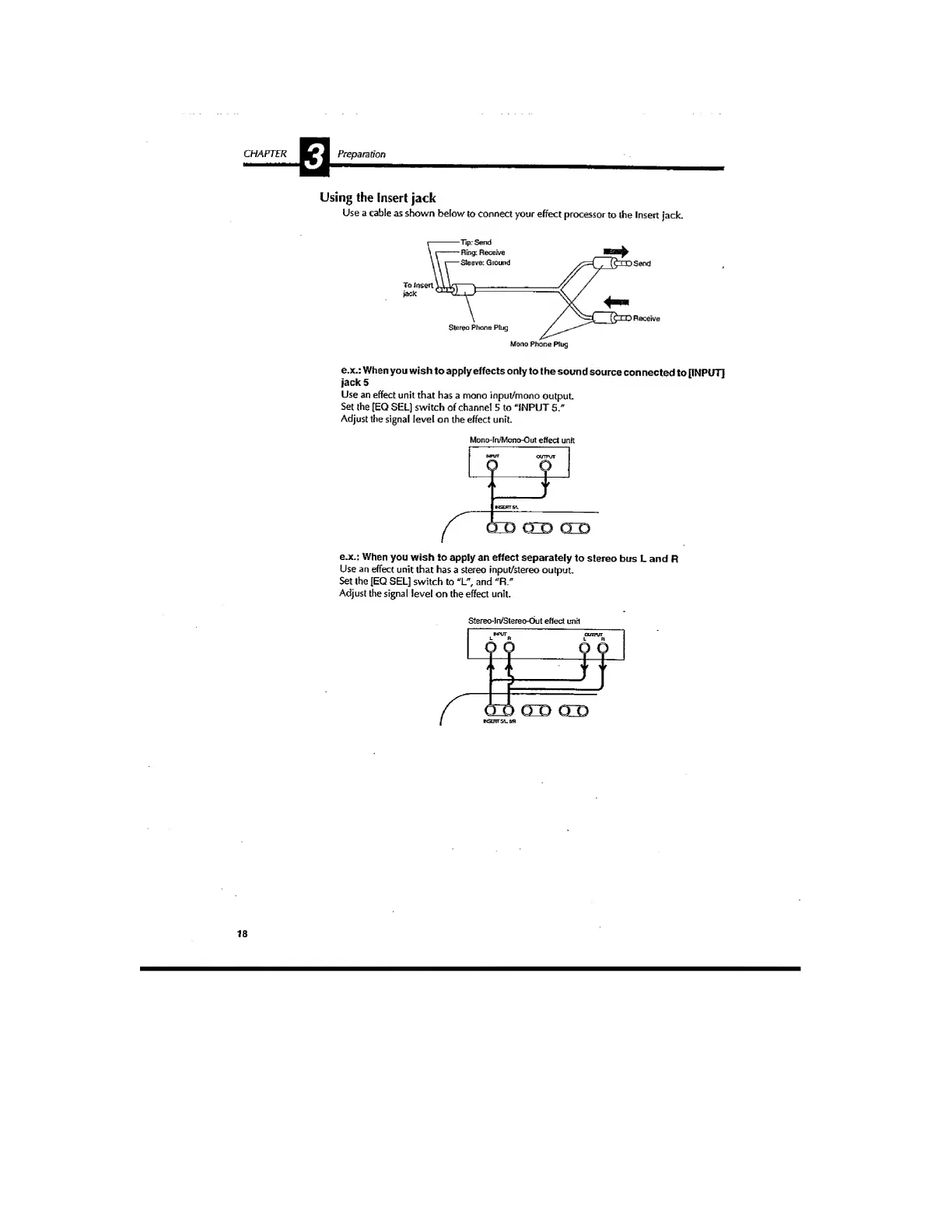

CHAPTER
Preparation
Using
the
Insert
jack
Use
a
cable
as
shown
below
to
connect
your
effect
processor
to
the
Insert
jack.
Mono
Phone
Prug
e.x.:
When
you
wish
to
apply
effects
only
to
the
sound
source
con
nected
to
[INPUTj
jack
5
Use
an
effect
unit
that
has
a
mono
input/mono
output.
Set
the
[EQ
SEL]
switch
of
channel
5
to
"INPUT
5."
Adjust
the
signal
level
on
the
effect
unit.
Mono-ln/Mono-Out
effect
unit
e.x.;
When
you
wish
to
apply
an
effect
separately
to
stereo
bus
L
and
R
Use
an
effect
unit
that
has
a
stereo
input/slereo
output.
Set
the
[EQ
SEL]
switch
to
"L",
and
"R."
Adjust
the
signal
level
on
the
effect
unit.
Stereo-ln/Stereo-Out
effect
unit
