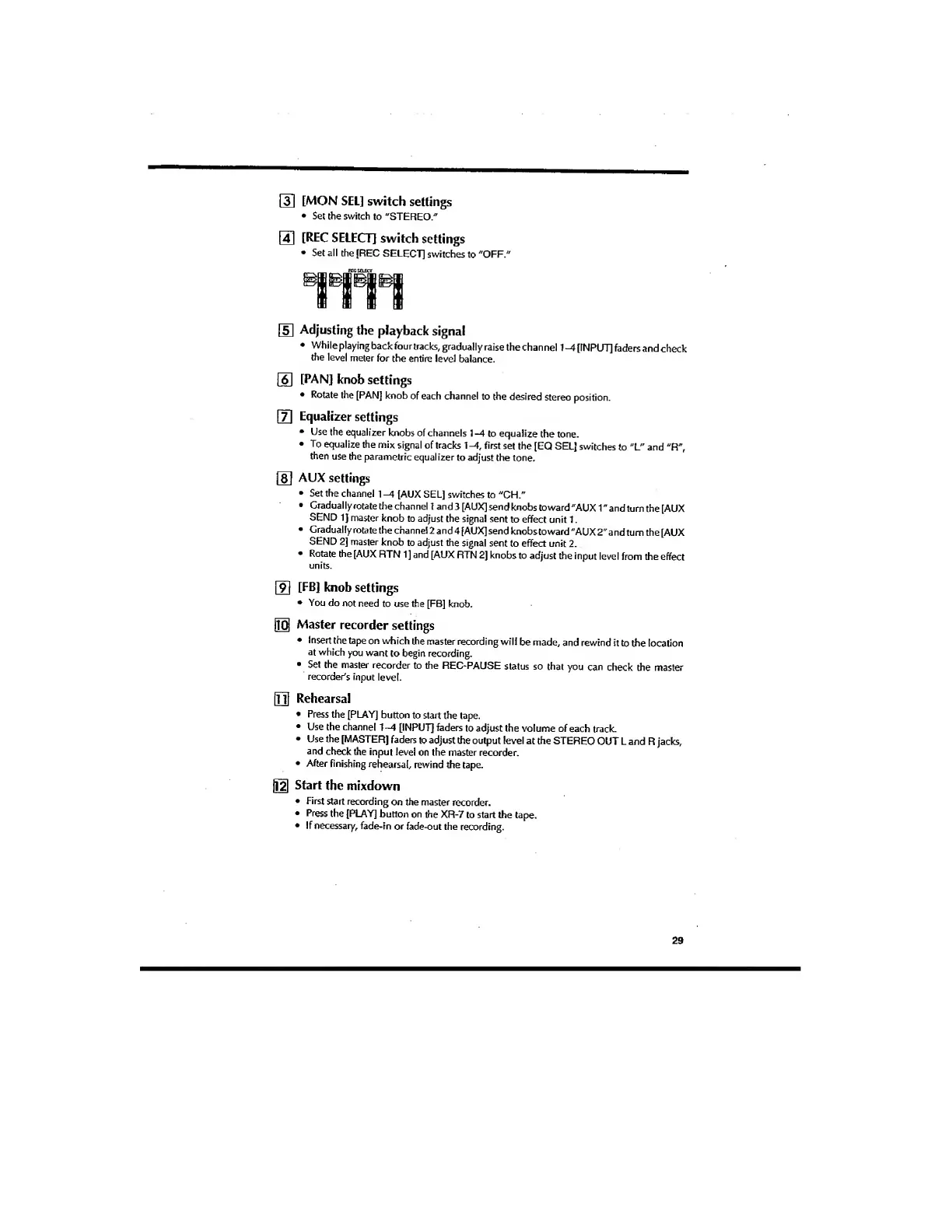

[n
[MON
SEL]
switch
settings
•
Set
the
switch
to
"STEREO."
[
4
]
[REC
SELECT]
switch
settings
•
Set
all
the
[REC
SELECT)
switches
to
"OFF.'
PgCSflfTT
[si
Adjusting
the
playback
signal
•
while
playing
back
four
tracks,
gradually
raise
the
channel
1
-4
[INPUT]
faders
and
check
the
level
meter
for
the
entire
level
balance.
[PAN]
knob
settings
•
Rotate
the
[PAN]
knob
of
each
channel
to
the
desired
stereo
position.
[7]
Equalizer
settings
•
Use
the
equalizer
knobs
of
channels
1
-4
to
equalize
the
tone.
•
To
equalize
the
mix
signal
of
tracks
first
set
the
[EQ
SEL]
switches
to
"L"
and
"R",
then
use
the
parametric
equalizer
to
adjust
the
tone,
AUX
settings
•
Set
the
channel
1
-A
[AUX
SEL]
switches
to
"CH."
•
Craduallyrotatethechannell
and3[AUX]sendknobstoward"AUX1"andturnthe[AUX
SEND
1]
master
knob
to
adjust
the
signal
sent
to
effect
unit
1.
•
Gradually
rotate
the
channel
2
and
4
[AUX]
send
knobs
toward
"AUX
2"
and
turn
the
[AUX
SEND
2]
master
knob
to
adjust
the
signal
sent
to
effect
unit
2.
•
Rotate
the
[AUX
RTN
1
]
and
[AUX
RTN
2]
knobs
to
adjust
the
input
level
from
the
effect
units.
[91
[FB]
knob
settings
•
You
do
not
need
to
use
the
[FB]
knob.
ilOl
Master
recorder
settings
•
Insert
the
tape
on
which
the
master
recording
will
be
made,
and
rewind
it
to
the
location
at
which
you
want
to
begin
recording.
•
Set
the
master
recorder
to
the
REC-PAUSE
status
so
that
you
can
check
the
master
recorder's
input
level.
[TjJ
Rehearsal
•
Press
the
[PLAY]
button
to
start
the
tape.
•
Use
the
channel
1-4
[INPUT]
faders
to
adjust
the
volume
of
each
track.
•
Use
the
[MASTER]
faders
to
adjust
the
output
level
at
the
STEREO
OUT
L
and
R
jacks,
and
check
the
input
level
on
the
master
recorder.
•
After
finishing
rehearsal,
rewind
the
tape.
I
12
I
Start
the
mixdown
•
First
start
recording
on
the
master
recorder.
•
Press
the
[PLAY]
button
on
the
XR-7
to
start
the
tape,
•
If
necessary,
fade-in
or
fade-out
the
recording.
29
