Foundation FP-102KM4 - O) BRANCH DUCT and FRESH AIR DUCT INSTALLATION

Page 26 of 49
Ceiling cassette
Fan
Coil Unit
, 4
-
pipe system
Model: FP-
KM

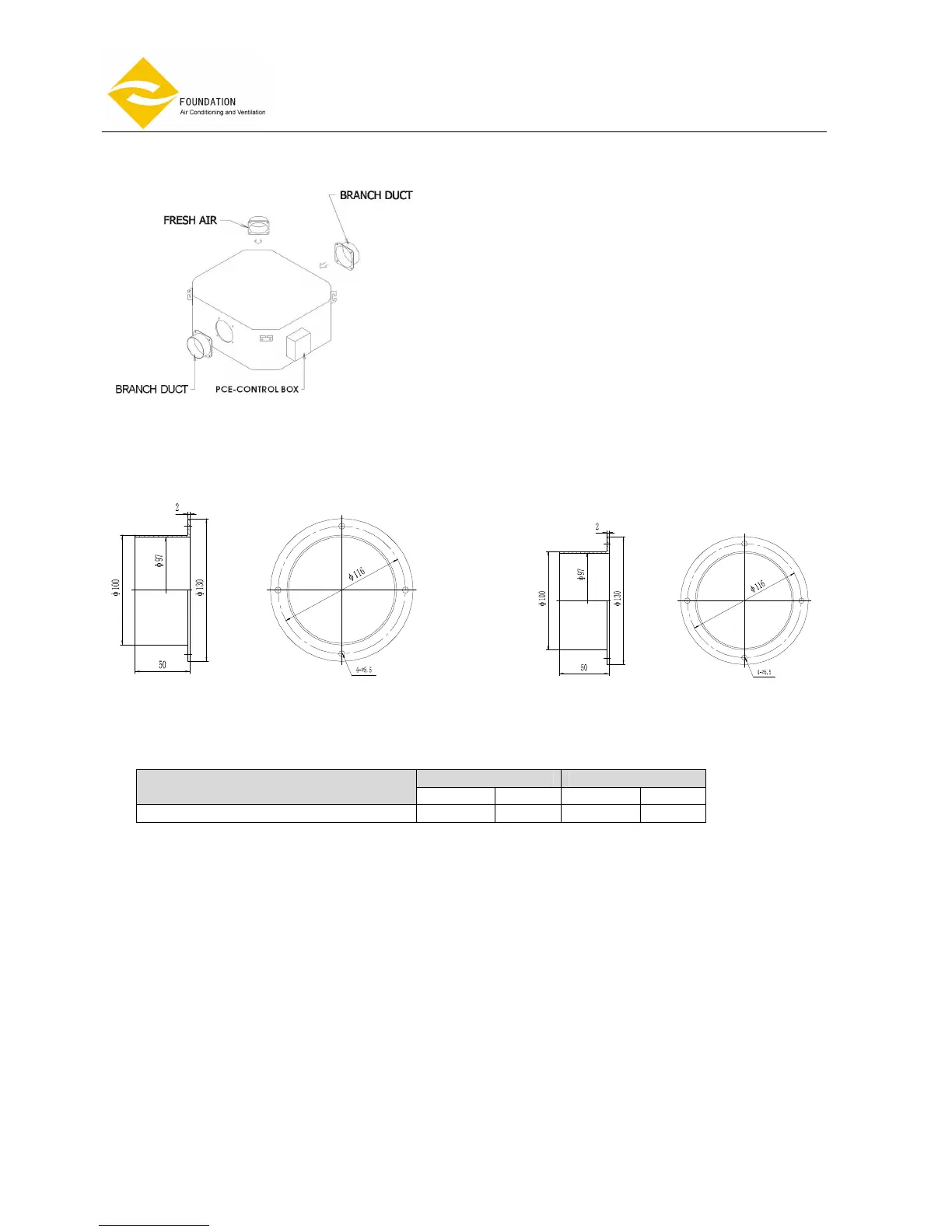

BRANCH DUCT AND FRESH AIR DUCT INSTALLATION
BRANCH DUCT FRESH AIR
MODEL
Dia(mm) QTY Dia.(mm)
QTY
FP-68-80-85-102-136-170-204-238 KM4 100 2 100 1
Fig. 26
Fig. 27
