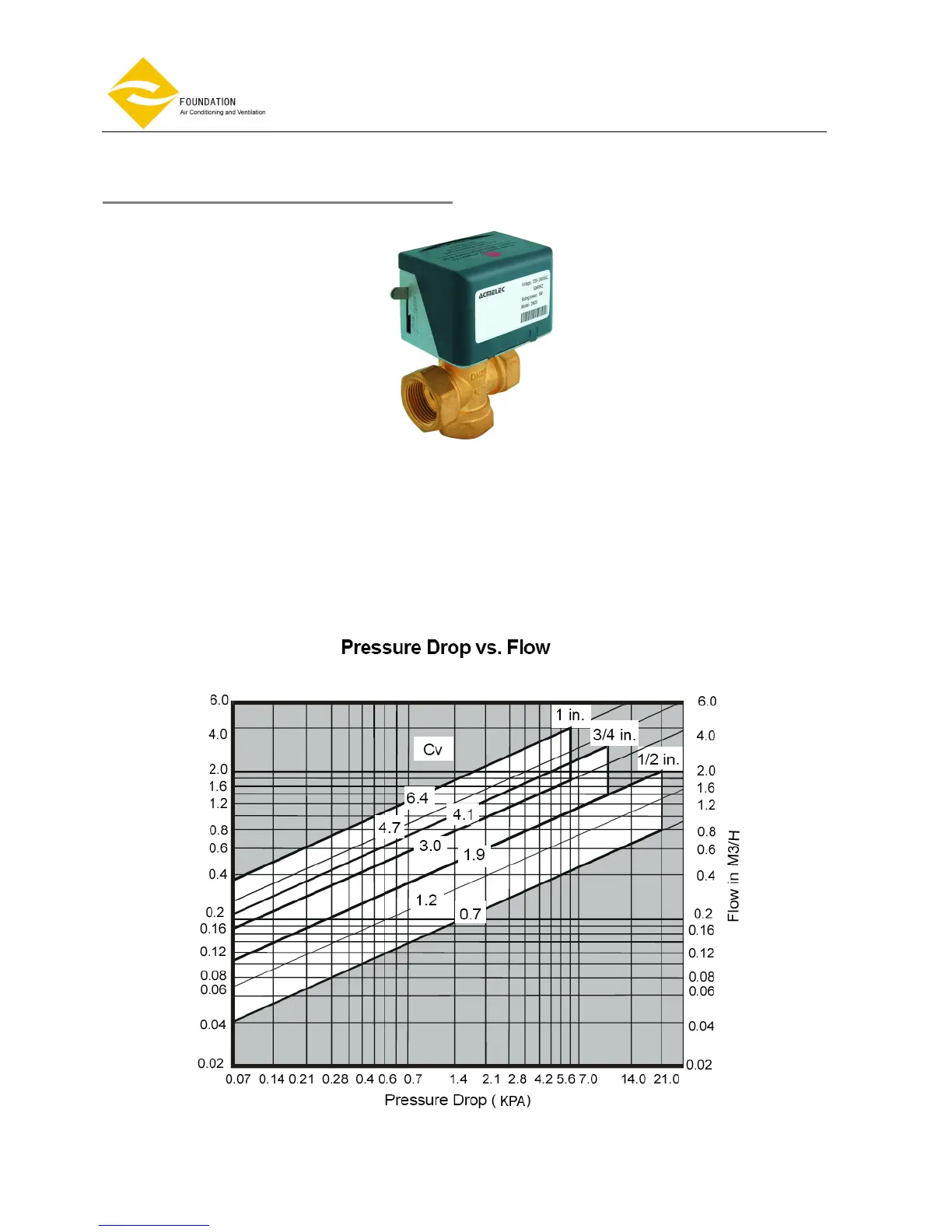

SOLENOID VALVE (OPTIONAL)
The solenoid valve consists of a motor and a main body. The synchronous motor recovers by a spring and can be
controlled by a handle. The main body adopts the piston system.
1. Technical data of solenoid valve
Power supply: 230VAC50Hz
Input: 4W
Electric machine type: synchronous
Working pressure: 1.6Mpa
Ambient operating temperature: 0~65
0
C
Liquid temperature range: 1~95
0
C
