Foundation FP-102KM4 - Page 31

Page 31 of 49
Ceiling cassette
Fan
Coil Unit
, 4
-
pipe system
Model: FP-
KM

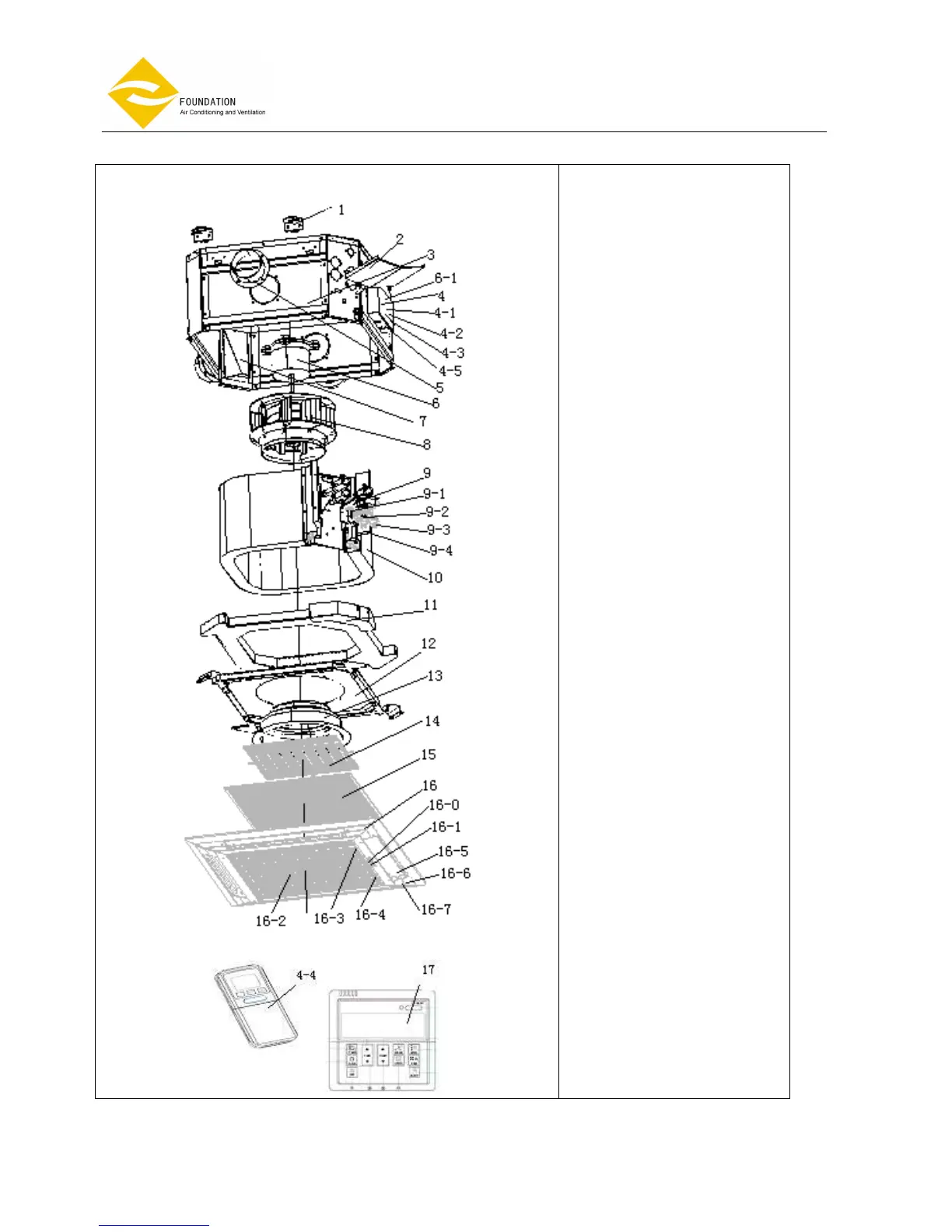

FP-68-80KM4
1-Mounting brackets
2-External drain pan
3-Load bearing structure
4-Control box
4-1- Main PCB
4-2-Transformer
4-3-Terminal block
4-4-Remote handset
4-5-Wire clip
5-Branch duct
6-Fan motor
6-1- motor capacitor
7- Fresh air outlet
8-Fan blower
9-Drain pump assembly
9-1- Drain pump fixture
9-2- Drain pump
9-3-Drainage tube
9-4- Float switch
10-Heat exchanger
11-Drain pan
12-Drain pan fixture
13-Venturi
14-Shield
15-Air filter
16-Cover panel
16-0- Receiver display
16-1-Receiver label sticker
16-2-Grille
16-3-Bolt（Left）
16-4-Bolt（Right）
16-5-Louver
16-6-Stepping motor
16-7-Fan bearing
17- Wire wall pad
