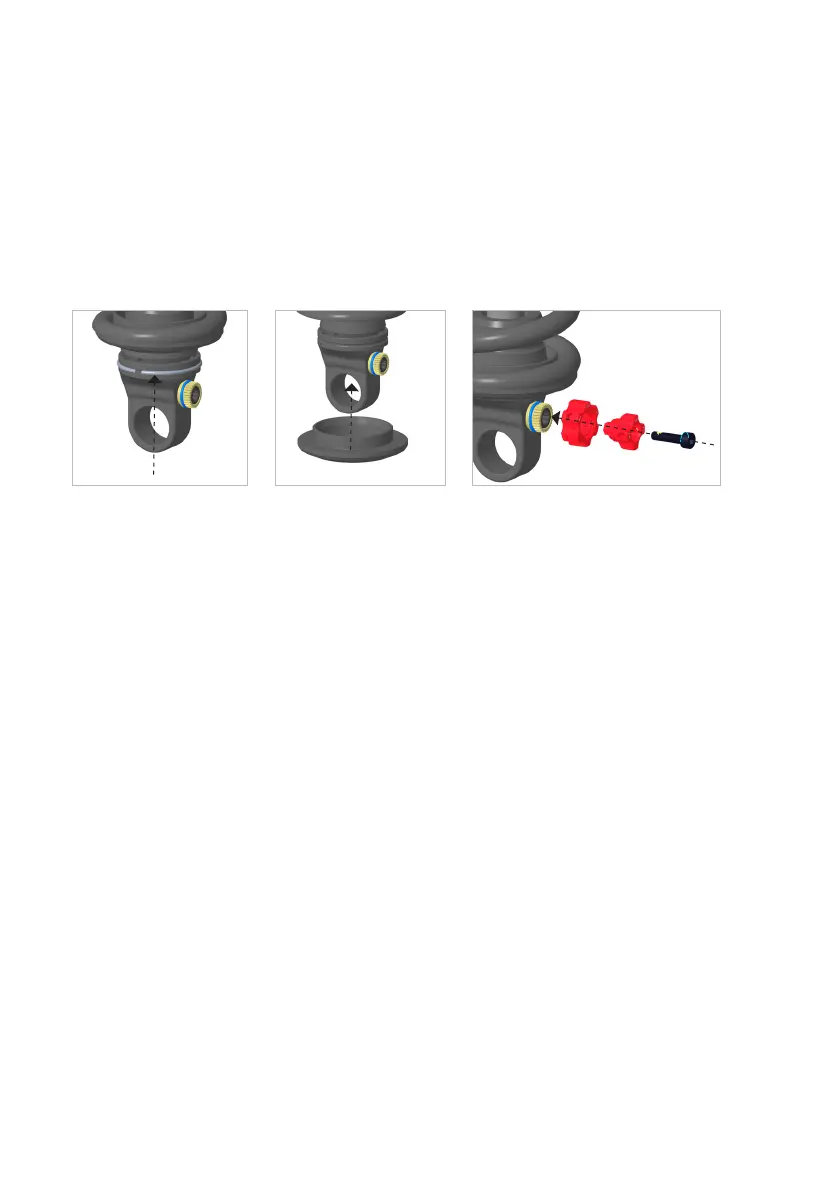

INSTALLING THE COIL SPRING
1. Install the coil spring onto the shock body.
2. Install the spring retainer onto the shock with the protruding section positioned inside of the coil
spring. Install the round wire retaining ring into its groove, making sure to seat it fully.
3. Slide the spring retainer back over the installed wire ring and ensure it is fully seated over the
wire ring.
4. Tighten the preload adjuster just until the spring no longer moves, then turn the preload 8 clicks.
5. Use a 2.5 mm hex wrench to reinstall the rebound knobs in their original orientation.
6. Set the sag according to instructions in this manual (see the ‘Sag Setting’ section) or online at
www.ridefox.com.
