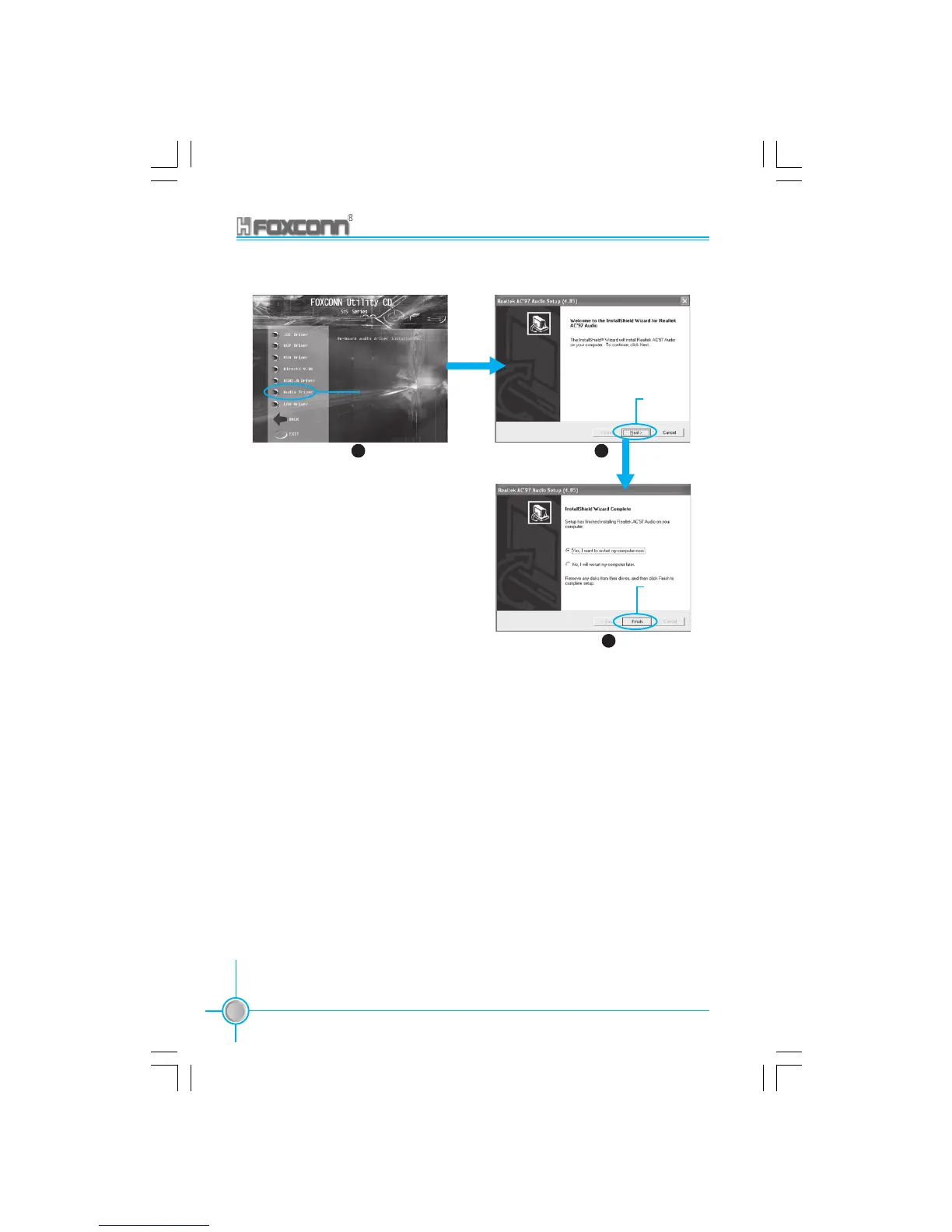

Chapter 4 Driver CD Introduction
66
661M03 Series User Manual
1
2
Click here
3
Click here
Attaching Speakers
To perform multichannel audio operation, connect multiple speakers to the
system. You should connect the same number of speakers as the audio chan-
nels you will select in the software utility.
2-Channel Analog Audio Output
The audio connectors on the rear panel already provide 2-Channel analog au-
dio output. The rear panel’s audio connectors can be transformed to 4-/6-Chan-
nel analog audio connectors automatically when you select the correct setting
in the software utility. For information about the setting, refer to Selecting 4- or 6-
Channel setting later in this section.
Make sure all speakers are connected to Line-out connectors. Diverse connec-
tor configurations for 2-, 4- and 6-Channel using rear panel connectors are
described below:
Click here
To Next Page
