Chapter 2 Installation Instructions
18
661M03 Series User Manual
Rear Panel Connectors

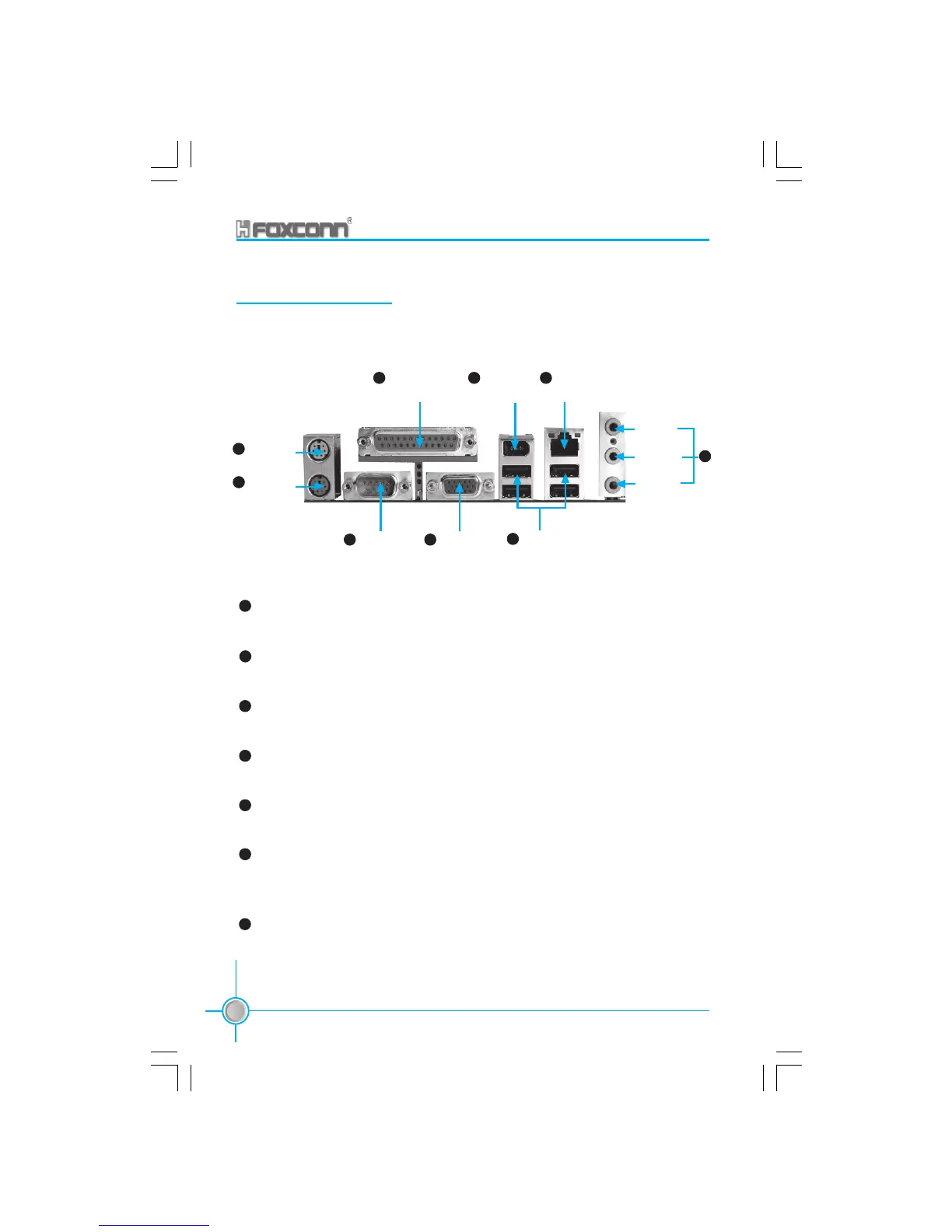

This motherboard provides the ports as below:
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 Mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGA Connector
The VGA connector is for output to a VGA-compatible device.
USB 2.0 ports
These four Universal Serial Bus (USB) ports are available for connecting USB 2.0/
1.1 devices.
1394 port (optional)
This digital interface supports electronic devices such as digital cameras,
scanners and printers.
1
2
3
5
4
6
7
Serial Port
(COM1)
VGA Connector
USB 2.0 Port x 4
PS/2 Mouse
Connector
Parallel Port
(Printer Port)
LAN connector
Line-in jack
Line-out jack
Microphone
jack
1
2
3
4
6
5
8
9
1394 Port
(optional)
7
PS/2 Keyboard
Connector
