Chapter 2 Installation Instructions
26
661M03 Series User Manual

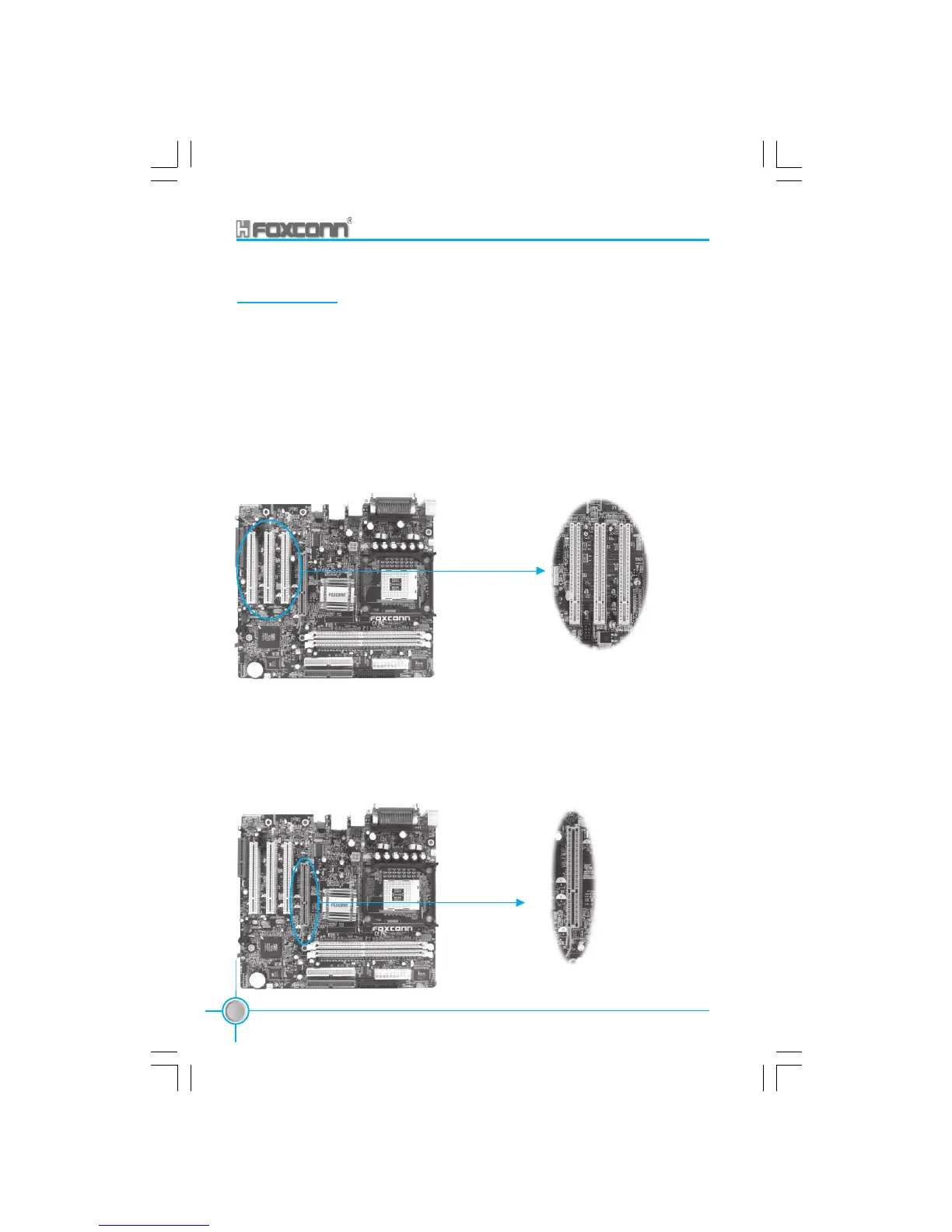

Expension Slots
This motherboard includes three 32-bit Master PCI bus slots, one AGP slot and
one CNR slot (optional).
PCI Slots
The expansion cards can be installed in the three PCI slots. When you install or
take out such cards, you must make sure that the power plug has been pulled
out. Please read carefully the instructions provided for such cards, and install
and set the necessary hardware and software for such cards, such as the
jumper or BIOS setup.
PCI Slots
AGP Slot
This motherboard has an AGP slot that supports 1.5V AGP cards. AGP is an
interfacing specification designed to display 3D images. It provides a special-
ized 66Mhz, 32-bit channel to allow the graphic controller to directly access the
master memory and supports 4X and 8X speeds.
AGP slot
