Foxconn B75MX-D User Manual

PRODUCT INTRODUCTION
4

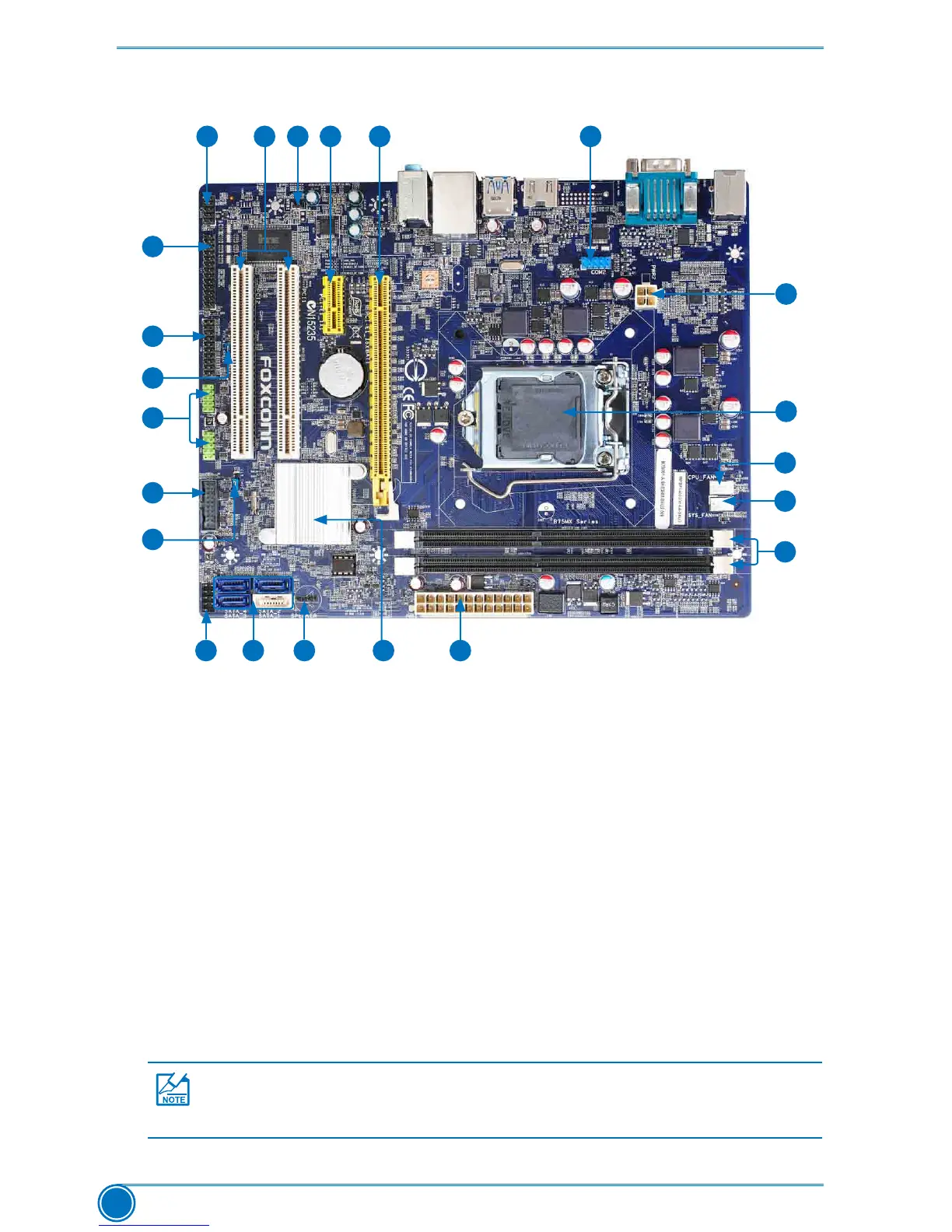

1-2 Layout
1.COM2Header
2.PCIExpressX16Slot
3. PCI Express X1 Slot
4.INTRHeader
5. PCI Slot
6. Front Audio Header
7. LPT Header
8. TPM Header
9. ME Header
10.FrontUSB2.0Headers
11. Front USB 3.0 Header
12.ClearCMOSHeader
13. Front Panel Header
14.SATAConnectors
15. Speaker Header
16. Chipset: Intel® B75
17.24-pinATXPowerConnector
18. DDR3 DIMM Slot
19. SYS_FAN Header
20.CPU_FANHeader
21.LGA1155CPUSocket
22.4-pinATX12VPowerConnector
The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
18
19
20
21
22
13 14 15 1716
7
8
9
11
12
10
123456
