PRODUCT INTRODUCTION
5
6
6
1. PS/2 Mouse Port
Usetheupperport(green)toconnectaPS/2mouse.
2. PS/2 Keyboard Port
UsetheupperporttoconnectaPS/2keyboard.
3. COM Port
ThisisoutputofRS232COM1port.
4. VGA Port
Use this port to connect external display devices, such as monitor or LCD display.
5. HDMI Port (B75MX)
TheHDMI(High-DenitionMultimediaInterface)providesanall-digitalaudio/videointerface
to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI
audio/video device to this port. The HDMI Technology can support a maximum resolution of
1920x1080pbuttheactualresolutionssupporteddependonthemonitorbeingused.
5. DVI-D Port (B75MX-S/B75MX-D/B75MX-D PA)
TheDVI-DportsupportsDVI-Dspecication.ConnectamonitorthatsupportsDVI-Dconnec-
tion to this port.
6. USB 3.0 Ports
TheUSBportsupportstheUSB3.0/2.0/1.1specication.UsethisportforUSBdevicessuch
1-3 Back Panel Connectors

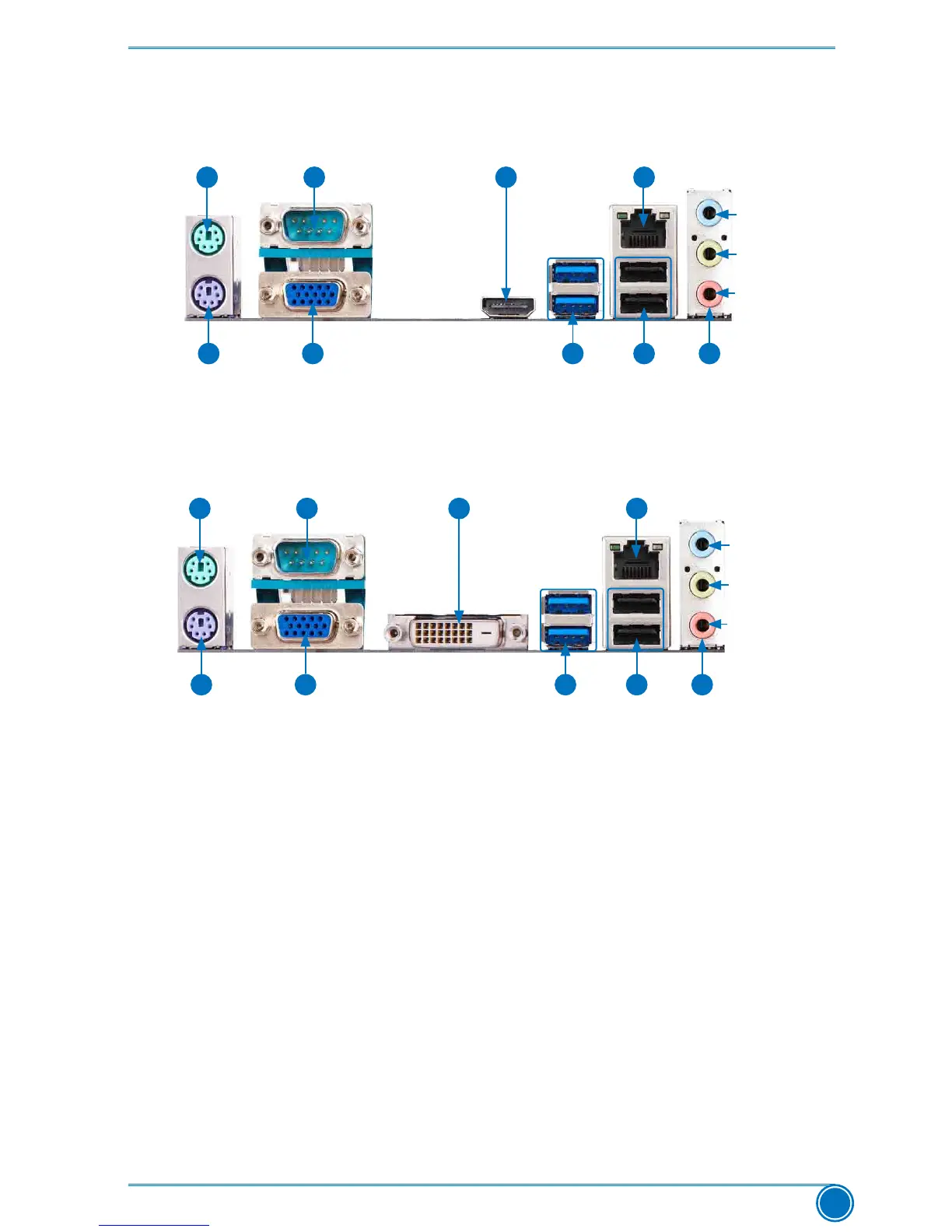

Back panel connectors of 5.1 channel (B75MX-S/B75MX-D/B75MX-D PA):
Back panel connectors of 5.1 channel (B75MX):
PS/2KeyboardPort
PS/2KeyboardPort
Audio Port
Audio Port
Line Out
Line Out
Microphone In
Microphone In
Line In
Line In
LAN Port
LAN Port
USB 3.0 Port
USB 3.0 Port
USB2.0Port
USB2.0Port
COM Port
COM Port
VGA Port
VGA Port
1
1
2
2
3
3
4
4
8
8
9
9
5
5
7
7
PS/2MousePort
PS/2MousePort
HDMI Port
DVI-D Port
