HARDWARE INSTALLATION
12

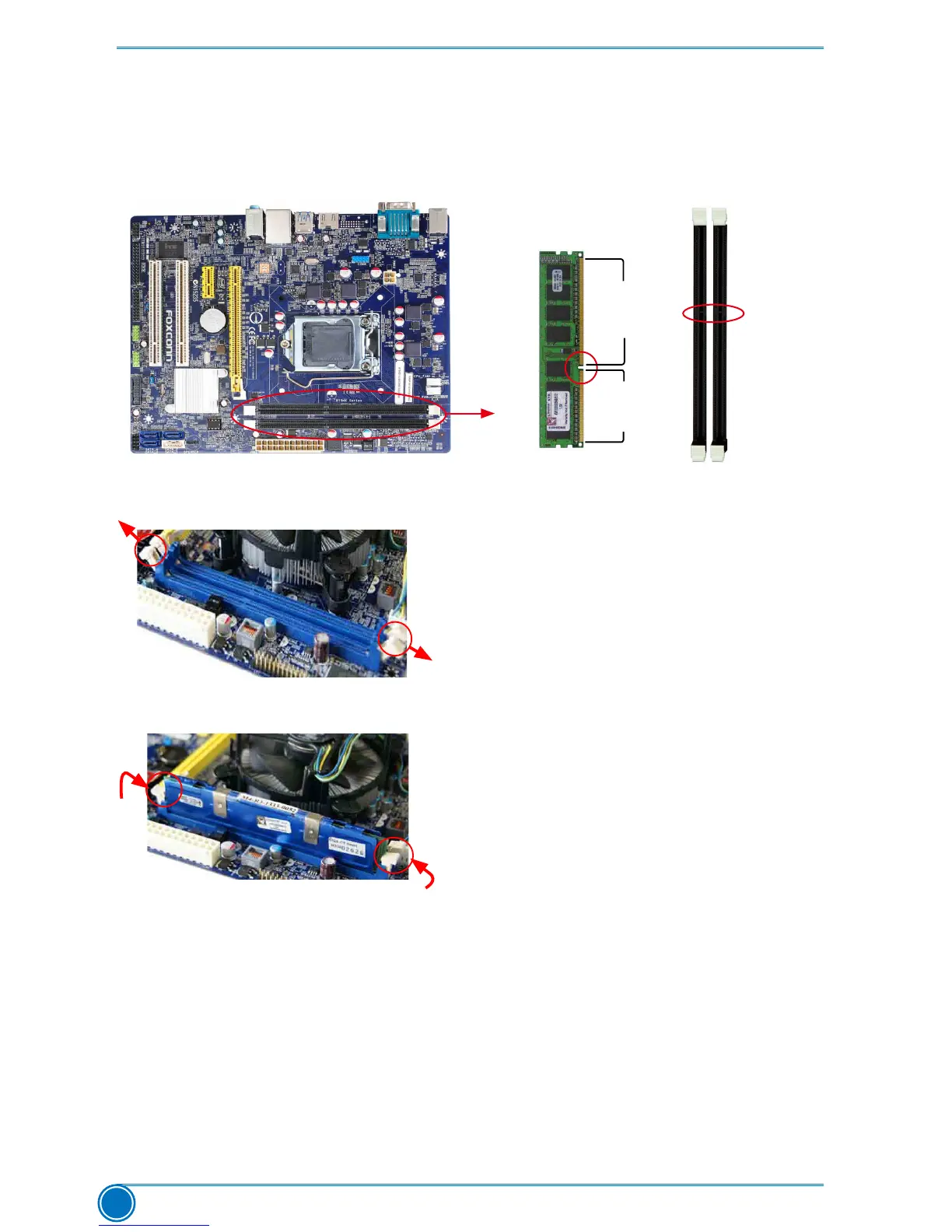

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides
separatedbyanotchinthemiddle,soitcanonlytinonedirection.Followthestepsbelowto
correctly install your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push it
downrmlyandseatitverticallyintothememorysocket.
Step2:
The clips at both ends of the socket will snap into place
when the memory module is securely inserted.
96-Pin
144-Pin
Notch
