Foxconn G41MX 2.0 User Manual

50
4
50

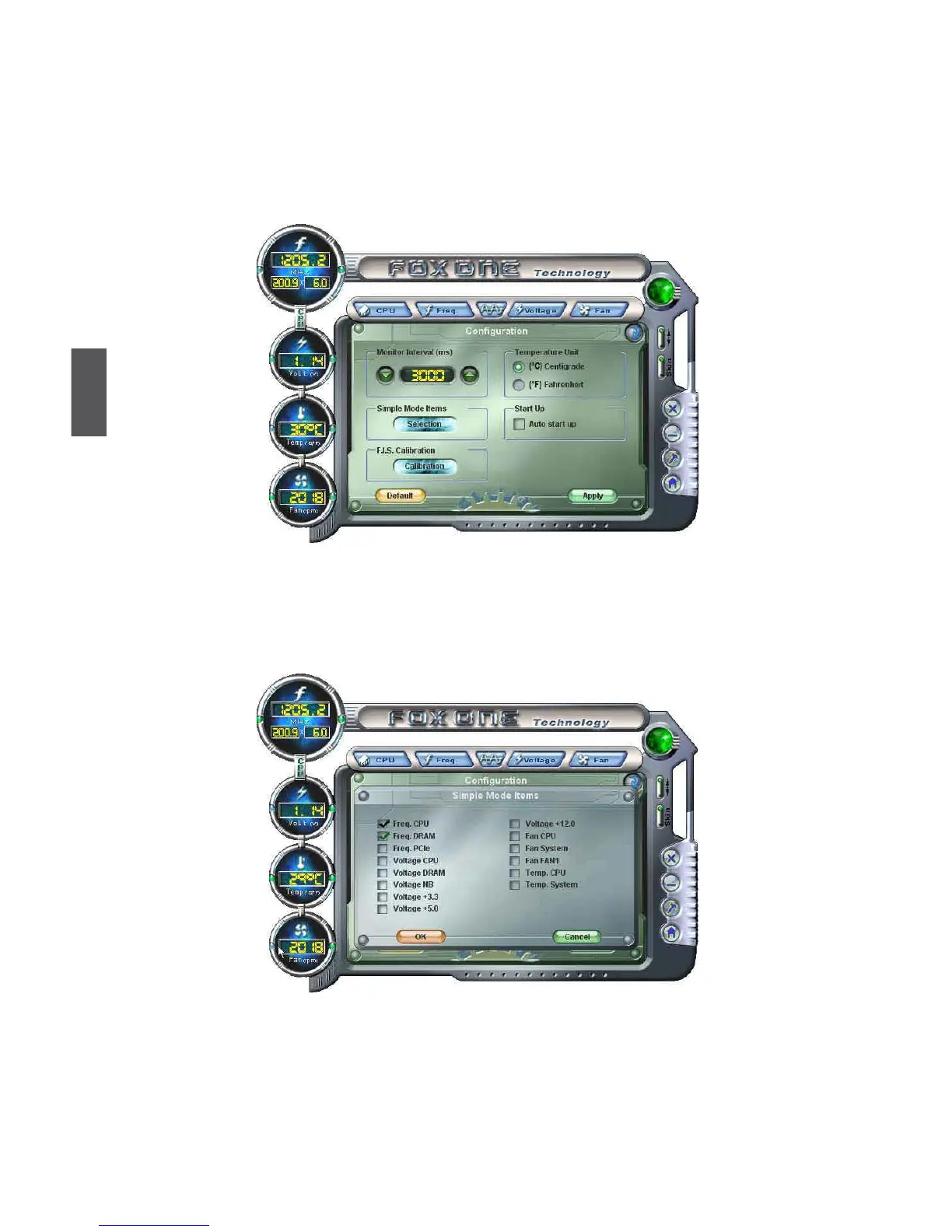

Conguration
This menu allows you to congure :
1). Monitor interval (ms) :
This is to dene the interval of different messages of system settings which are to
be displayed on Simple Mode screen. Minimum value is 1 second.
2). Simple Mode :
To select which message of system settings are to be displayed in the Simple
Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one
by one in Simple Mode.
3). F.I.S. Calibration (FOX Intelligent Stepping, Optional)
This function will re-calibrate the CPU's loading, and it may take several minutes
to proceed. The FOX ONE calibration process will apply different loadings to
your CPU, record PWM IC voltage together with the CPU clock running at these
loadings, so it can dene and estimate within a particular range of system loading,
what the CPU clock should be.

Foxconn G41MX 2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
IDE Ports	1 x ATA 100
Video Outputs	1 x VGA
Memory Slots	2 x DIMM
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC662, 6-Channel
LAN	Realtek RTL8111 Gigabit Ethernet
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Type	DDR3
