Foxconn G41MX 2.0 User Manual

51
4
51

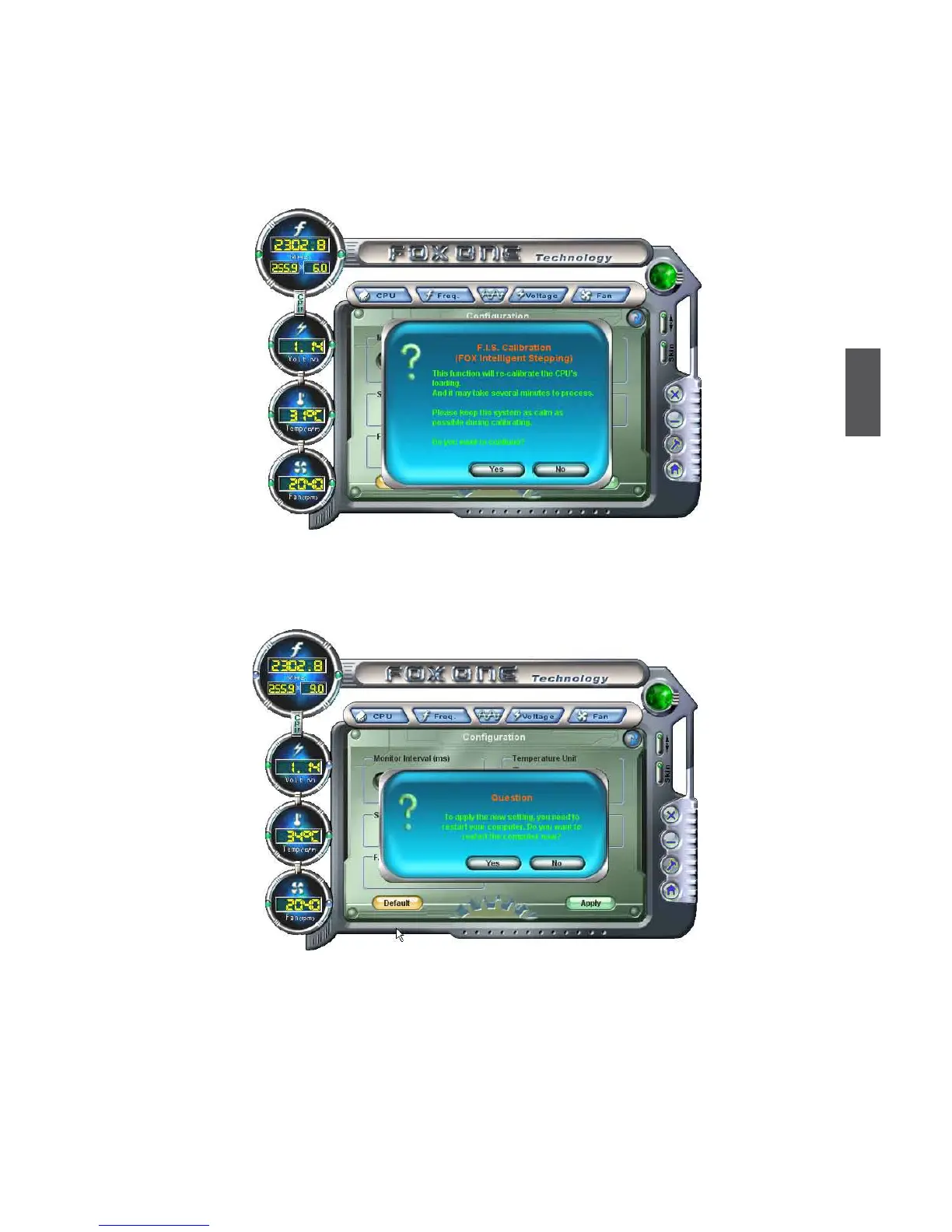

Step 1 : Click Calibration icon, a message pops out to ask for continue. Select Yes.
Step 2 : After data is collected, it will ask you to restart your computer now.
Later on, when the FOX ONE program is activated, and F.I.S. feature (in CPU
Page) is also enabled, FOX ONE will automatically adjust your CPU clock
according to your system loadings. (Loadings are like Power Gaming, Data
Mining...etc.)

Foxconn G41MX 2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
IDE Ports	1 x ATA 100
Video Outputs	1 x VGA
Memory Slots	2 x DIMM
Expansion Slots	1 x PCIe x16, 2 x PCI
Audio	Realtek ALC662, 6-Channel
LAN	Realtek RTL8111 Gigabit Ethernet
Supported CPU	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Memory Type	DDR3
