Foxconn G41MX-F 2.0 User Manual

1
4

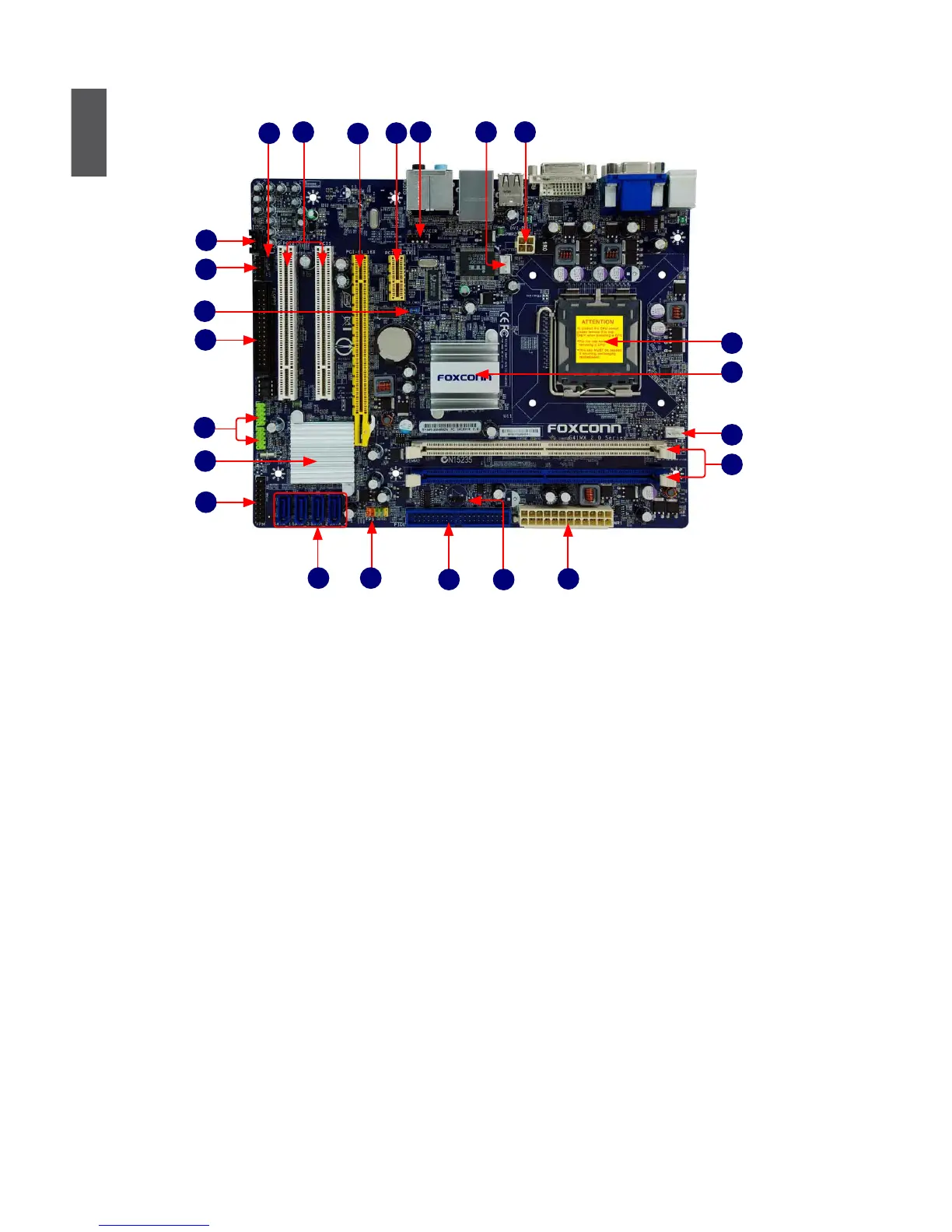

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. System FAN Header
3. IR/CIR Connector
4. PCI Express x1 Slot
5. PCI Express x16 Slot
6. PCI Slots
7. S/PDIF_OUT Connector
8. CD_IN Connector
9. Front Audio Connector
10. Clear CMOS Jumper
11. Floppy Connector
12. Front USB Connectors
13. South Bridge: Intel
®
ICH7
14. TPM Connector
15. SATA Connectors
16. Front Panel Connector
17. IDE Connector
18. Speaker Connector
19. 24-pin ATX Power Connector
20. DDR2 DIMM Slots
21. CPU_FAN Header
22. North Bridge: Intel
®
G41
23. LGA 775 CPU Socket
20
21
22
1
36
1615
17
2
8
4
5
18
23
9
12
14
11
7
19
13
10

Foxconn G41MX-F 2.0 Specifications

General

Brand	Foxconn
Model	G41MX-F 2.0
Category	Motherboard
Language	English
