1-2 Layout

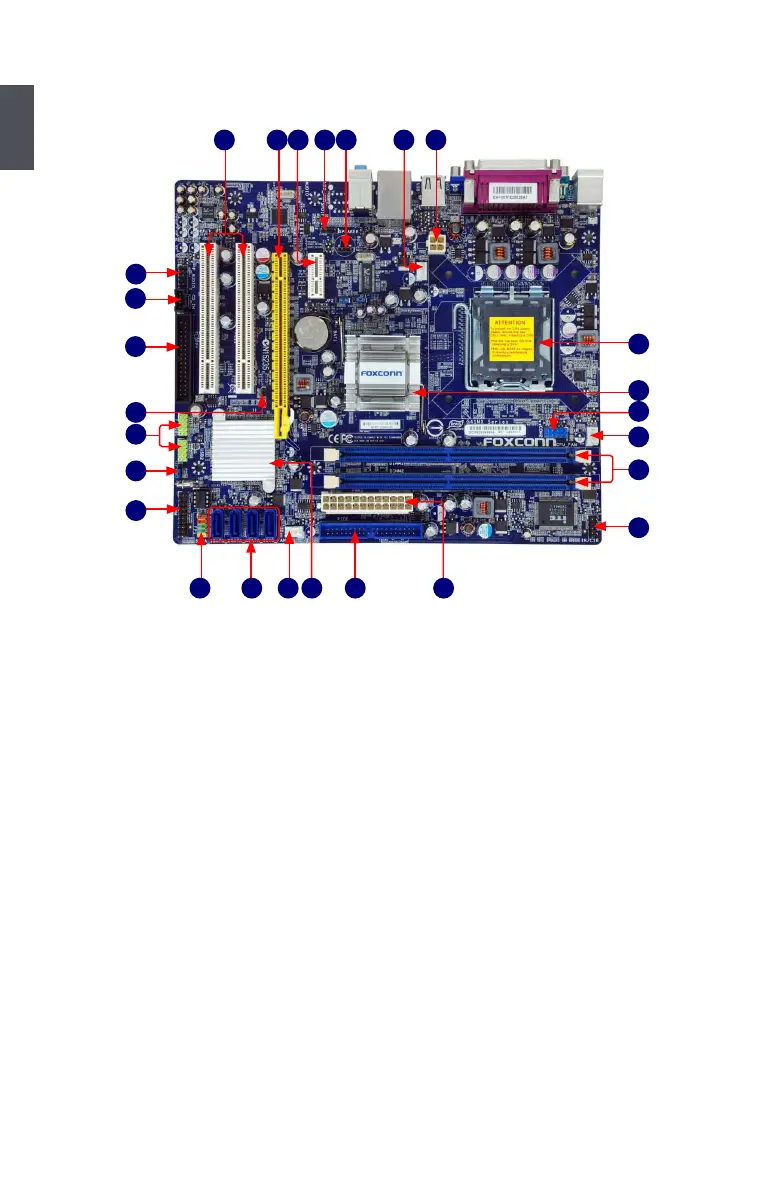

Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. System FAN2 Header
3. Speaker Connector
4. S/PDIF_OUT Connector
5. PCI Express x1 Slot
6. PCI Express x16 Slot
7. PCI Slots
8. Front Audio Connector
9. CD_IN Connector
10. Floppy Connector
11. Chassis Intrusion Alarm Header
12. Front USB Connectors
13. Clear CMOS Jumper
14. TPM Connector
15. Front Panel Connector
16. SATA Connectors
17. System FAN1 Header
18. South Bridge: Intel
®
ICH7
19. IDE Connector
20. 24-pin ATX Power Connector
21. IR/CIR Connector
22. DDR2 DIMM Slots
23. CPU_FAN Header
24. COM2 Connector
25. North Bridge: Intel
®
G41
26. LGA 775 CPU Socket
22
23
25
1
37
1716 191815
2
456
20
24
26
8
12
13
14
11
10
21
9
