Foxconn H77M Series User Manual

1
4

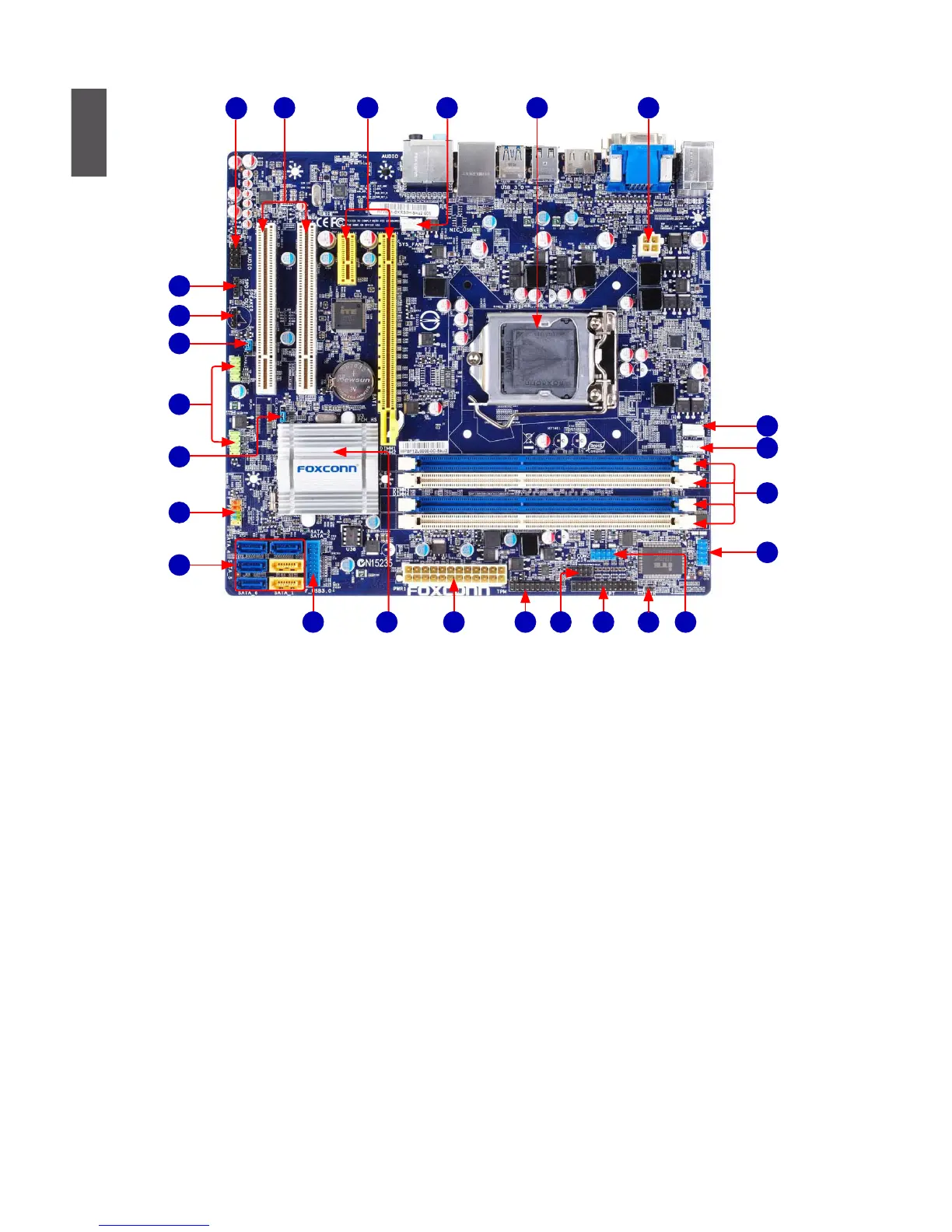

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. LGA1155 CPU Socket
3. SYS_FAN1 Header
4. PCI Express x16 Slot
5. PCI Slot
6. Front Audio Header
7. SPDIF_OUT Header
8. Speaker Connector
9. ME Jumper
10. Front USB Header
11.Clear CMOS Jumper
12. Front Panel Header
13. SATA Connectors
14. Front USB 3.0 Connectors
15. Chipset: Intel
®
H77
16. 24-pin ATX main Power Connector
17. TPM Header
18. CIR Header
19. LPT Header
20. INTR Header
21. COM2 Header
22. COM1 Header
23. DDR3 DIMM Slots
24. CPU_FAN Header
25. SYS_FAN2 Header
10
3
9
11
19
22
13
8
16
6
1
7
45 2
20
1715
12
25
23
14
18
21
24
