49
4
49

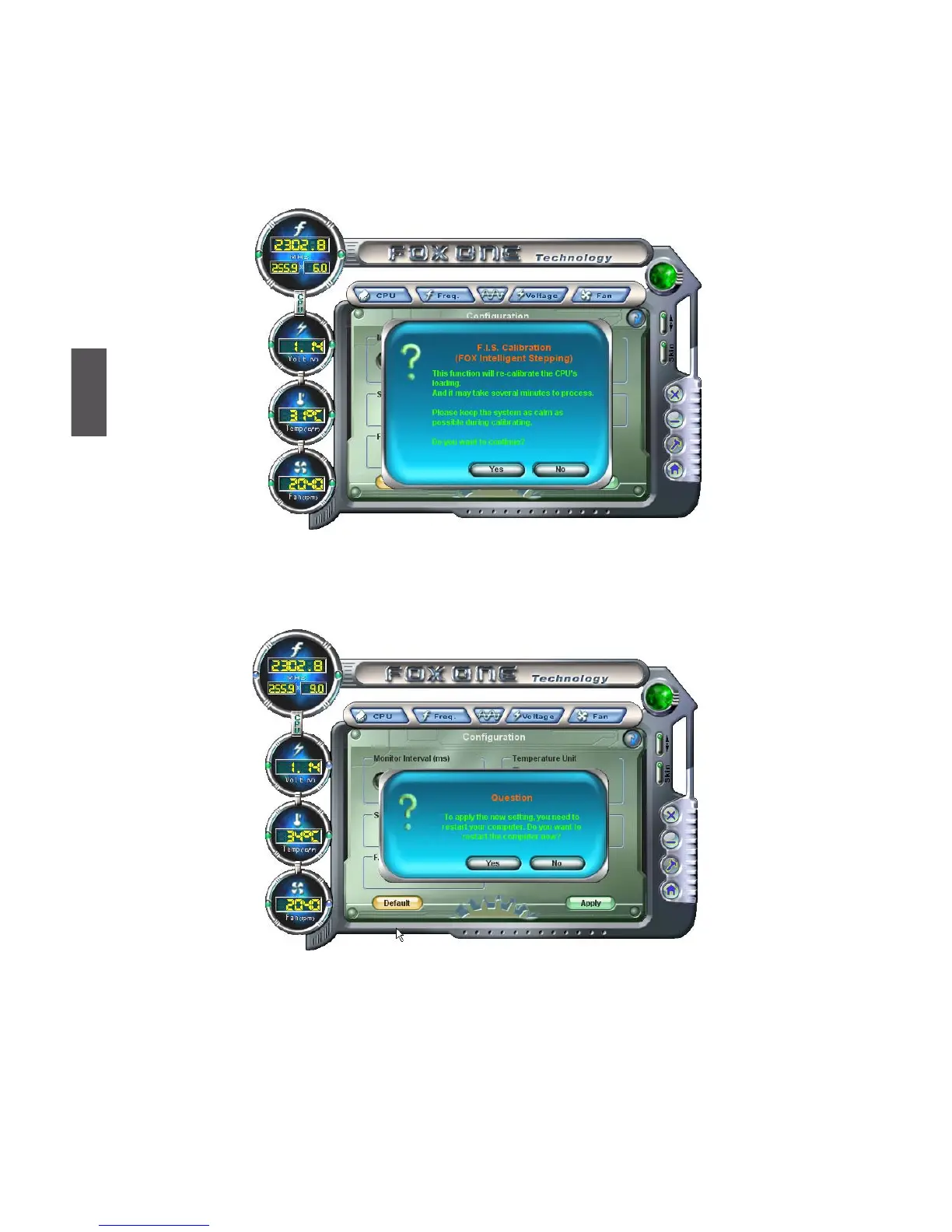

Step 1 : Click Calibration icon, a message pops out to ask for continue. Select Y
es.
Step 2 :
After data is collected, it will ask you to restart your computer now
.
Later on, when the FOX ONE program is activated, and F
.I.S. feature (in CPU
Page) is also enabled, FOX ONE will automatically adjust your CPU clock
according to your system loadings. (Loadings are like Power Gaming, Data
Mining...etc.)
