PRODUCT INTRODUCTION
4

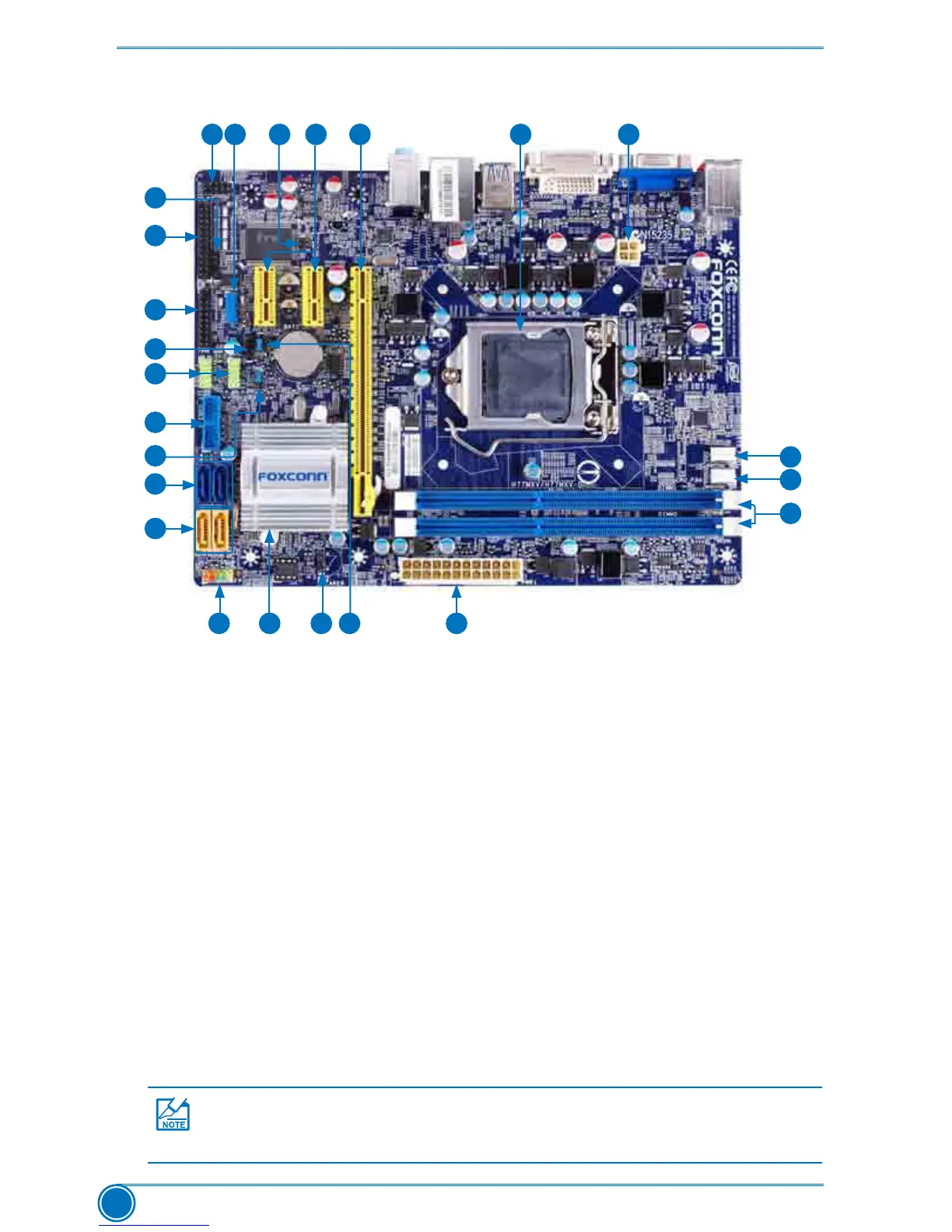

1-2 Layout
1. 4-pinATX12VPowerConnector
2.LGA1155CPUSocket
3. PCI Express x16 Slot
4.PCIExpressx1Slot
5.INTRHeader
6. COM1 Header
7. Front Audio Header
8. CIR Header
9. LPT Header
10. TPM Header
11. SPDIF_OUT Header
12.FrontUSB2.0Header
13. Front USB 3.0 Header
14.ClearCMOSHeader
15.SATA2.0Connector
16. SATA 3.0 Connector
17. Front Panel Header
18.Chipset:Intel®H77
19. Speaker Header
20.PCH_ME_ENABLEHeader
21.24-pinATXPowerConnector
22.DDR3DIMMSlot
23.CPU_FANHeader
24.SYS_FANHeader
1234567
8
9
10
11
12
13
14
15
16
17 18 19 20 21
22
23
24
The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
