Foxconn H77MXV-D User Manual

PRODUCT INTRODUCTION
5
1. PS/2 Keyboard Port
 UsetheupperporttoconnectaPS/2keyboard.
2. USB 2.0 Port
 TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchas
 anUSBkeyboard/mouse,USBprinter,USBashdriveandetc.
3. VGA Port
Use this port to connect external display devices, such as monitor or LCD display.
4. HDMI Port
TheHDMI(High-DenitionMultimediaInterface)providesanall-digitalaudio/videointerface
to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the
HDMI audio/video device to this port. The HDMI Technology can support a maximum
 resolutionof1920x1080pbuttheactualresolutionssupporteddependonthemonitorbeing
used.
5. DVI_D Port
TheDVI-DportsupportsDVI-Dspecication.ConnectamonitorthatsupportsDVI-Dconnec-
tion to this port.
6. USB 3.0 Port
TheUSBportsupportstheUSB3.0/2.0/1.0specication.UsethisportforUSBdevicessuch
asanUSBkeyboard/mouse,USBprinter,USBashdriveandetc.Butyouneedtoinstallthe
USB 3.0 driver in the Driver CD before using it.

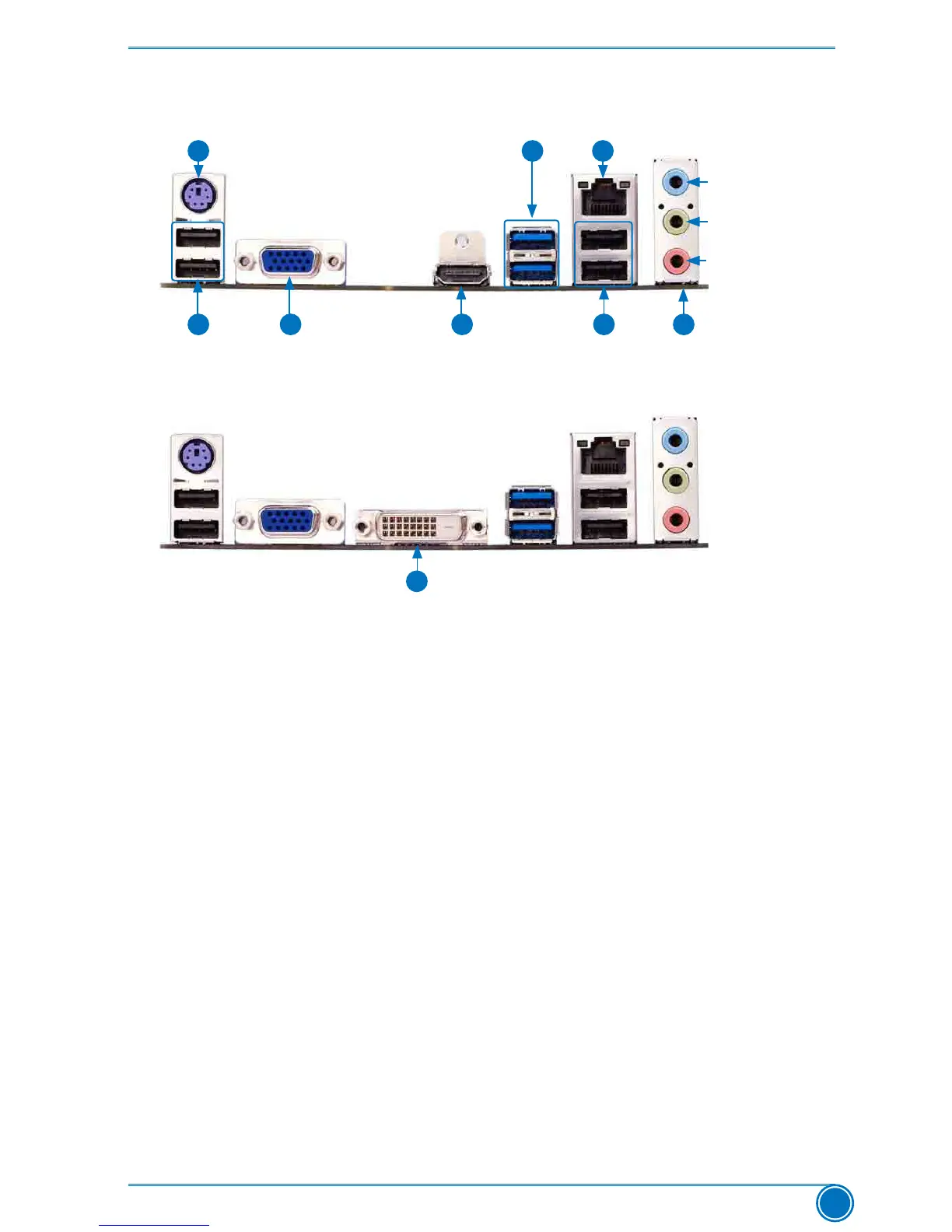

1-3 Back Panel Connectors
PS/2KeyboardPort
Audio Port
Line Out
Microphone In
Line In
LAN Port
USB2.0Port USB2.0PortVGA Port HDMI Port
(H77MXV)
DVI-D Port
(H77MXV-D)
USB 3.0 Port
1
2 23 4
5
8
6 7
