7. Audio Ports

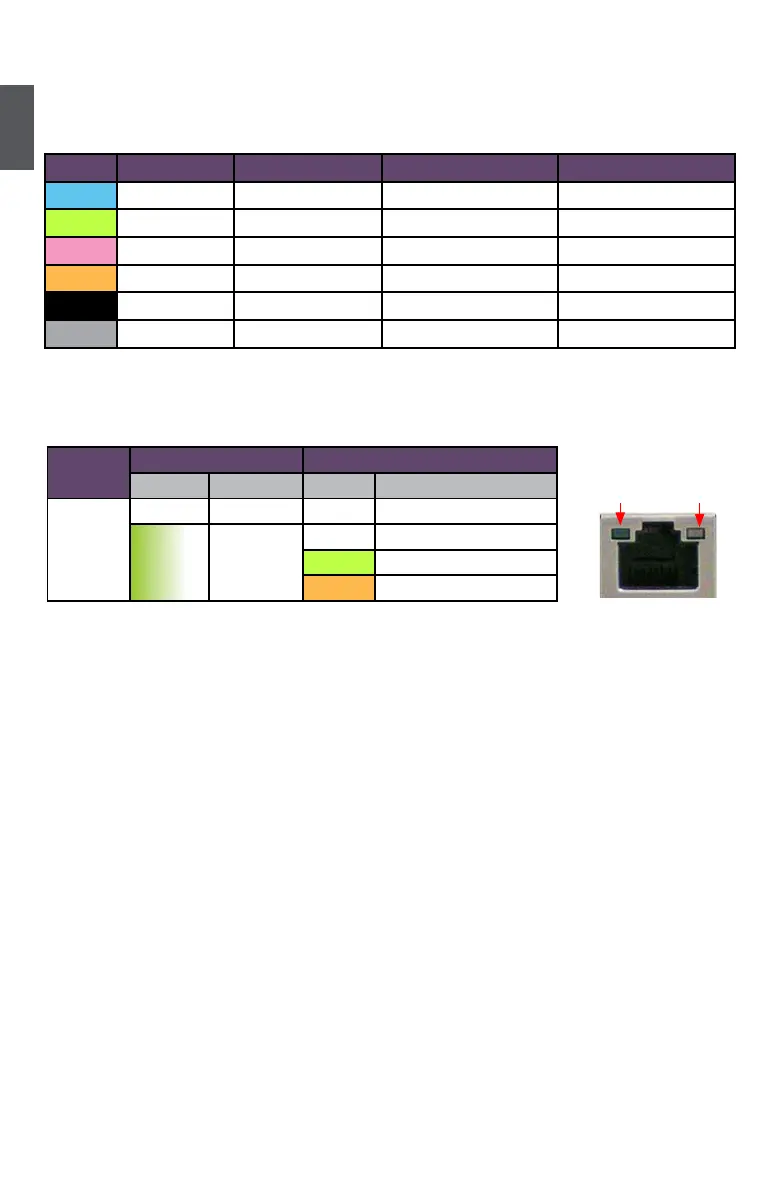

For the denition of each audio port, please refer to the below table :
8. RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1Gb/s data rate.
9. Parallel Port
Use the parallel port to connect devices such as a printer, scanner and etc. The
parallel port is also called a printer port.
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data
Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Active
LED
Link
LED
Port 2-channel 4-channel 5.1-channel 7.1-channel
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Microphone In Microphone In
Orange - - Center/Subwoofer Out Center/Subwoofer Out
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey - - - Side Speaker Out
