• Push the threaded sleeve to connection terminal until both are locked tightly on the inverter.
• Loosen the cap on the terminal, pull the threaded sleeve out of the socket.
B. GRID Wiring

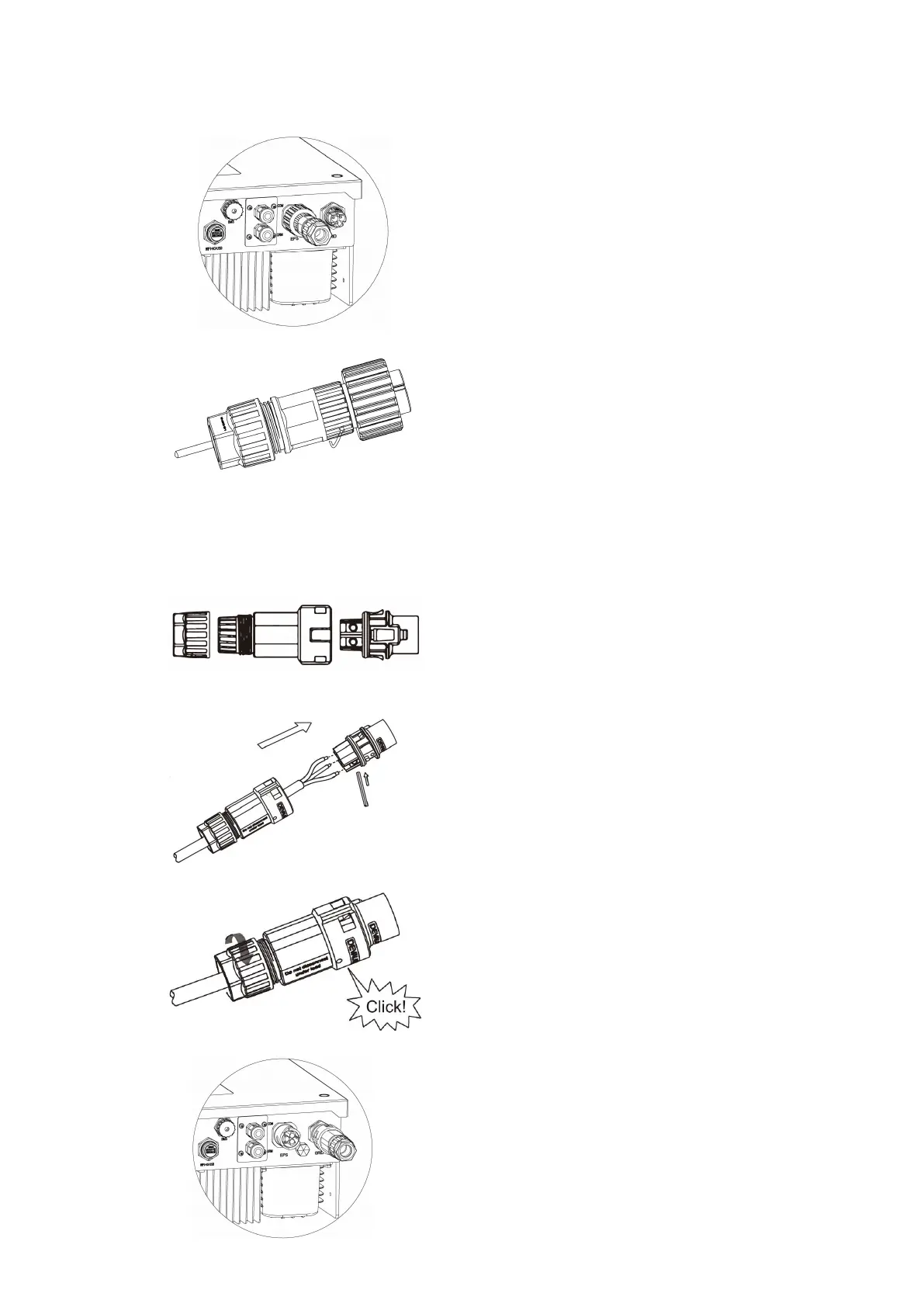

• Separate the GRID plug into three parts as below.
- Hold middle part of the female insert, rotate the back shell to loosen it, detach it from female inset.
- Remove the cable nut (with rubber insert) from the back shell.
• Slide the cable nut and then the back shell onto the cable. Install the cable into the plug terminal and
lock the screw, torque is (2.0+/-0.2 N.m).
• Push the threaded sleeve into the socket, tighten up the cap on the terminal.
• Push the threaded sleeve to connection terminal until both are locked tightly on the inverter.
