S Series User Manual www.fox-ess.com P a g e | 13
➢

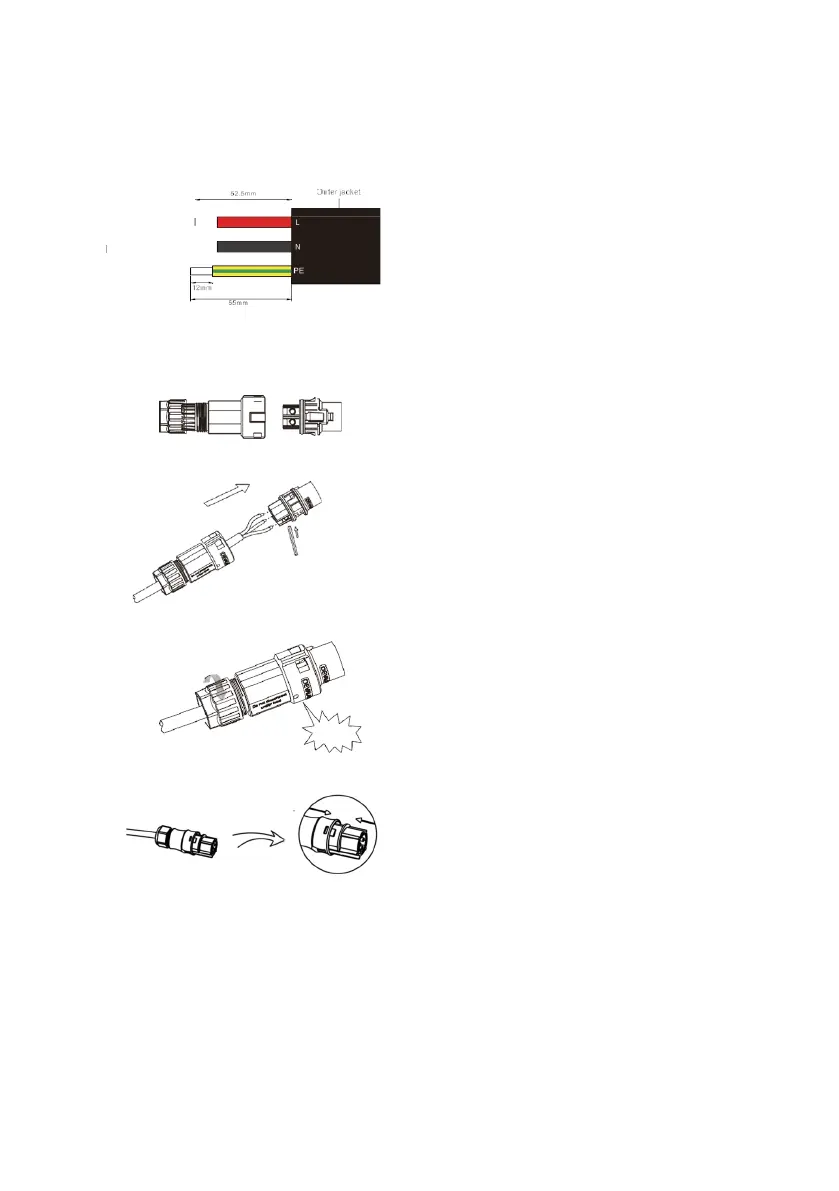

Trim the wires
:
-
Trim all the wires to 52.5mm and the PE wire to 55mm.
-
Use the crimping pliers to trim 12mm of insulation from all wire ends as below.
➢ Separate the AC plug into three parts as below.
- Hold the middle part of the female insert, rotate the back shell to loosen it, and detach it from female inset.
- Remove the cable nut (with rubber insert) from the back shell.
➢ Slide the cable nut and then the back shell onto the cable.
➢ Push the threaded sleeve into the socket, tighten up the cap on the terminal.
➢ Push the threaded sleeve to connection terminal until both are locked tightly on the inverter.
➢ Remove the AC connector, press the bayo-nut out of the slot with a small screwdriver or the unlock tool and
pull it out, or unscrew the threaded sleeve, then pull it out.
