Foxwell F1000B OBDII&Battery Tester User’s Guide_ English Version_V1.00

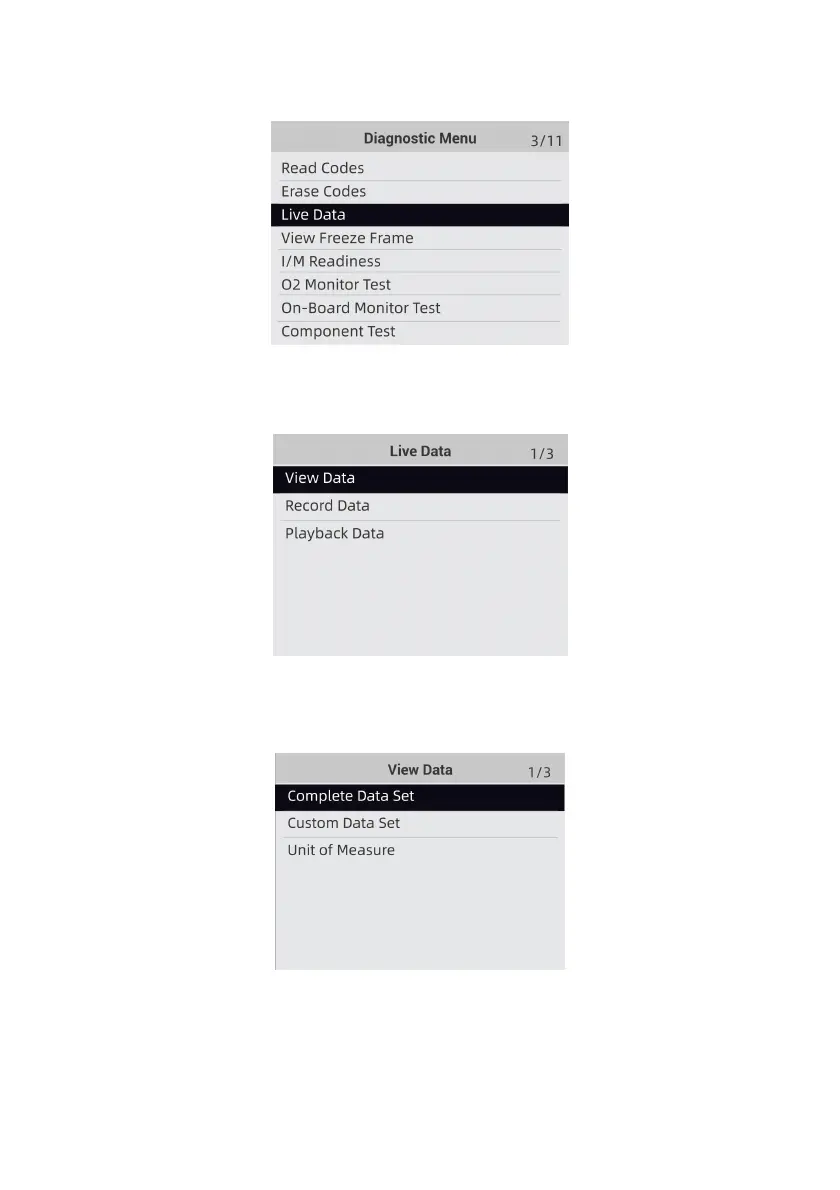

1. Use the UP/DOWN key to highlight Live Data from Diagnostic Menu and press the ENTER
key.
Figure 4-8 Sample Diagnostic Menu Screen
2. Select View Data from the list and press ENTER key to confirm.
Figure 4-9 Sample Live Data Menu Screen
3. Select Complete Data Set from the menu and press the ENTER key to display the data stream
screen.
Figure 4-10 Sample View Data Menu Screen
4. Scroll with the up and down arrow keys to scroll through data to select lines, and left and right
arrow keys to scroll back and forth through different screens of data.
