Foxwell F1000B OBDII&Battery Tester User’s Guide_ English Version_V1.00
28

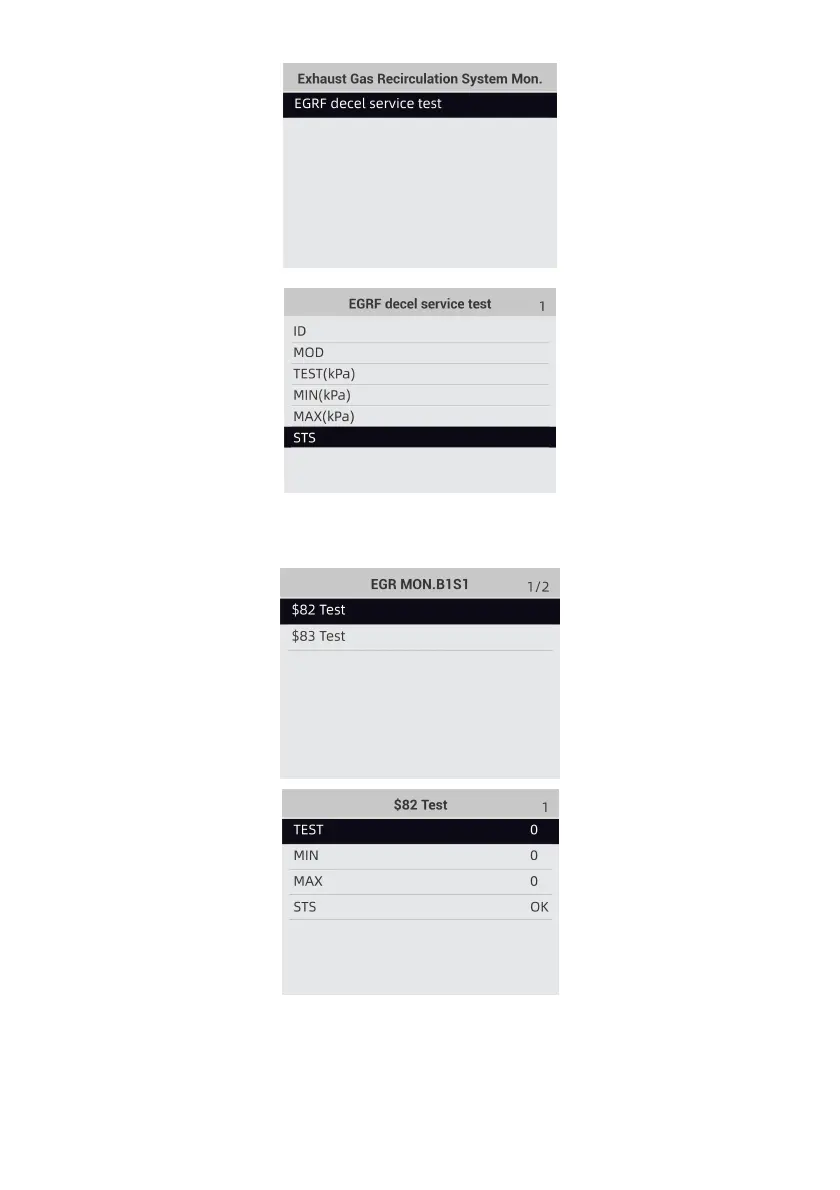

Figure 4-41 Sample Non-CAN vehicle test screen
For CAN vehicles, test screen is illustrated as below:
Figure 4-42 Sample Can vehicle test screen
4. Press the BACK key to exit and return.
4.8 Component Test
