Foxwell F1000B OBDII&Battery Tester User’s Guide_ English Version_V1.00

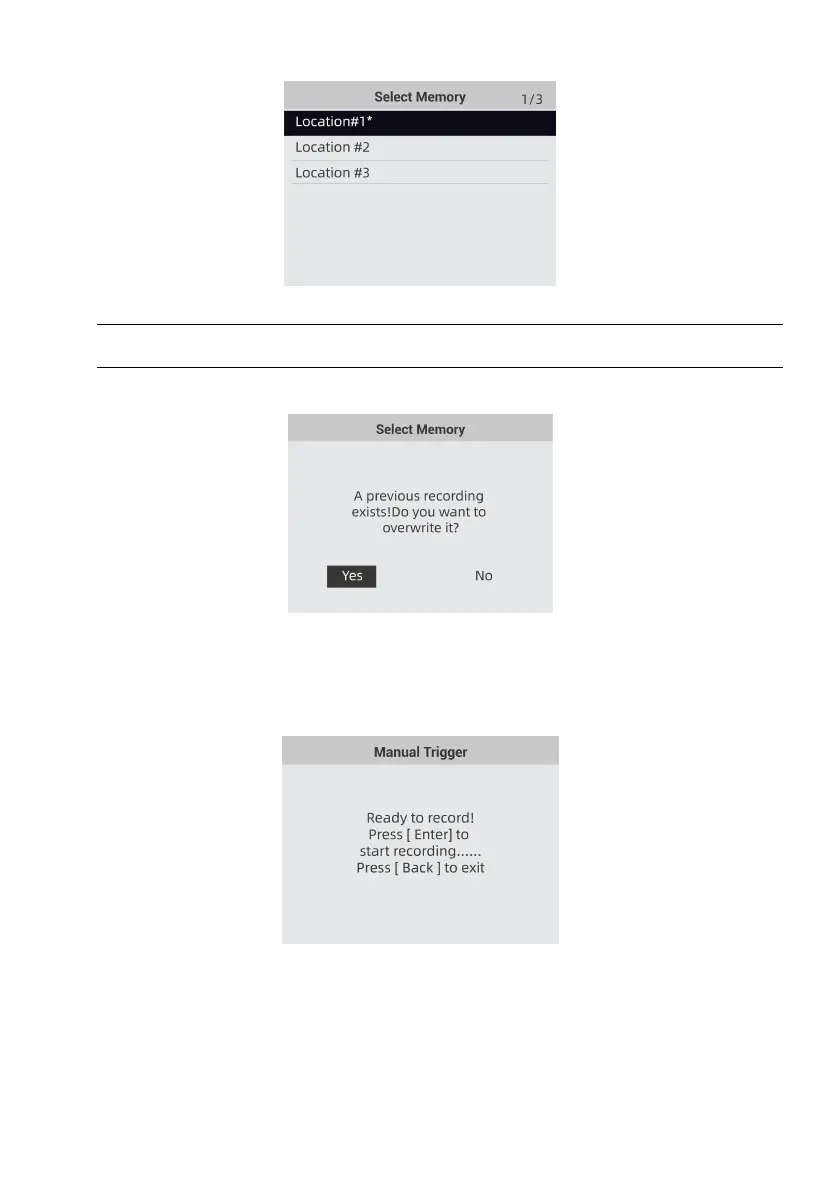

Figure 4-20 Sample Select Memory Screen
NOTE
The asterisk (*) on the screen indicates that a recording currently exists in this memory location.
If an area with an asterisk (*) was picked, a message prompting to erase data displays.
Figure 4-21 Sample Erase Recording Screen
5. If the recording is to be overwrited, selected Yes; if data is not to be overwrited, pick No to
return to Select Memory screen and choose another one.
6. If Manual Trigger is selected, following screen displays:
Figure 4-22 Sample Manual Trigger Recording Screen
7. If DTC Trigger is picked, following screen displays:
