AutoMaster Pro NT414 Manual_English_V1.00

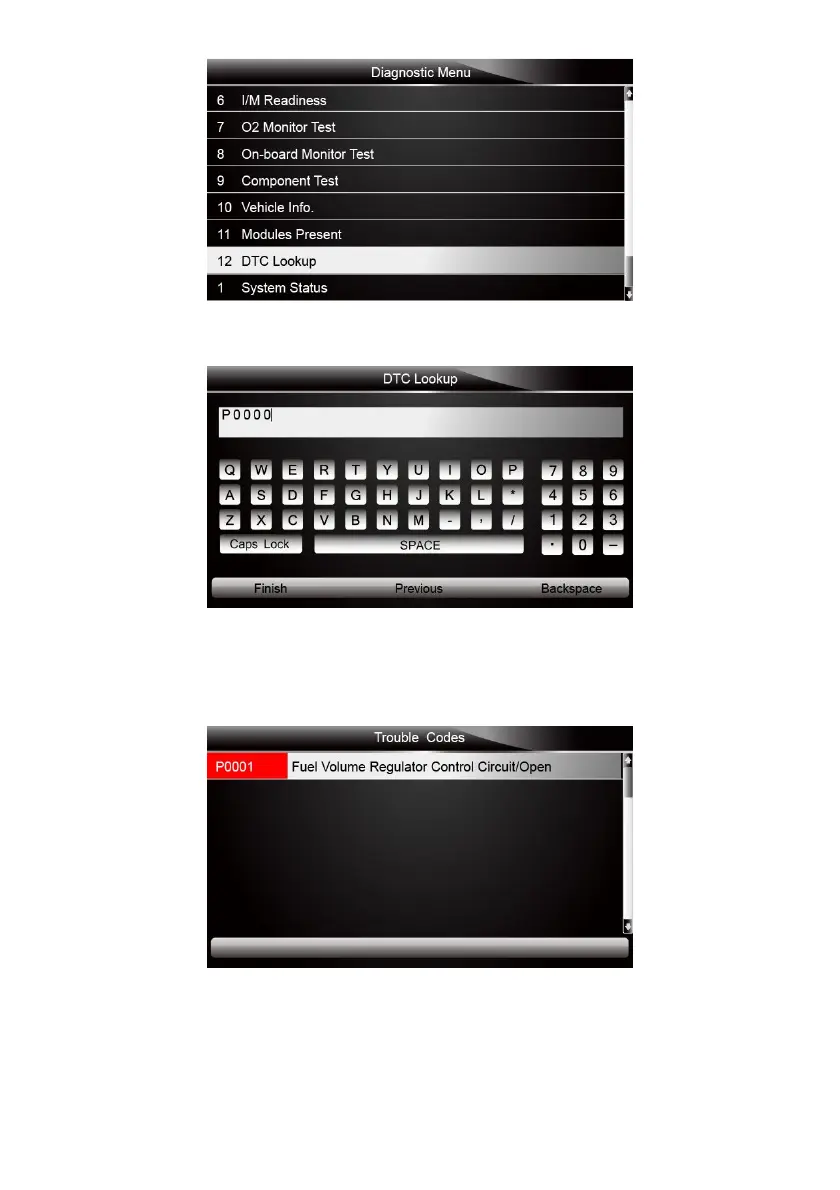

Figure 5-39 Sample Diagnostic Menu Screen
2. Enter a valid code number and press the function key Finish.
Figure 5-40 Sample DTC Lookup Screen
3. A screen with code number and its definition displays. If definition could not be found (SAE or
Manufacturer Specific), the scanner displays “DTC definition not found! Please refer to vehicle
service manual!” If a P1xxx, C1xxx, B1xxx or U1xxx code is entered, select a vehicle make to
look for DTC definitions. Press the Back key to exit.
Figure 5-41 Sample Trouble Codes Screen
