2.2 BM-Lite Adapter Flex Cable
BM-Lite adapter flex cable (Part number: 100020709)
The BM-Lite Adapter Flex Cable supports the SPI interface only. It does not have the UART TX
signal connected. The UART RX is connected to Ground.
To use UART a regular flex cable and can be used. This is not included in the BM-Lite package.
2.3 FPC5924 Adapter Board
FPC5924 adapter board (Part number: 100015050)
The FPC5924 Adapter Board is a breakout board for the BM-Lite Adapter Flex Cable.

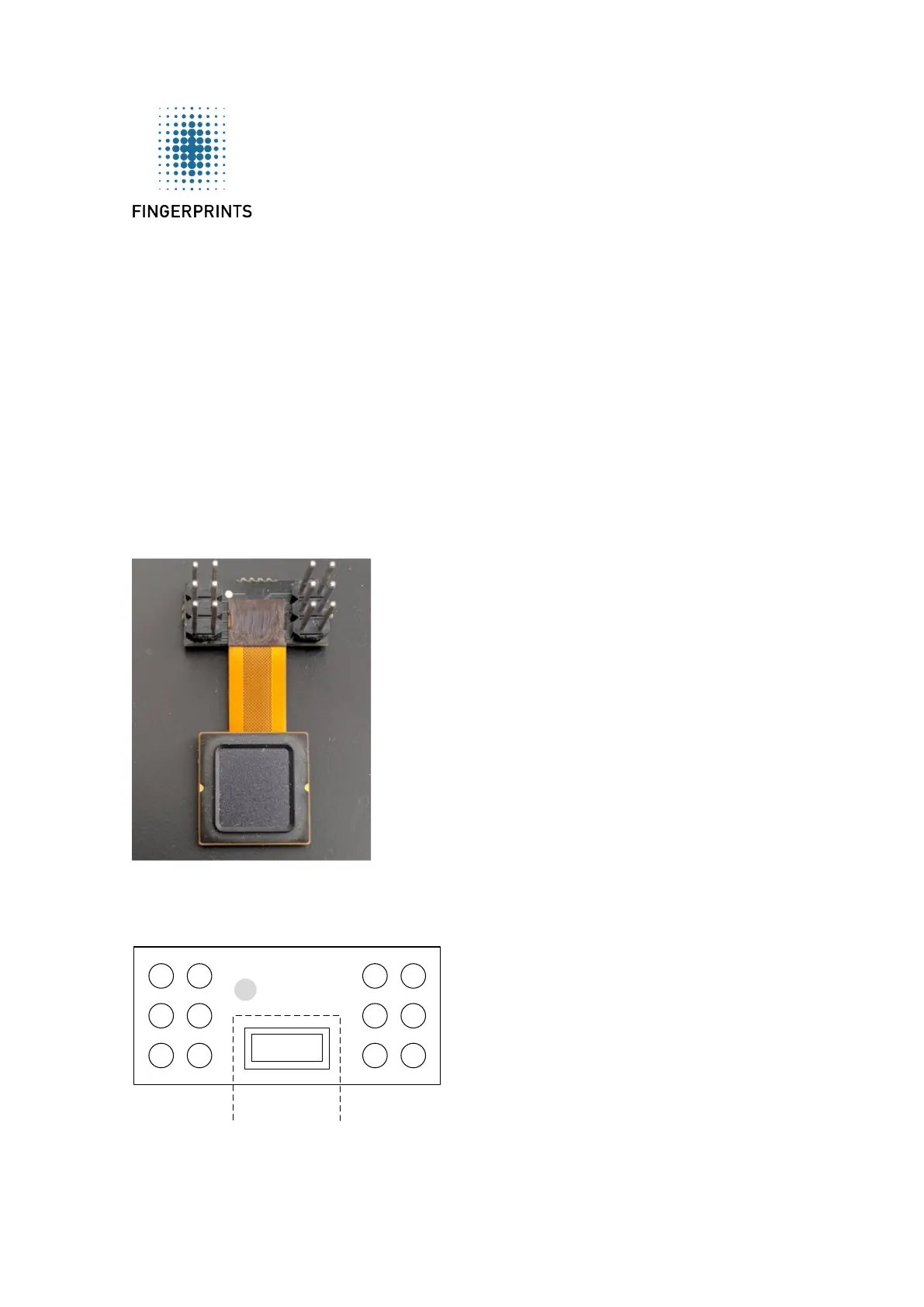

Showing how the BM-Lite Flex Cable should be mounted on the FPC5924 board.
1
3
5
2
4
6
1
3
5
2
4
6
CN1
CN2 CN3
Pinout of the FPC5924 breakout board.
