2.4 FPC5832 FTDI USB Adapter

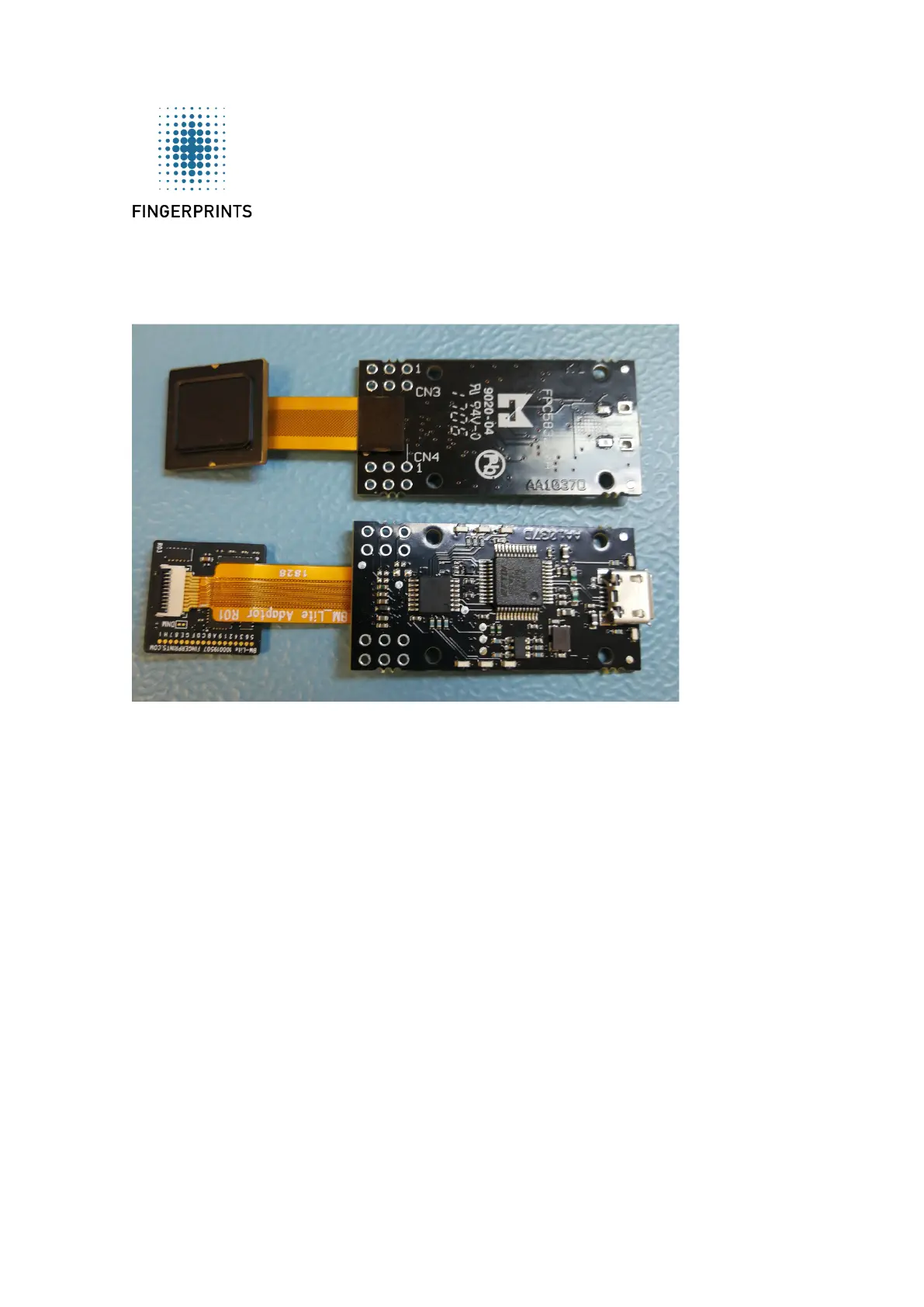

FPC5832 FTDI USB Adapter (Part number: 100015089)
The FPC5832 is an USB-SPI adapter using an FTDI FT232H converter. The CN3 connector is pin-
compatible with CN2 on FPC5924, and CN4 is pin-compatible with CN3 on FPC5924.
