FPI P36D Zero Clearance Direct Vent Gas Fireplace 25
INSTALLATION
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional rigid pipe adaptor when using rigid pipe vent systems (Part # 510-994).
VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
RIGID PIPE SYSTEM
(Propane & Natural Gas)

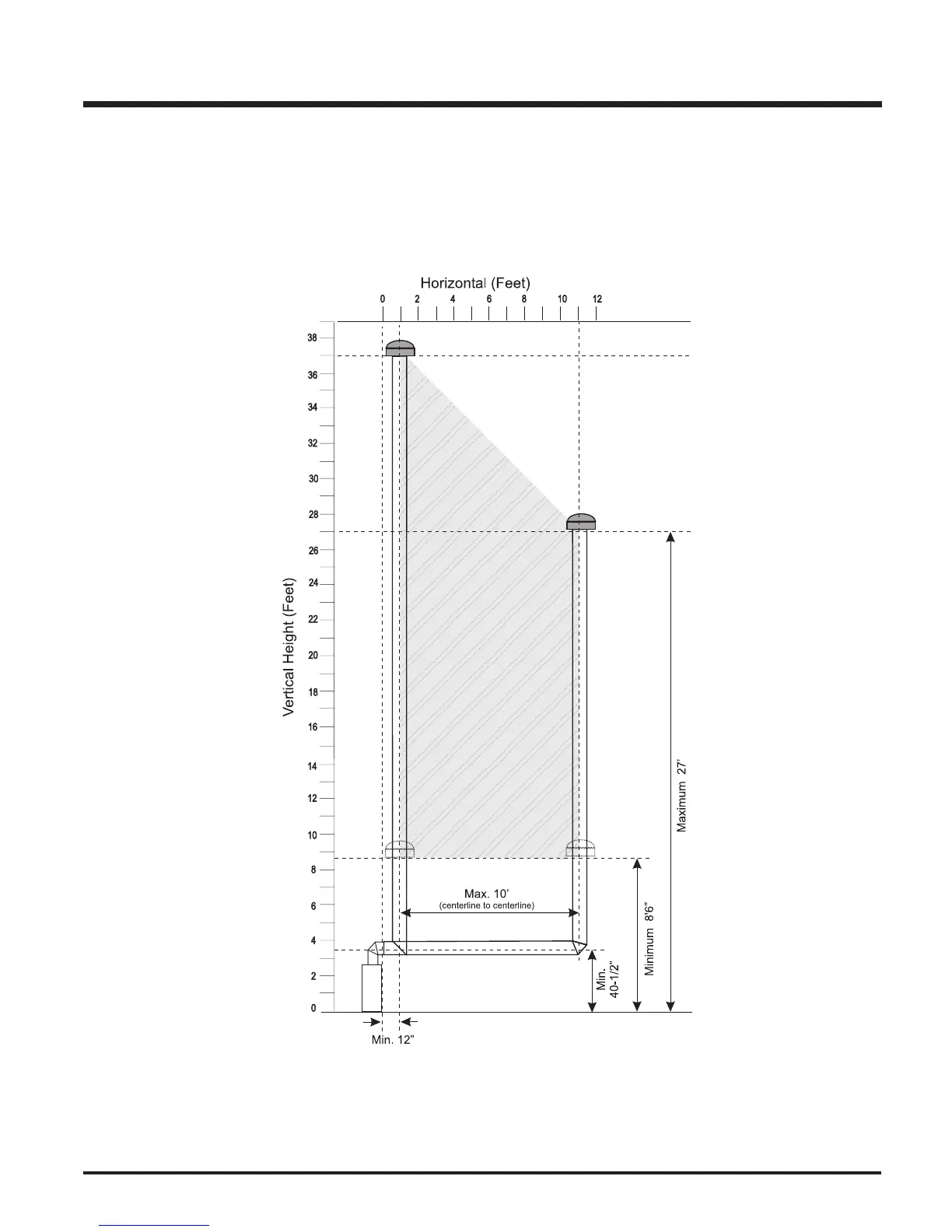

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using two 90
o
elbow, with
rigid pipe vent systems for Propane and Natural Gas.
