FPI P36D-NG - Optional Fan Installation

FPI P36D Zero Clearance Direct Vent Gas Fireplace
60
THE KENSINGTON, WESTMINSTER & BALMORAL FRONT

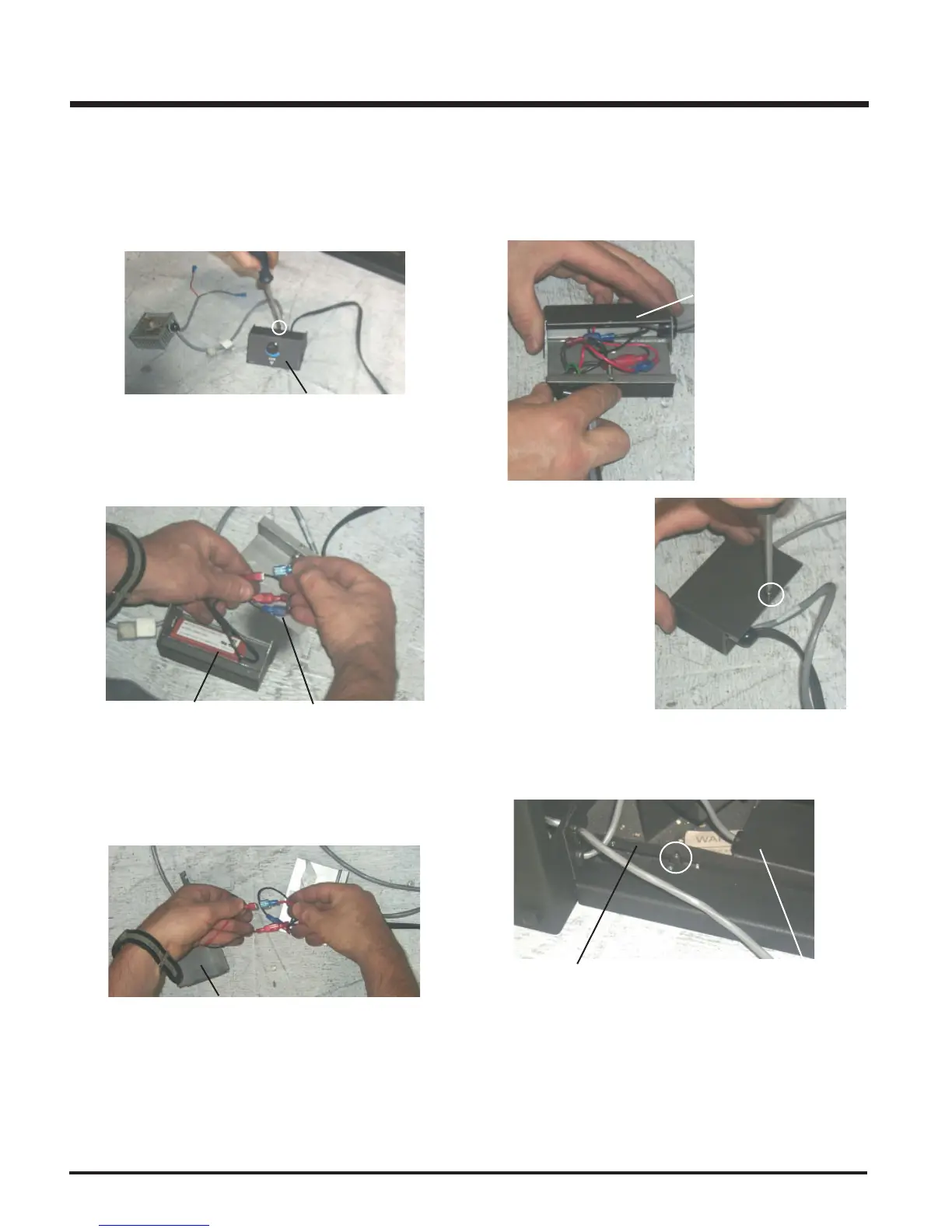

OPTIONAL FAN INSTALLATION
1) Remove fan cover by undoing screw.
2) Disconnect fan switch wires and discard fan cover with wires.
Fan Cover
3) Connect new fan control box wires to the existing fan plug wires
(red to red, black to black).
Disconnect
Wires
Fan Control Box
Fan Control Box
Vertical Hinge
Bracket
Discard Fan
Cover with Wires
New Fan
Control Box
Secure with screw.
4) Tuck wires in new fan control box and secure with screw.
5) Place fan control box under left side of firebox and secure to left side
vertical hinge bracket supplied screw.
PALACE SERIES OPTIONS
