FPI P36D-NG - Main Assembly

FPI P36D Zero Clearance Direct Vent Gas Fireplace 63
PARTS LIST

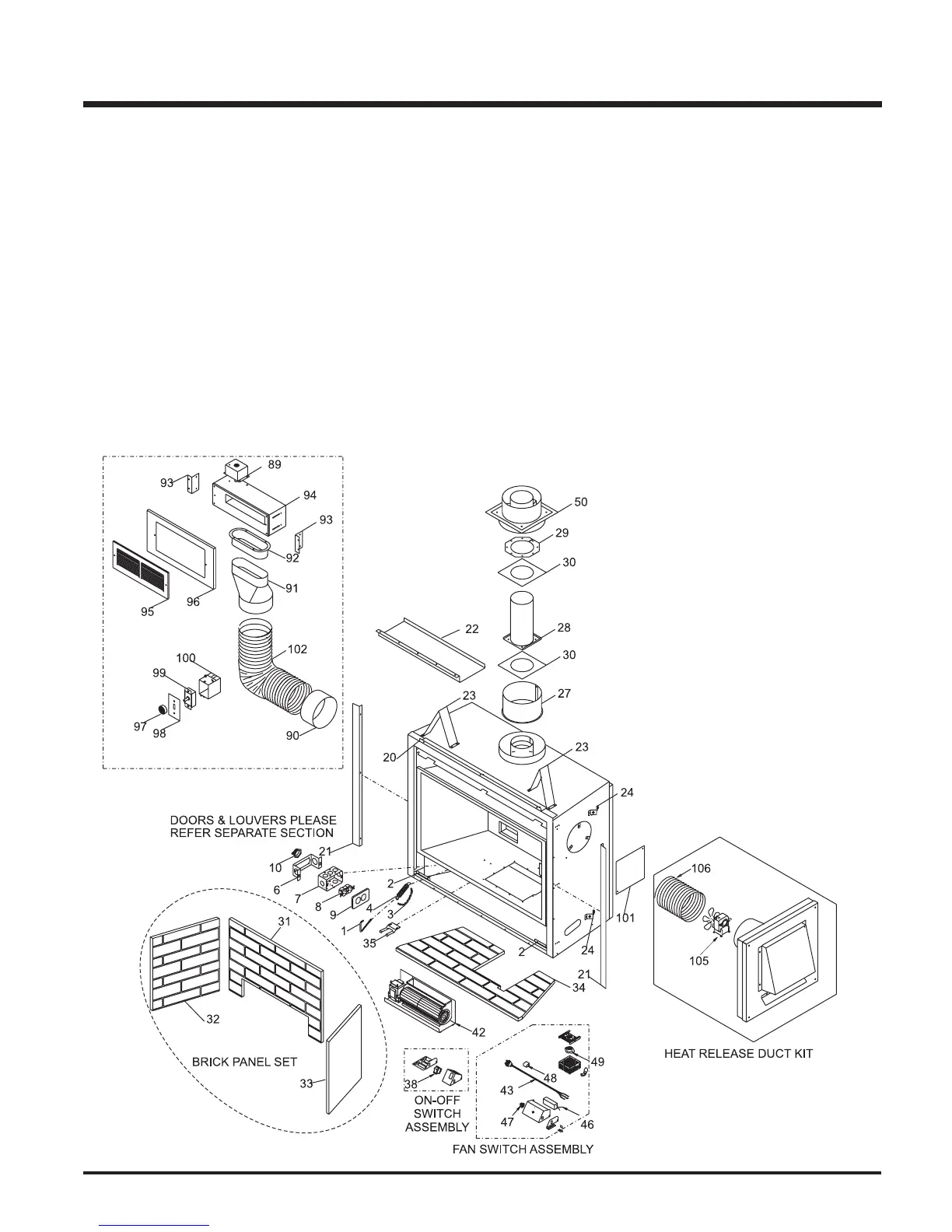

MAIN ASSEMBLY
Part # Description Part # Description Part # Description
1) 948-253 Door Handle
2) 510-026 Hinge Bracket - Left/Right
3) 948-045 Chain
4) 948-115 Spring
6) 430-129 Receptacle Box Mount
7) 910-429 Box - Receptacle
8) 910-428 Duplex Receptacle
9) 910-430 Cover - Receptacle
10) 904-687 Clamp Connector
20) 510-033 Top Nailing Strip
21) 510-064 Side Nailing Strip
22) 780-010 Baffle Plate
23) 780-011 Standoff - Top
24) 780-013 Standoff - Side/Back
27) * Outer Flue Collar
28) * Inner Flue Collar Assy
29) * Flue Mounting Plate
30) * Gasket for Flue Collar
780-928 Brick Panel Set - Standard
780-901 Brick Panel Set - Standard Brown
780-902 Brick Panel Set - Standard Red
780-903 Brick Panel Set - Herringbone Brown
780-904 Brick Panel Set - Herringbone Red
31) * Brick Panel - Back
32) * Brick Panel - Left
33) * Brick Panel - Right
34) * Brick Panel - Bottom
35) * Thermodisc Bracket
432-967 Burner ON/OFF Switch Assy
38) 910-241 Switch-Burner ON/OFF(3-way)
910-899 Wire Harness-Valve to Burner
432-917 Fan & Speed Control Assy
(120 Volts) Optional
42) 910-331/P Fan Motor
432-966 Fan Switch Assy (120 Volts)
Optional
43) 910-813 Power Cord (120 Volts)
46) 910-330 Fan Speed Control Switch
47) 904-586 Knob - Speed Control
48) 910-199 Wire Holder Clip
49) 910-142 Thermodisc-Fan (Auto
ON/OFF)
910-845 Wire Harness - Plug In Fan
50) 510-994 Optional Rigid Pipe Adaptor
946-556 Optional Heat Wave Duct Kit
89) 946-004 Junction Box
90) 946-000 Round Duct Adaptor
91) 946-002 Round to Oval Adaptor
92) 946-001 Oval Duct Adaptor
93) 946-007 Angle Bracket
94) 946-517/P Fan Assembly - HeatWave
Option
95) 946-006 Grill Plate - White
96) 946-005/01 Wall Adaptor Plate - White
97) 910-417 Knob - White
98) 910-366 Switch Cover Plate - White
99) 910-412 Fan Speed Controller
100)910-367 Box - Plastic Switch
Receptacle
101)690-022 Cover Plate - Outer Box Side
102)946-010 Flexible Air Duct
946-011 Insulation 6" dia. x 24"
946-570 Heat Release Duct Kit
(Optional)
105)910-165 Fan (120 Volts)
106)946-000 Flexible Air Release Duct
918-059 Manual
512-969 Conversion Kit - NG to LP
*Not available as a replacement part.
