FPI P36D-NG - Horizontal Venting with Two Elbows

FPI P36D Zero Clearance Direct Vent Gas Fireplace 27
V1
H1
H
V
INSTALLATION

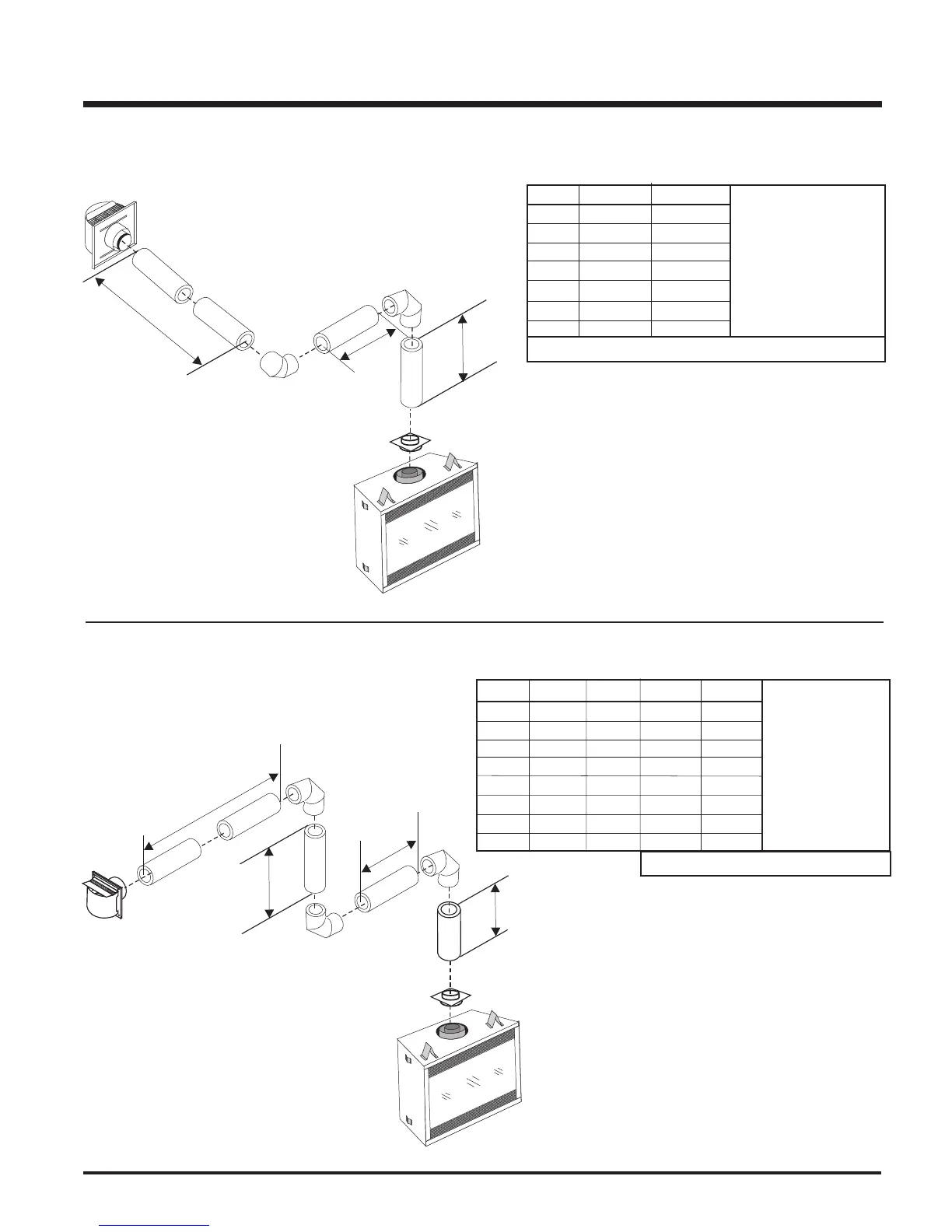

Horizontal Venting with Two (2) 90
o
Elbows
Option V H + H1
A) 0' Min. 2' Max.
B) 1' Min. 3' Max.
C) 2' Min. 4' Max.
D) 3' Min. 5' Max.
E) 4' Min. 6' Max.
F) 5' Min. 7' Max.
G) 6' Min. 8' Max.
With these options, maxi-
mum total pipe length is 30
feet with minimum of 6 feet
total vertical and maximum
8 feet total horizontal.
Please note minimum 1
foot between 90
o
elbows
is required.
Horizontal Venting with Three (3) 90
o
Elbows
Option V H V + V1 H + H1
A) 0' Min. 1' Max. 1' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.
With these options,
max. total pipe length
is 30 feet with min. of
12 feet total vertical
and max. 9 feet total
horizontal.
Please note min. 1
foot between 90
o
elbows is required.
One 90
o
elbow = Two 45
o
elbows.
One 90
o
elbow = Two 45
o
elbows.
H
H1
V
Lengths do not include elbow indicated.
Lengths do not include elbow indicated.
