FPZ SCL K07-MS - Installation Diagrams and Sketches; Pressure Service Installation Diagrams; Parallel Pressure Service Diagrams; Series Pressure Service Diagrams

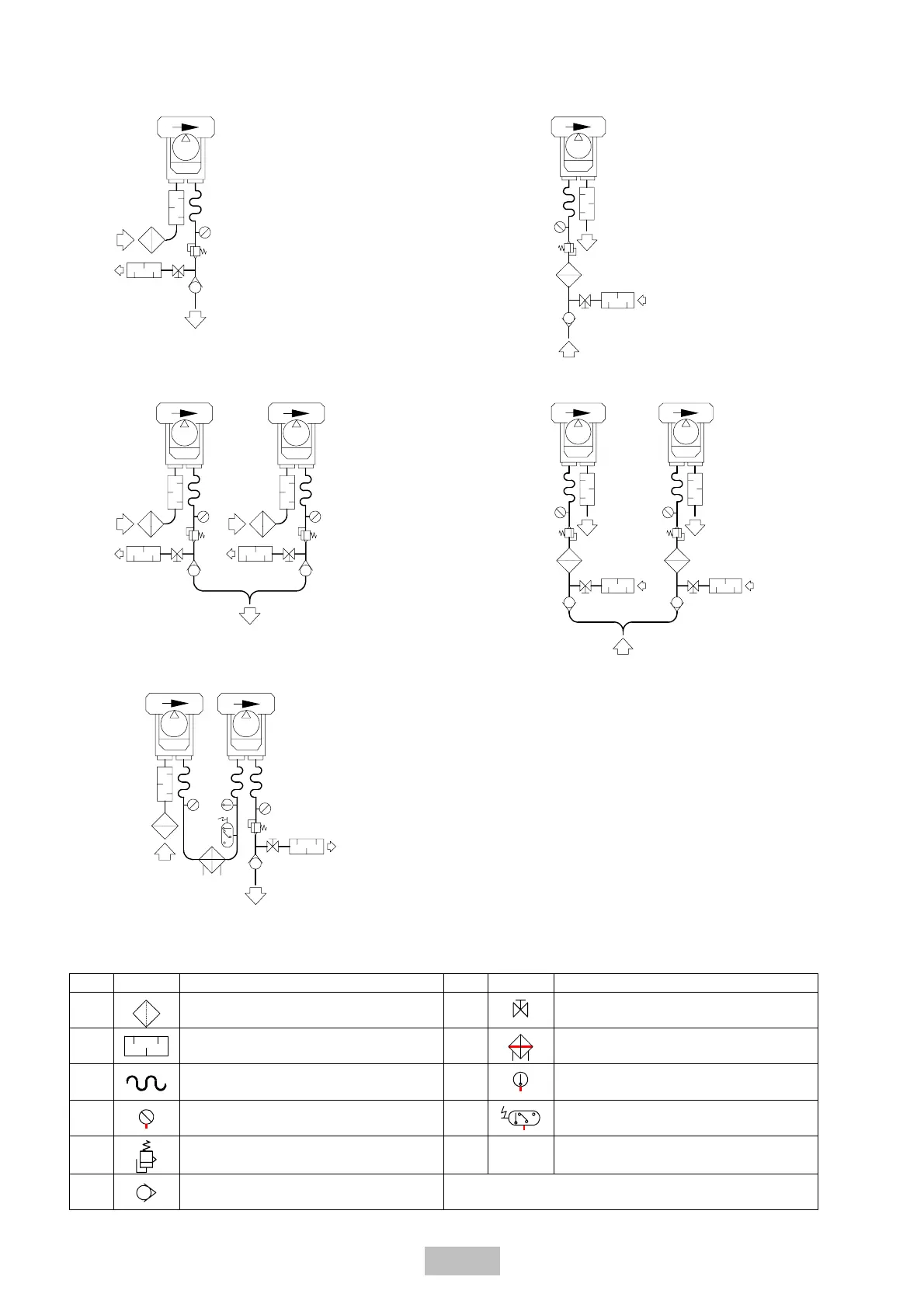

2. INSTALLATION SKETCHES
2.1 PRESSURE SERVICE
2.2 PARALLEL PRESSURE SERVICE
2.3 SERIES PRESSURE SERVICE
2.6 LIST ACCESSORIES
2.4 VACUUM SERVICE
2.5 PARALLEL VACUUM SERVICE
Item
Denomination
Item
Denomination
1
Filter – Inline filter 7
Valve
(2)
Silencer (8)
Cooler
3
Flexible coupling
(9)
Thermometer
4
Pressure – Vacuum gauge (10)
Temperature switch
5
Safety valve
6
Non return valve
(x) IF NECESSARY
GB - 15/39
