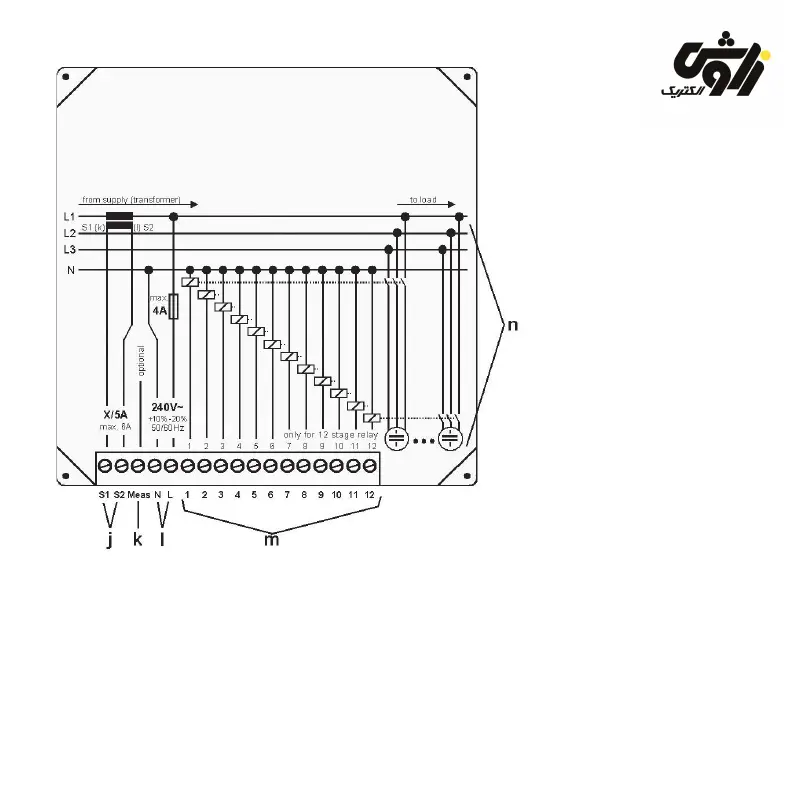

Figure 2 Rear view
j Connection for the current transformer
k Optional connector for improved
measurement of harmonic wave
l Connector for power supply to the
control relay
m Connectors for the control contacts that
switch the contactors. The shared pole
is connected to terminal ´L´.
n Typical connection
