Framo Cargo Pump SD125-5/ SD150-5
INSTRUCTION FOR MAINTENANCE AND REPAIR
No.
Date/sign.:
Page:
Rev. B:
1000-0131-4
Jan99/AGAa
19 of 21
22Feb06/JEB
3.4 Dismantling of hydraulic motor
Standard tools Special tools
Name Name
Allen key 10 mm Extractor for loosen hydr. motor
Spanner 17 mm Jack
Spanner 18 mm
Spanner 19 mm
Spanner 24 mm
Snap ring plier
Volute casing and bearing housing have to be removed.
Drain the pump’s hydraulic section (ref. section 3.3).

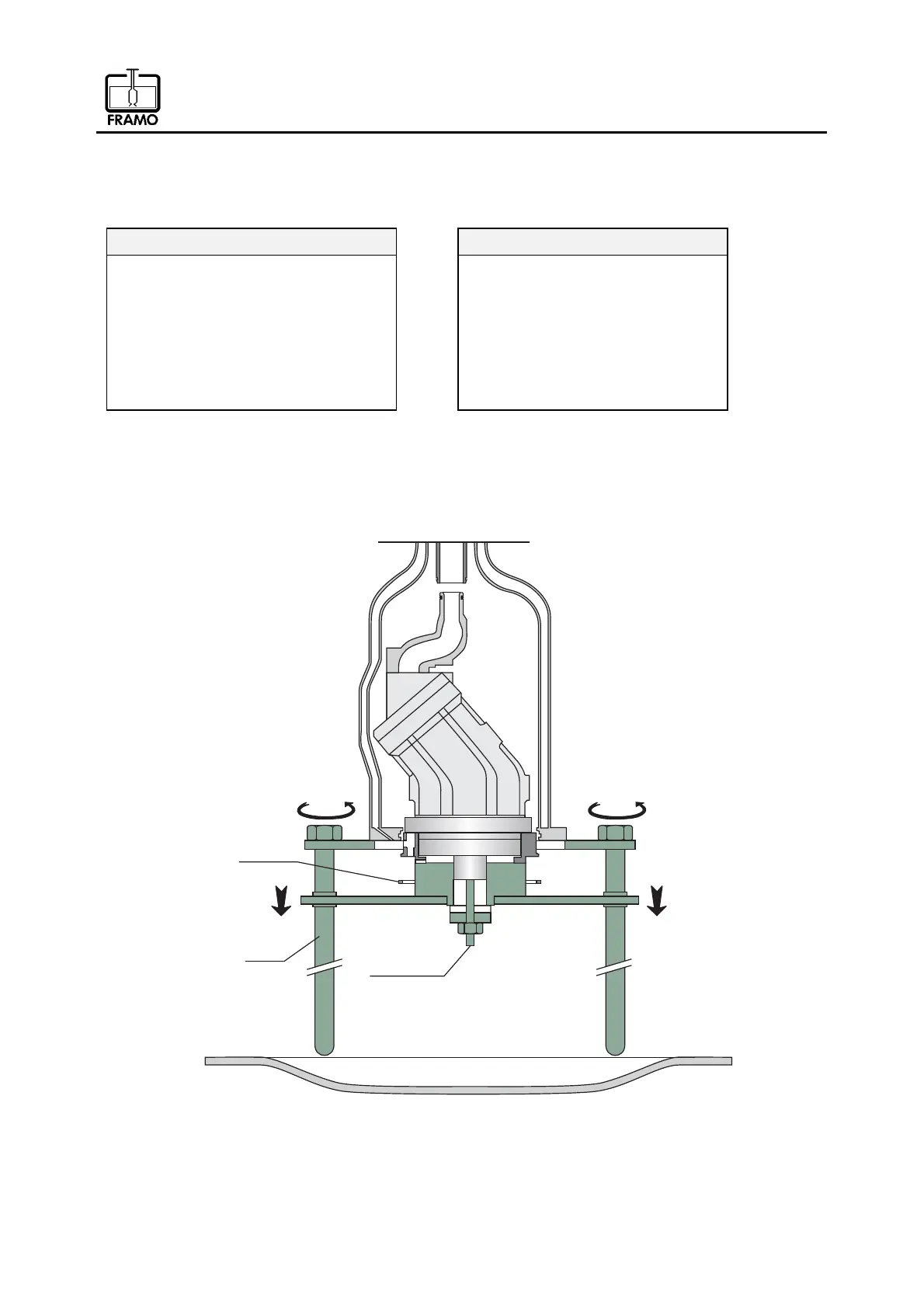

Install the jack . Remove circlips. If necessary use extractor to loosen the hydraulic motor from the
high pressure pipe. Lower the hydraulic motor by using the jack.
Ö¿½µ
Û¨¬®¿½¬±®
Ý·®½´·°-
Fig. 20
