Framo SD150-5 - Dismantling of Bearing Housing

Framo Cargo Pump SD125-5/ SD150-5
INSTRUCTION FOR MAINTENANCE AND REPAIR
No.
Date/sign.:
Page:
Rev. B:
1000-0131-4
Jan99/AGAa
15 of 21
22Feb06/JEB
3.2 Dismantling of bearing housing
Standard tools Special tools
Name Name
Snap Ring Plier J4 Extractor for impeller hub
Snap Ring Plier A3 Extractor for sleeve
(to be used with extractor for impeller hub)

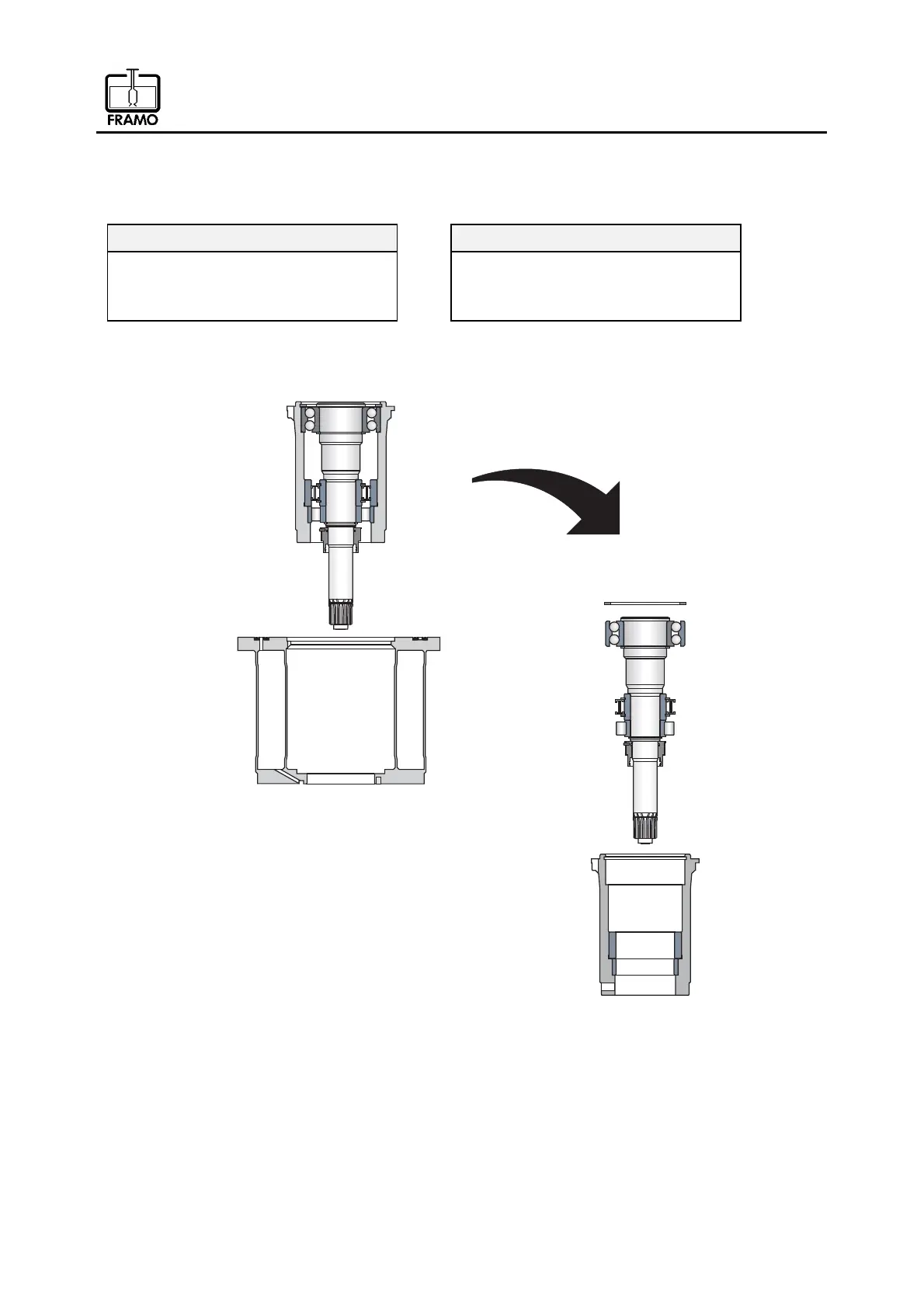

Pull out the shaft, ball-bearing, rotating part of back-stop unit, and roller bearing as a unit.
Fig. 16
If the back-stop unit or the cylindrical roller bearing is to be replaced, always change both rotating
and stationary parts.
