Framo SD150-5 - Assembling Sequence After Repair

Framo Cargo Pump SD125-5/ SD150-5
INSTRUCTION FOR MAINTENANCE AND REPAIR
No.
Date/sign.:
Page:
Rev. B:
1000-0131-4
Jan99/AGAa
20 of 21
22Feb06/JEB
3.5 Assembling sequence after repair
Hydraulic motor
If a new hydraulic motor is installed:
- check that both plugs at T-ports are removed
- check that the shaft seal is removed.
É·¬¸±«¬-¸¿º¬-»¿´
Ú»»´»®
É·¬¸±«¬°´«¹-¿¬Ìó°±®¬-

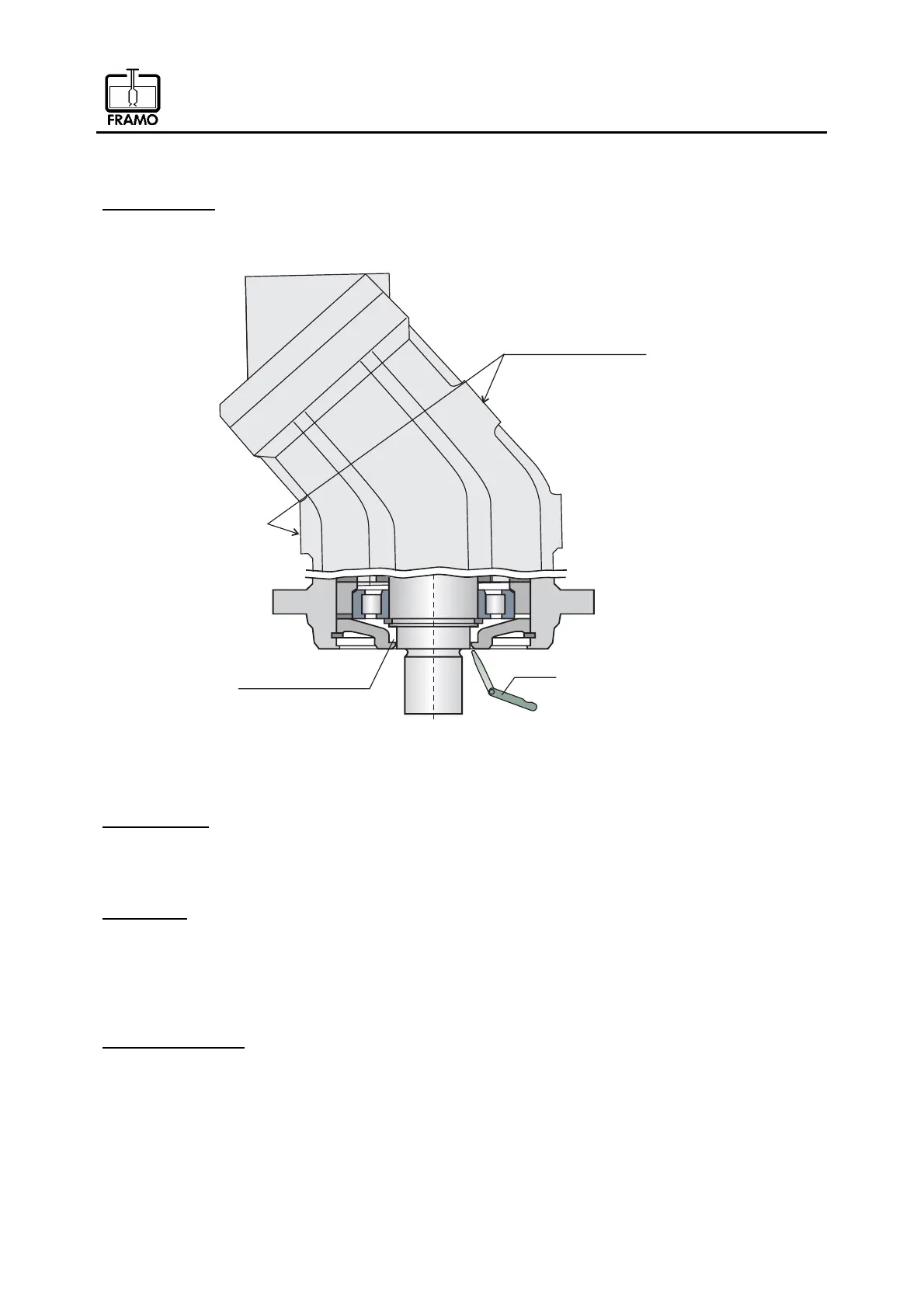

Fig. 21
Check position of hydraulic motor and motor flange according to assembly drawing.
Check that circlips for assembling motor in cover is in correct position (ref. fig.20).
Back Stop Unit
Check direction of back stop unit.
(Counter clockwise, seen from threaded end of the shaft.)
Ball bearing
Ball mounting slot pointing downwards against the back stop unit when mounting ball bearing.
When installing shaft into bearing housing, rotate the shaft for easy entering of rotating part
of back stop unit.
Mechanical Oil Seal
Assemble mechanical seal according to instruction 290-36-4E.
Clean seal faces with clean rags wetted with denaturated alcohol.
