Framo SD150-5 - Repair Instruction; Dismantling of Mechanical Oil Seal

Framo Cargo Pump SD125-5/ SD150-5
INSTRUCTION FOR MAINTENANCE AND REPAIR
No.
Date/sign.:
Page:
Rev. B:
1000-0131-4
Jan99/AGAa
12 of 21
22Feb06/JEB
3 REPAIR INSTRUCTION
3.1 Dismantling of mechanical oil seal
Standard tools Special tools
Name Name
Allen key 6 mm Extractor for impeller
Extractor for sleeve
(to be used with extractor for impeller)
Assembling cylinder
(for protection)
Assembling tool (for mech. oil seal)
Allen key 10 mm
Spanner 18 mm
Spanner 19 mm
Snap ring plier A2
Threaded bolt M12x 250, 2 pcs
Hexagon nut M12, 2 pcs
Washer 12, 2 pcs

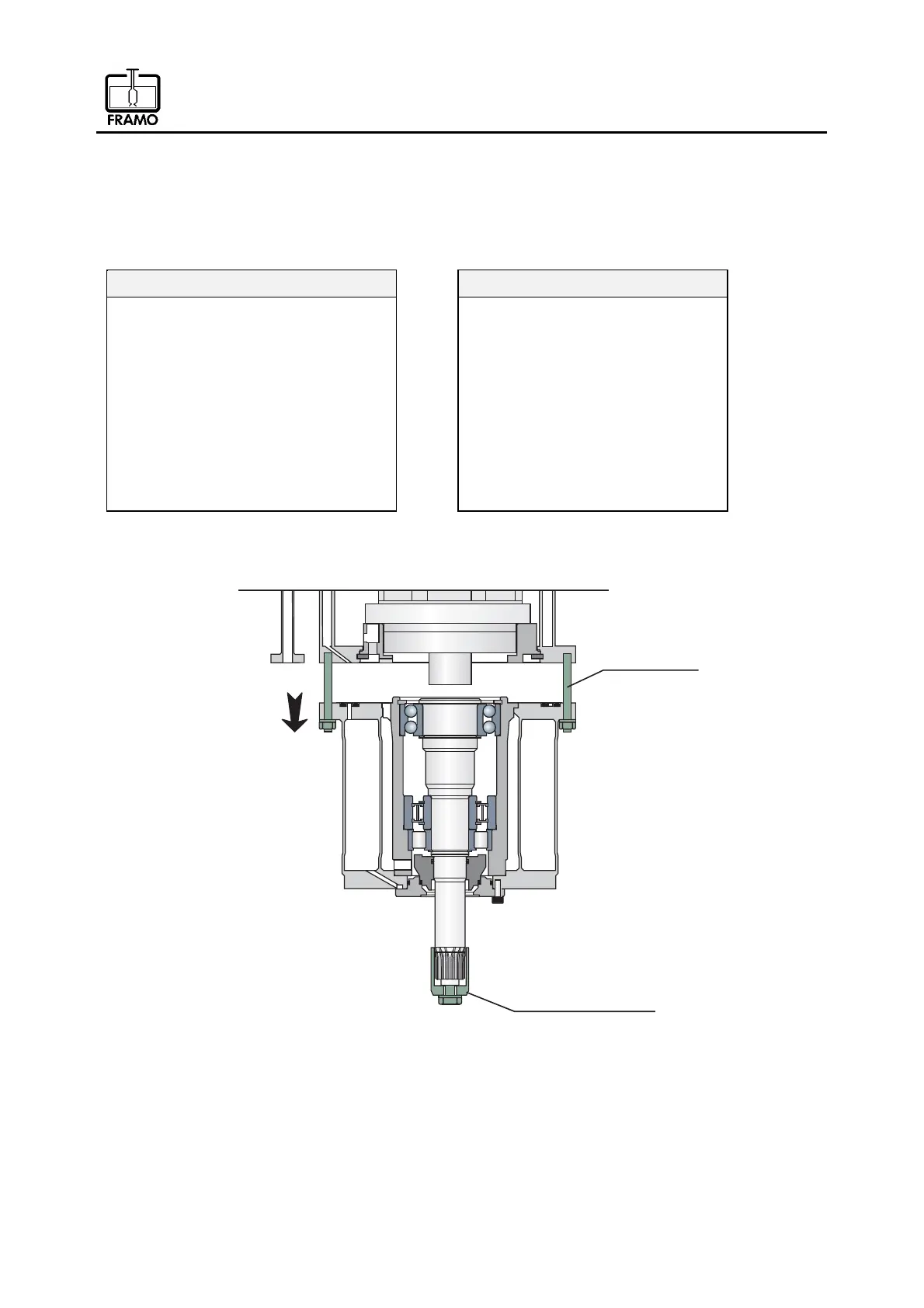

Remove the bearing housing from the pump casing. Use extractor bolts M12.
Û¨¬®¿½¬±®¾±´¬-
ß--»³¾´·²¹½§´·²¼»®
º±®°®±¬»½¬·±²
Fig. 12
