When the software limit is or will be reached within the next moving the turntable will refuse to start. In
that case you must reduce your requirement, or go in the other direction.
If you use automatic commands via GPIB interface, this software will serve you also as a display.

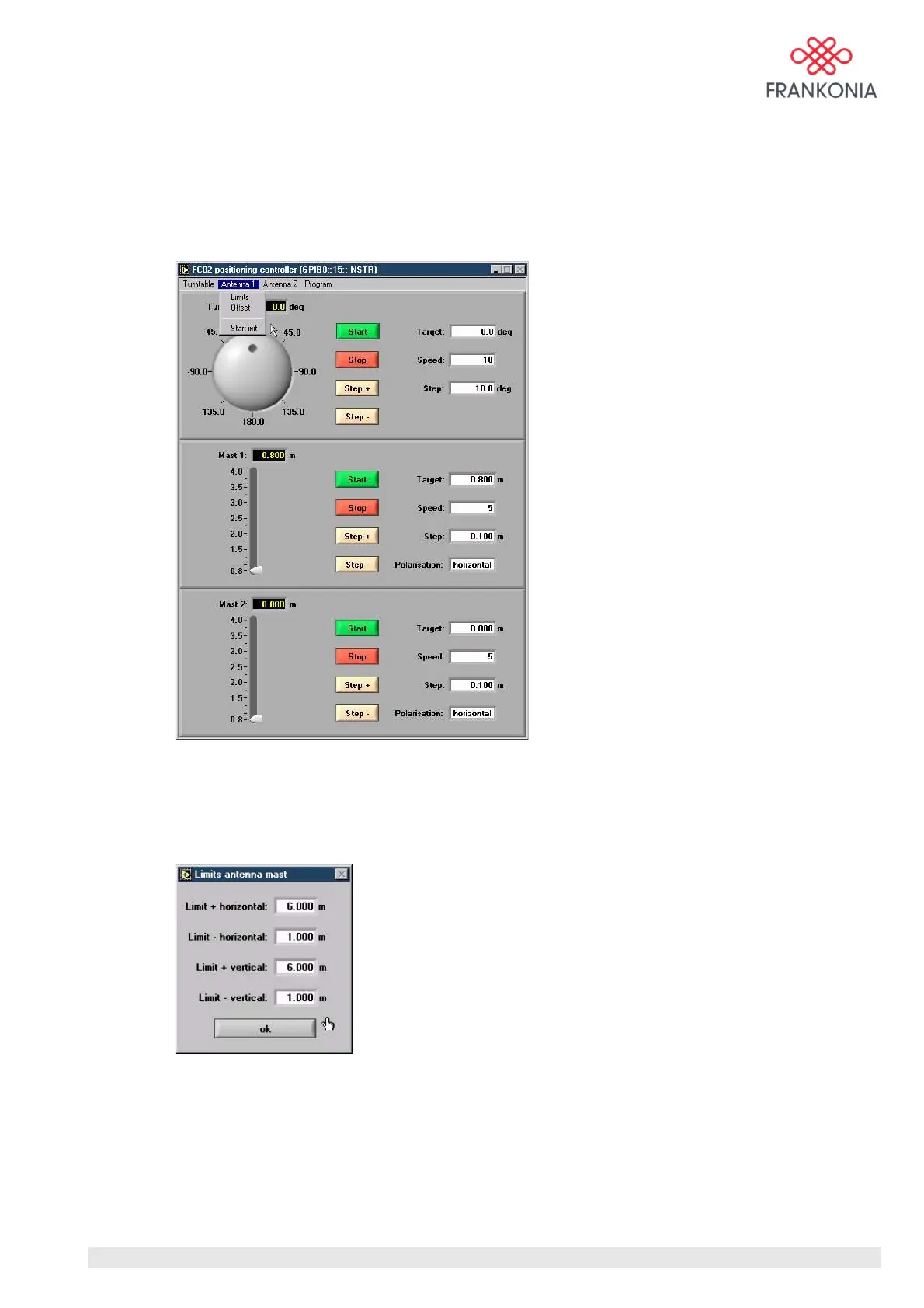

Antenna mast controls
The software limits of the antenna mast can be changed if needed. As a factory setting these values are set
to 0,8m and 4m (in case of 4m antenna mast) or 6m (in case of 6m antenna mast).
We have defined these values in order to avoid any problem with standard use of antennas.
An offset is available in order to offer the possibility to modify the init position if necessary, or to avoid
any trouble with antennas with different sizes. As a standard this value is set to 0. This value must be
entered in m.
MA_FC02_(Rev2_1) - 9/06 / Version 1 / Rev:2.1
13 / 24
