with the bracket facing the front section of
the hood upper cupboard, Fig. 3B. The coo-
ker hood is then screwed into the brackets.
Reinstall motor unit and filter.

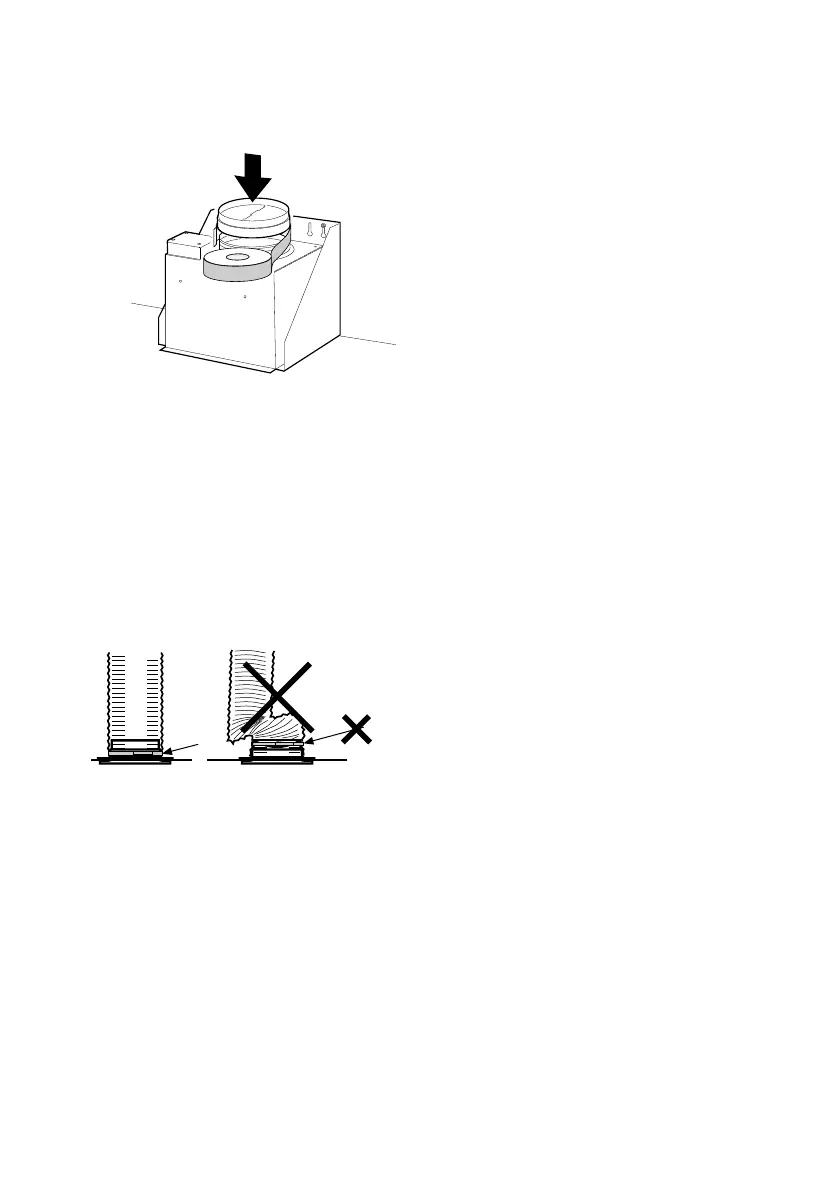

Fig. 4
Install and tape the cold draught protection
in place, Fig. 4.
If the connection is Ø 125 mm, a reducing
coupling sleeve must be used. The reducing
coupling sleeve is taped to the cold draught
protection.
Connection to exhaust flue
Connect the cooker hood with a pipe or
tubing Ø160 mm.
Fig. 5
Attention!
When using connecting tubing, the tub-
ing must be stretched and installed di-
rectly adjacent to the connection, Fig. 5.
Removal of protective plastic
Remove all protective plastic from the filter
and any other parts of the product.
991.0357.786/D000000006688/180157/2021-09-24 11
