INSTALLATION
The cooker hood is intended for installation
built into cupboards. The cooker hood is
equipped with a motorised damper, LED
lamps and metal mesh filter. Installation,
use, care, maintenance etc., are described
in these instructions.
TECHNICAL INFORMATION
267
Ø160
Ø150
25,9
30
8
11
97
96,9
216
244
265
235
598
450/650
179
165,5
309
Max 444

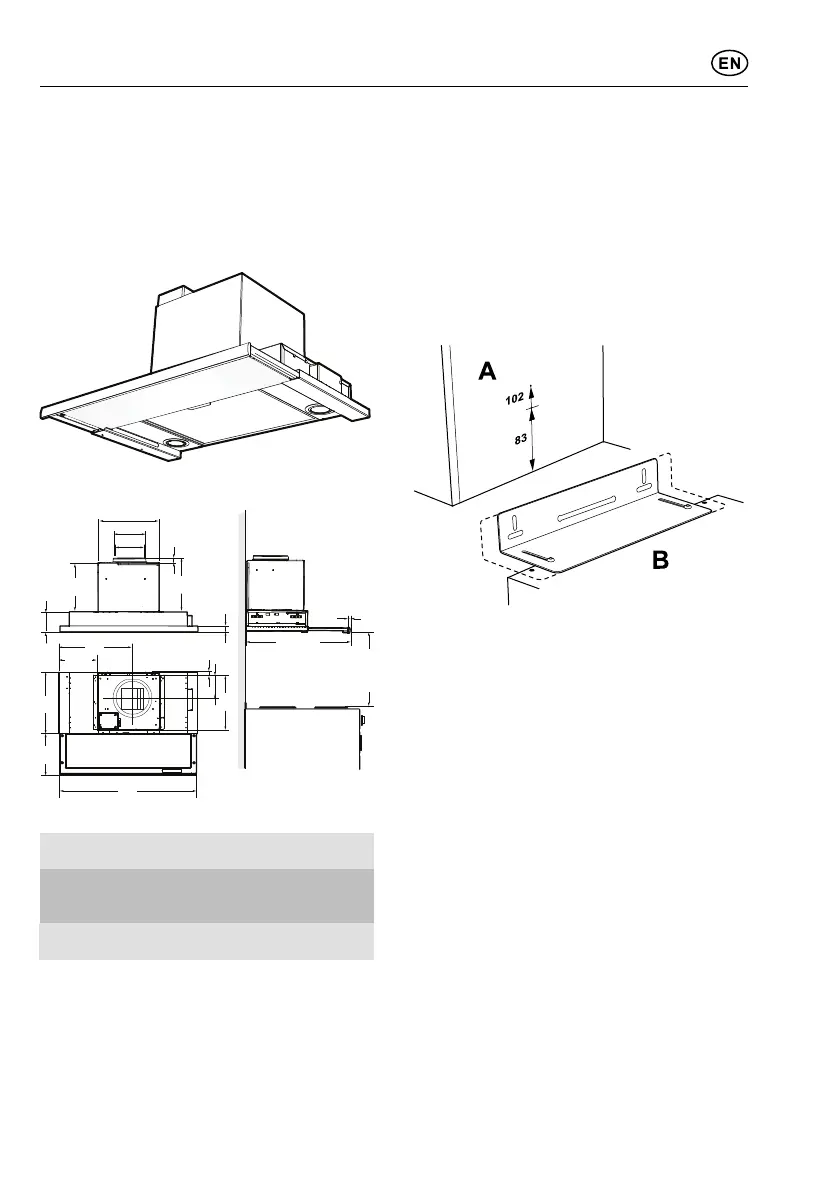

Fig. 1
Measurements see Fig. 1
Electrical
installation
230 V ~ earthed
Lighting LED 2 x 2 W
INSTALLATION
Fixing parts, screws for mounting, etc. are
supplied with the cooker hood.
Electrical installation
The cooker hood is supplied with a cable
and earthed plug for connection to an ear-
thed socket. The socket should be acces-
sible after installation is complete.
Assembly
Installation between or in cupboards
without bases.
Fig. 2
The cooker hood is installed using
brackets.
Mark out and fasten screws so that they
protrude a few millimetres from both cup-
board sides as illustrated, Fig. 2A. If it is in-
tended to align the underside of the cooker
hood with the underside of the row of cup-
boards, use the upper measurement 102;
see Fig. 2A. The cooker hood brackets are
adjustable to fit various cupboard depths,
Fig. 2B.
12
991.0519.298/D000000006916/180380/2021-10-06
